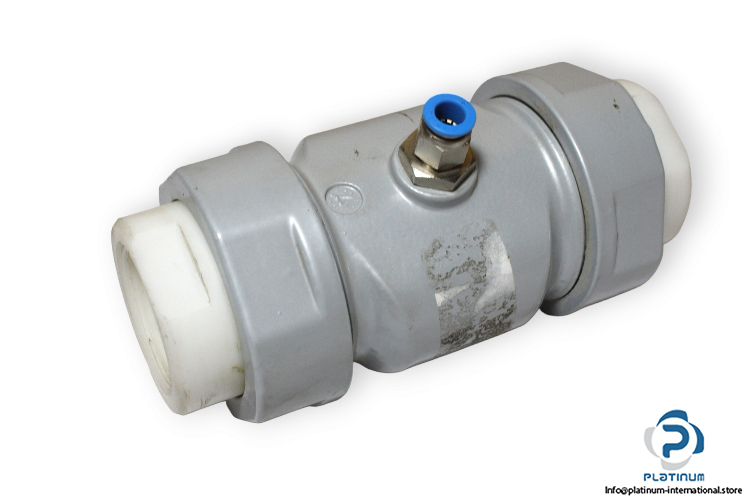

AKO VMF032.03X.70.30LX AIR Operated Pinch Valve
Manufacturer: AKO
Type: Air Operated Pinch Valve

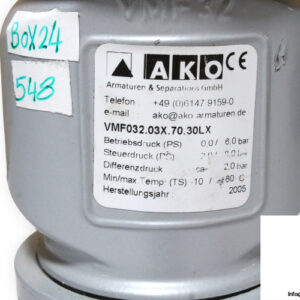

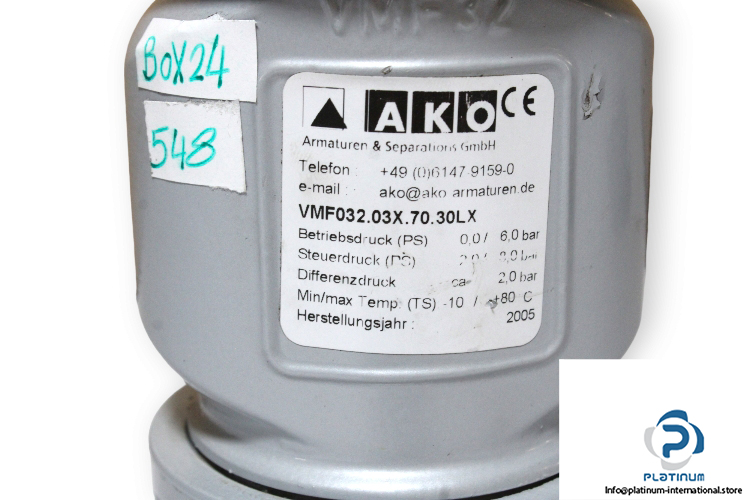

Model: VMF032.03X.70.30LX
Body material: Aluminium
Connection material: POM
Fluid: Air
Max. operating pressure: 6.00 bar
Max. control pressure: 8.00 bar
Min. differential pressure: 2.00 bar
Max. operating temperature: 80.00 ° C
Nominal diameter: 32 mm
Control air connection: Internal thread G 1/4″
Width: 80 mm
Height: 85 mm
Length: 170 mm
