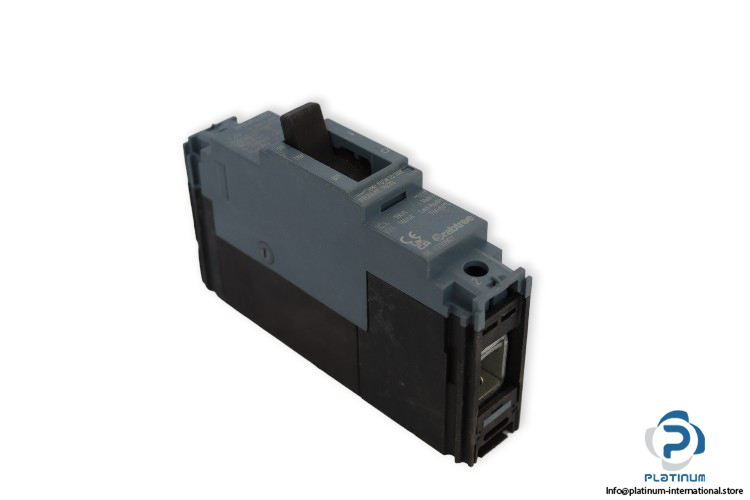

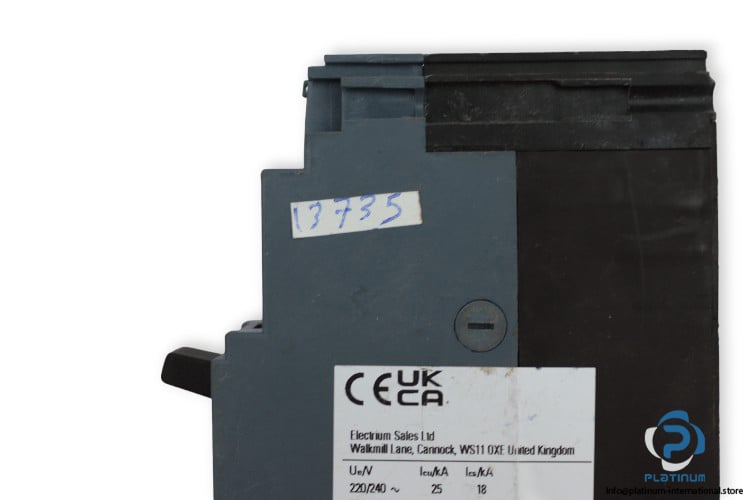

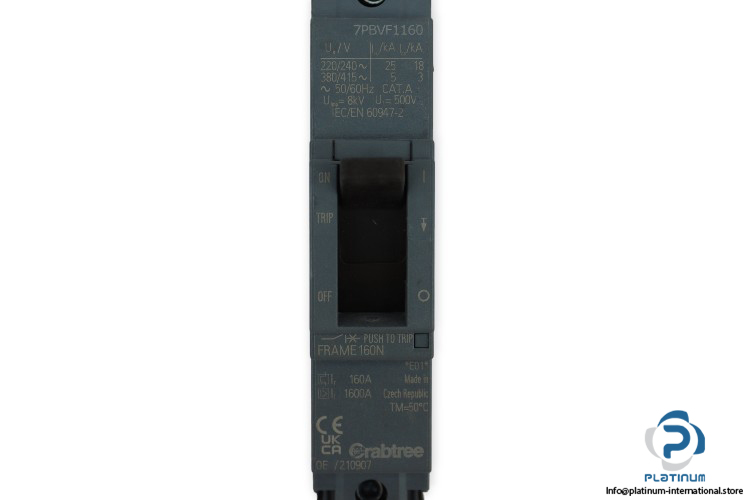

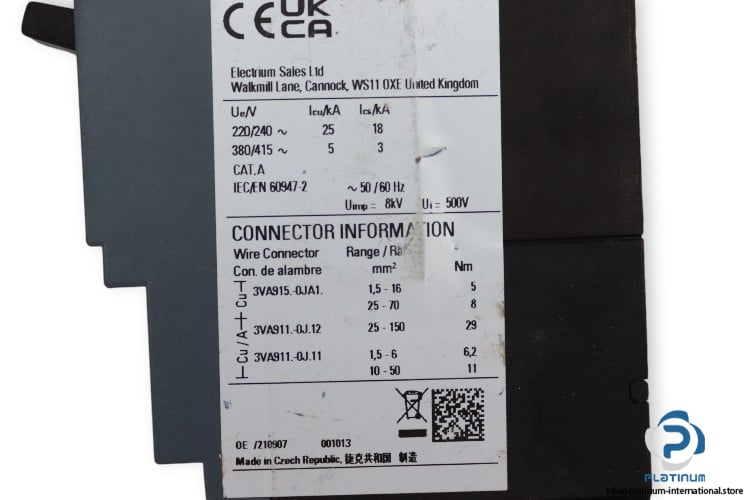

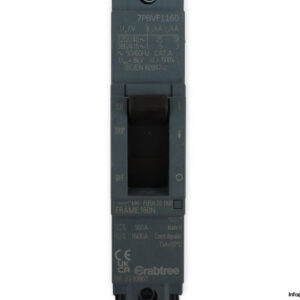

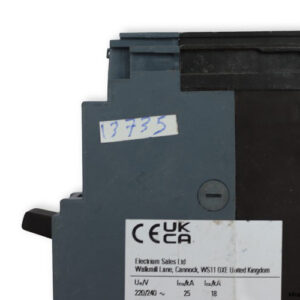

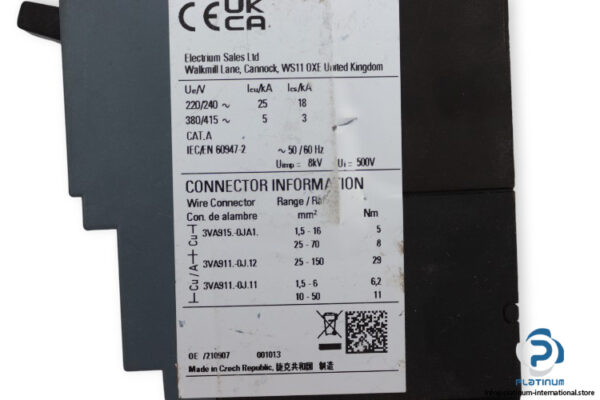

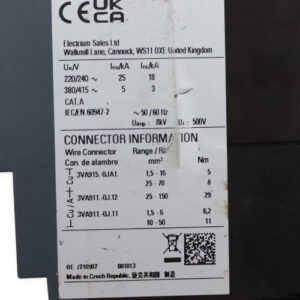

Crabtree 7PBVF1160 Molded Case Circuit Breaker

Manufacturer: CRABTREE
Type: Molded Case Circuit Breaker
Model: 7PBVF1160

Rated Voltage: 220 … 415 V AC
Rated Current: 160 A
Frequency: 50 … 60 Hz
Rated Insulation Voltage: 500 V
Rated Impulse Voltage (Uimp): 8 kV
Rated Service Short-Circuit Breaking Capacity (Ics):
220 / 240 V AC: 18 kA
380 / 415 V AC: 3 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
220 / 240 V AC: 25 kA
380 / 415 V AC: 5 kA
Poles No.: 1-Pole
Protection Class: IP40
Temperature: -5 … 40 °C
Dimensions: 130 x 25 x 70 mm
