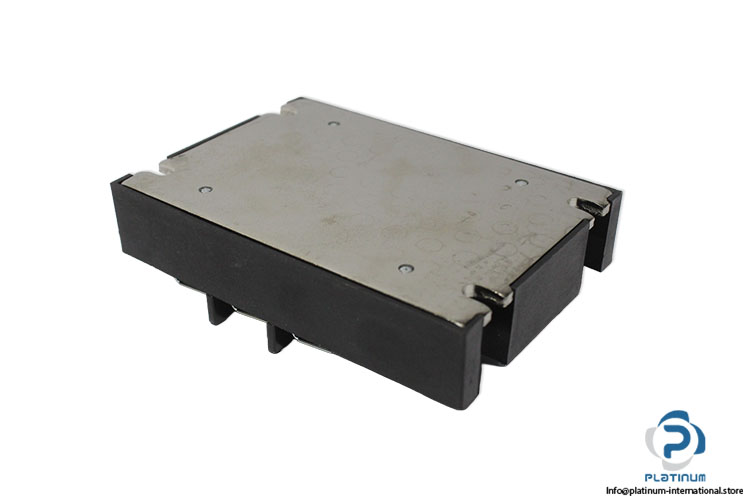

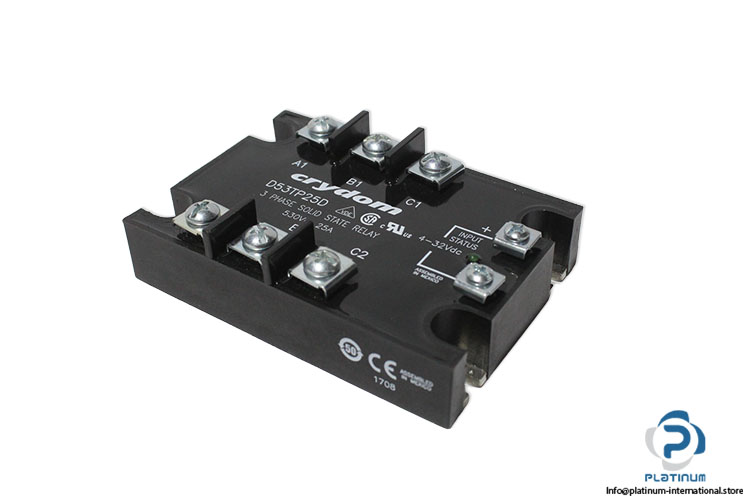

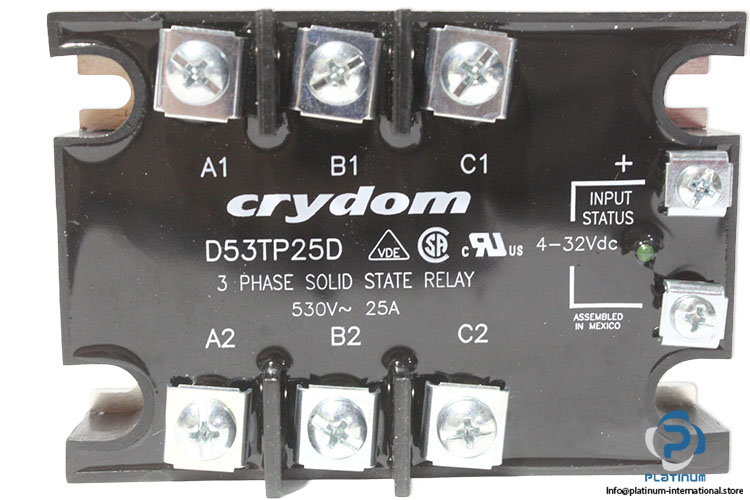

Crydom D53TP25D Solid State Relay
New
In stock4 unitsReady to ship
Solid State Relay The CRYDOM D53TP25D is a 25 A solid state relay from the 53TP Series featuring a 4-32 VDC control input, 48-530 V operating voltage, 4000 Vrms dielectric strength, and fast switching performance. Designed for reliable industrial automation, heating, and power control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 184-5983 |
| Series | 53TP |
| Code | 1708 |
| Control Voltage | 4-32 VDC |
| Operating Voltage | 48-530V |
| Turn-On Voltage | min.4.0 VDC |
| Turn-Off Voltage | 1.0 VDC |
| Current | 25 A |
| Power | max. 0,5W |
| Turn-On/Off Time | max. 1/2 Cycle |
| Frequency | 50 to 60 Hz |
| Capacitance, Input/Output | max. 8 pF |
| Dielectric Strength, Input/Output/Base | 4000 Vrms |
| Ambient Temperature | -40 to 80ºC |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093384 |
| Weight | 0,32 |
