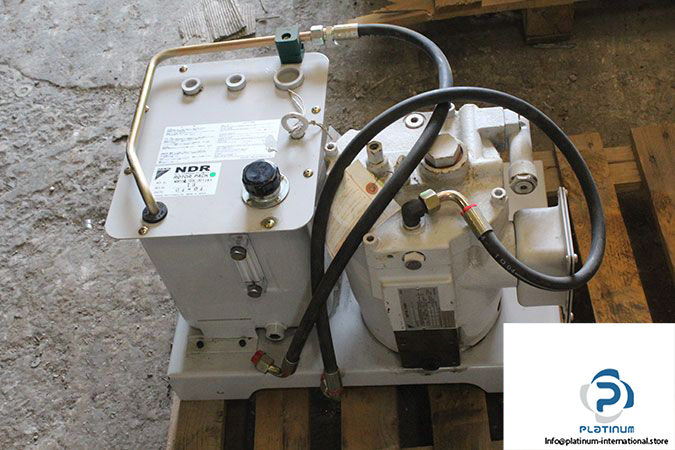

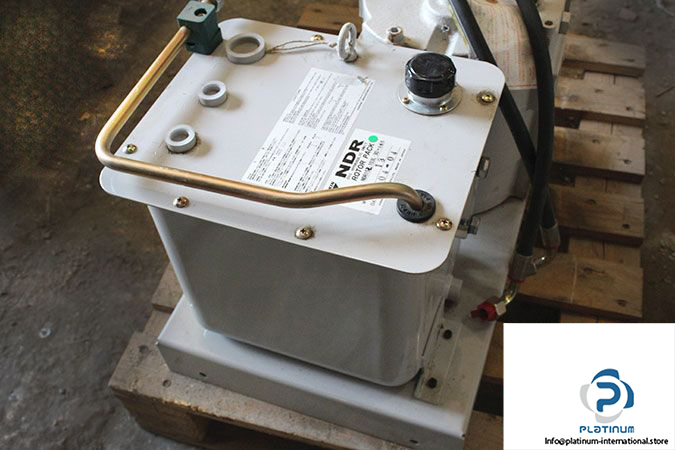

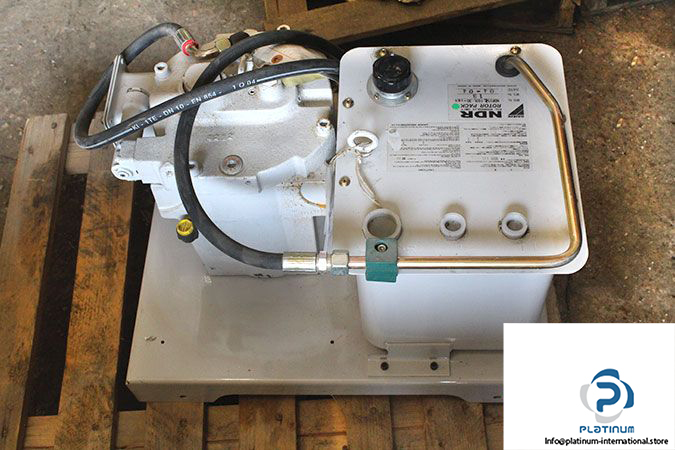

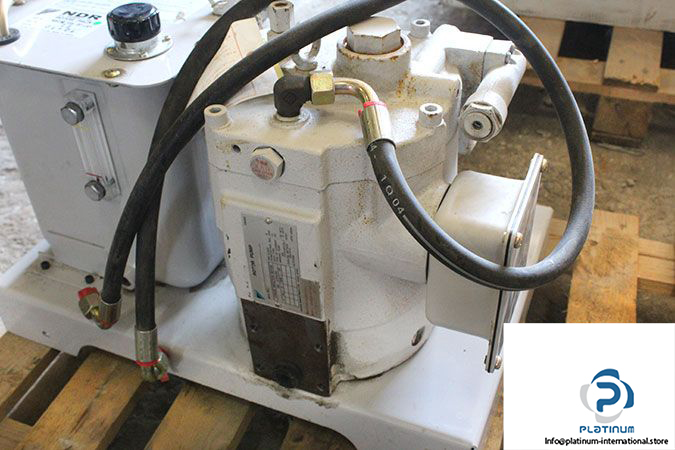

Daikin NDR151-103L-30-163 Rotor Pack

Manufacturer: DAIKIN

Type: Rotor Pack Horizontal Type

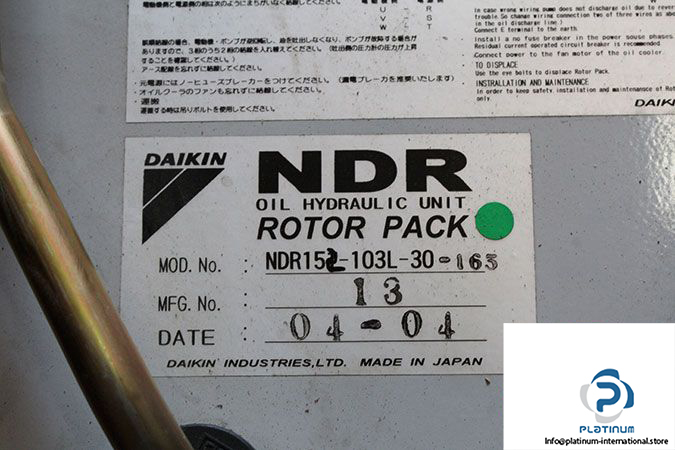

Model: NDR151-103L-30-163

Compact design:

Minimum size design for horizontal model make mounting design easier.

High reliability:

The fully enclosed structure with no shaft protruding from the casing eliminates the possibility of oil leakage without using an oil seal.

Pump Capacity: 14.8 cm3 /rev

Maximum operating pressure: 70 bar

Tank Capacity: 10 L

Motor capacity: 2.2 kw

Pack configuration: Horizontal Type

Oil Temperature: 0 …. 60°C

Viscosity Range: 15 …. 400 mm² /s

RPM: 1420 min^-1

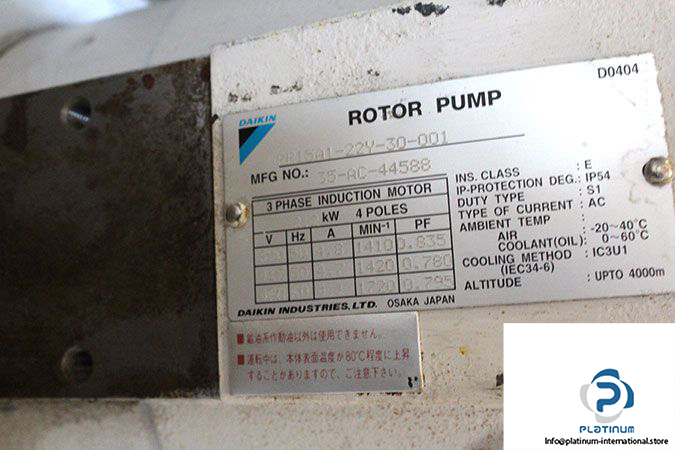

Attachment: DAIKIN  RP15A1-22Y-30-001 ROTOR PUMP



Manufacturer: DAIKIN

Type: ROTOR PUMP

Model: RP15A1-22Y-30-001

Weight: 59.65 kg
