Danaher DBL2H00040-03M-000-S40 Servo Motor
Used
In stock1 unitReady to ship
servo motor
The DANAHER DBL2H00040-03M-000-S40 Servo Motor provides precise control with a 0.40 Nm stall torque, 6000 rpm rated speed, and high IP 64 protection for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

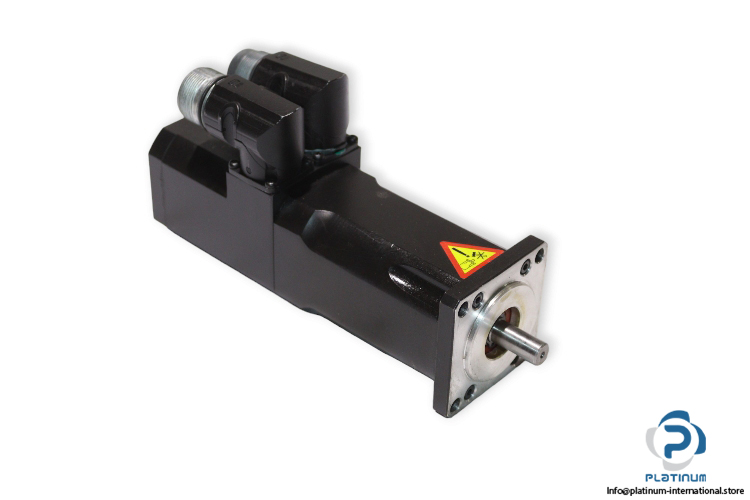

DANAHER DBL2H00040-03M-000-S40 SERVO MOTOR
The DANAHER DBL2H00040-03M-000-S40 Servo Motor is designed to deliver high performance in demanding industrial applications. With precise control, a rated speed of 6000 rpm, and a rated power of 0.22 kW, this motor provides efficient and reliable motion. Its advanced encoder multiturn feedback ensures excellent position control and high accuracy.
Manufacturer: DANAHER
Type: SERVO MOTOR
Model: DBL2H00040-03M-000-S40
ID No.: 103028

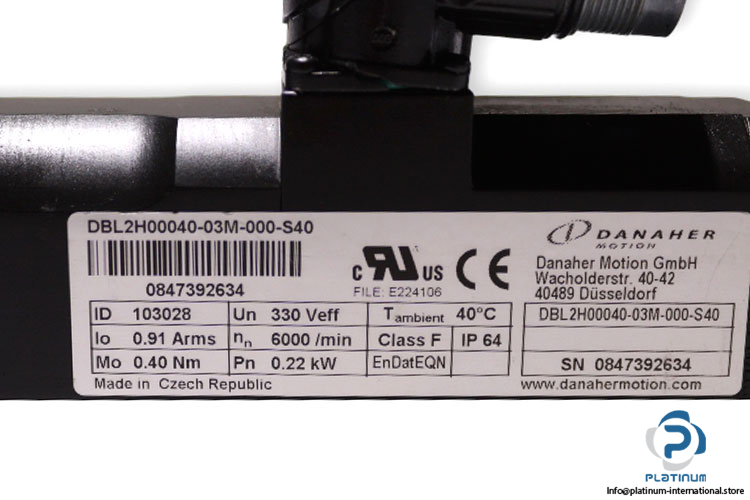

Technical Specifications
- Flange Size: 55 mm
- Stall Current: 0.91 A
- Stall Torque: 0.40 Nm
- Rated Voltage: 330 VDC
- Rated Power: 0.22 kW
- Rated Speed: 6000 rpm
- Rotor Inertia: 0.08 kg.cm²
- Winding Resistance: 26 ohm
- Environmental Temperature: 40 °C
- Feedback: Encoder multiturn (EnDat EQN)
- Thermal Class: F
- Protection Class: IP 64
