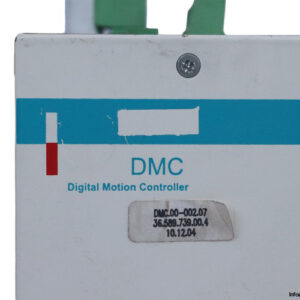

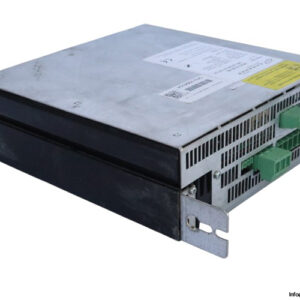

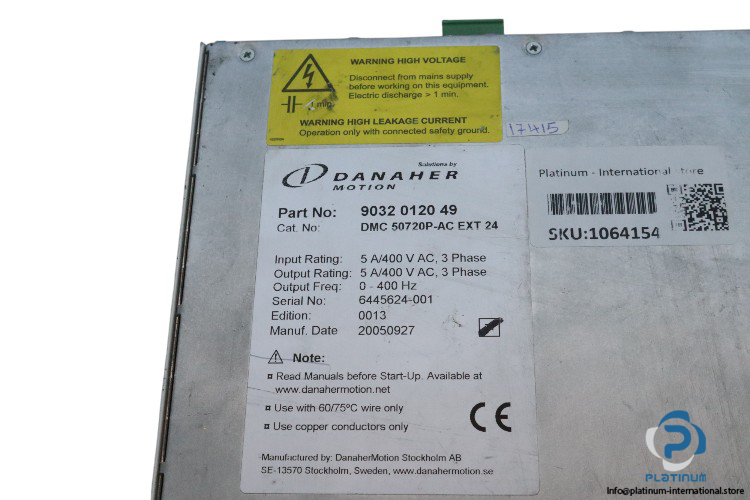

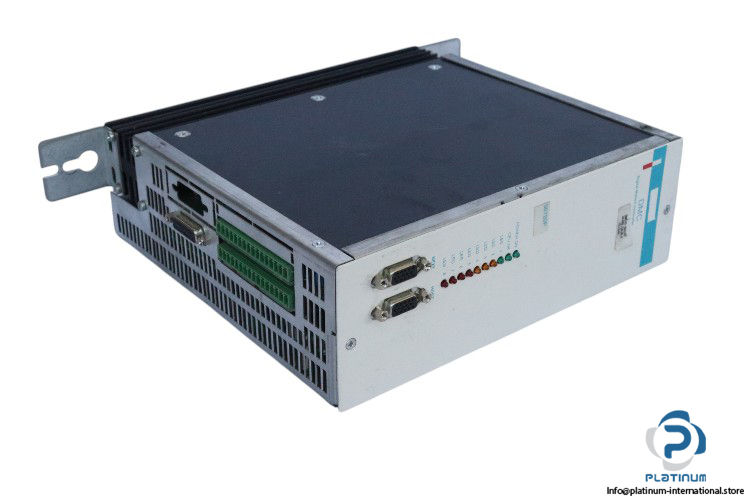

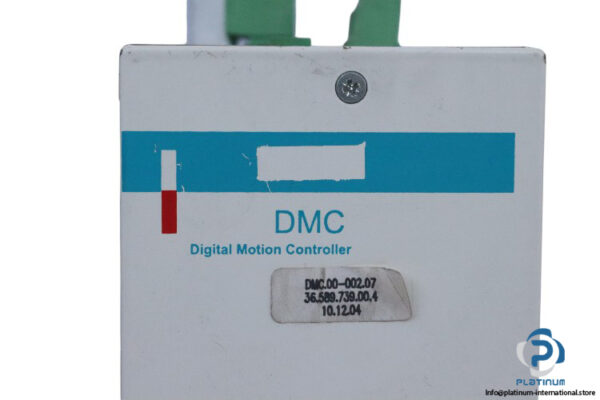

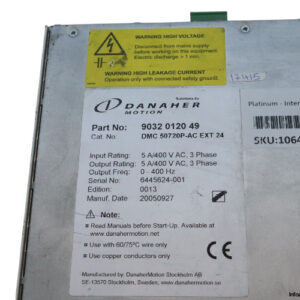

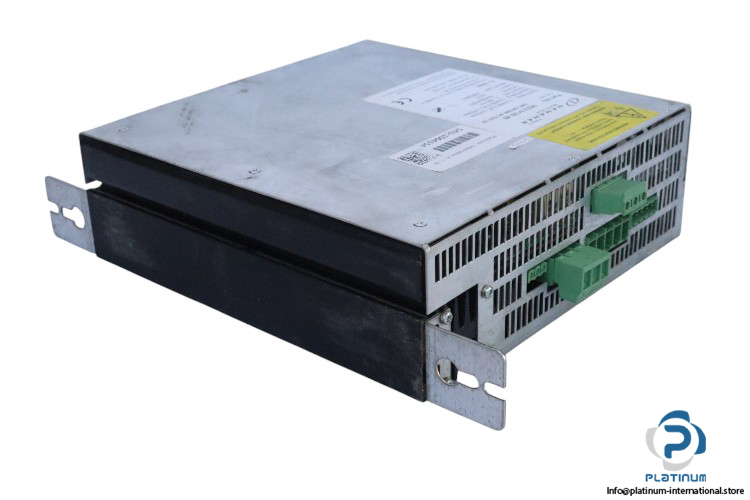

Danaher Motion 9032 0120 49 Digital Motion Controller
Used
In stock2 unitsReady to ship
888,88$
Danaher Motion Digital Motion Controller DMC 50720P-AC EXT 24 with 3-phase input/output, 570 V DC bus, and continuous output power of 3.4 kW at 40°C. Designed for efficient motor control in industrial environments.
20243-phase.3/440050720P-AC570ACAdjustableControlControllerCurrentDanaherdcDigitalDmcEXTInductanceIndustrialIPkWMotionmotorOutputPeakProtectionV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Danaher Motion Digital Motion Controller DMC 50720P-AC EXT 24
Danaher Motion Digital Motion Controller DMC 50720P-AC EXT 24 is a high-performance motion control solution designed for precise and efficient control of 3-phase motors. Below are the key technical specifications:
- Manufacturer: Danaher Motion
- Type: Digital Motion Controller/DMC
- Model: DMC 50720P-AC EXT 24
- Part No.1: 9032012049
- Part No.2: DMC.00-002.07
- Part No.3: 36.589.739.00.4
Technical Data:
- Input Voltage: 3 phase/ 400 V AC
- Output Voltage: 3 phase/ 400 V AC
- DC Bus Voltage: 570 V DC
- Input, Output Current: 5 A
- Shunt Regulation On: 675 to 700 V DC
- Shutdown DC Bus Voltage: 700 to 725 V DC
- Continuous Current (A DC): 7 A at 40°C
- Continuous Current (Arms): 4.5 A at 40°C
- Peak Current: 20 A
- Power Loss: 90 W
- Continuous Output Power: 3.4 kW at 40°C
- Min Motor Inductance: 8 mH
- Speed Range: 1 to 9000 RPM
- Output Frequency: 0 to 400 Hz
- Ambient Temperature: 0 to 60°C
- Protection Degree: IP 20
- Dimensions: 234 x 76 x 227 mm
