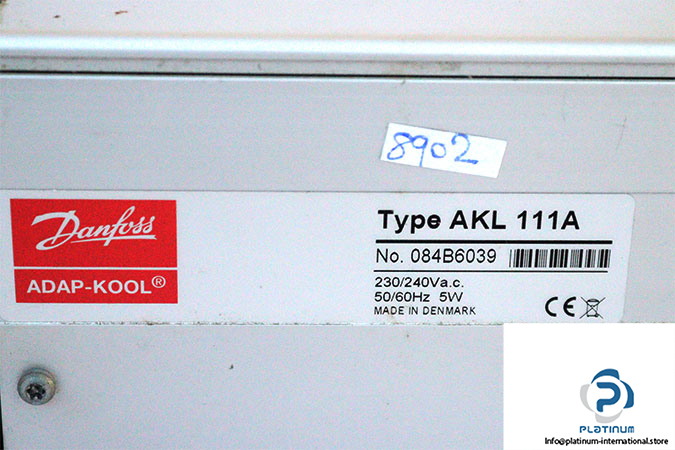

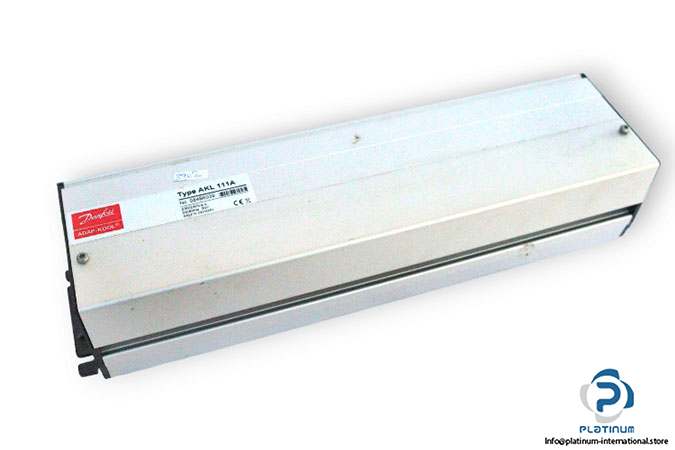

Danfoss AKL 111A Monitoring Unit

Manufacture: Danfoss
Type: Monitoring unit
Model: AKL 111A
Code No.: 084B6039

Used: for refrigerating plant
Supply voltage: 230/240 V AC
Frequency: 50/60 Hz
Power consumption: 5 VA
Operation:
Control panel: AKA 21
PC System software: AKM / AK Monitor
Inputs: Temperature sensors (8): Pt 1000 ohm (-70 … +160°C)
No. of analog input: 4 (230 V AC)
No. of Pulse counter: 2
Outputs: 1 Alarm relay (SPST) (12 … 253 V AC,1.2 A,1.2 W)
Data communication: Hardware RS 485, Software DANBUSS
Ambient temperature During operation: -20 … +55°C
Protection degree: IP 30 (32)
Mounting: On wall / DIN rail
Material: Anodized aluminum
Dimensions: 359 x 93 x 75 mm
