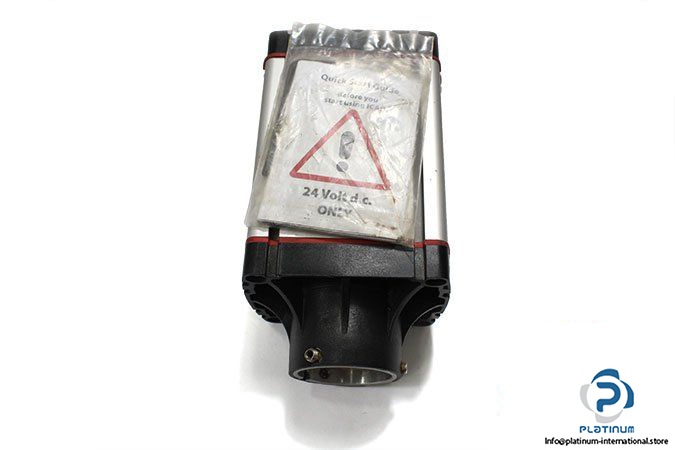

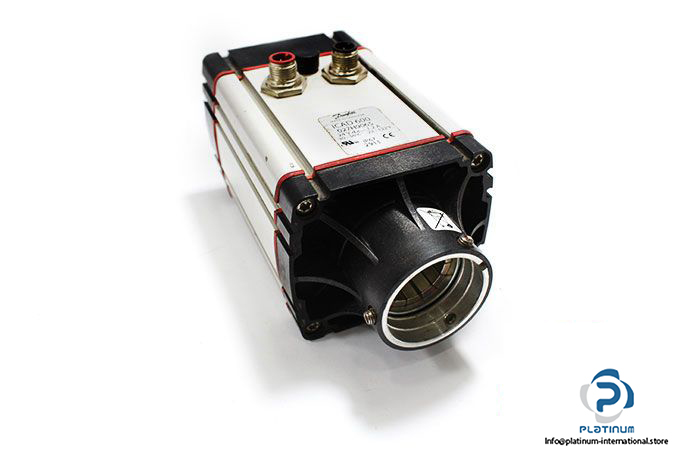

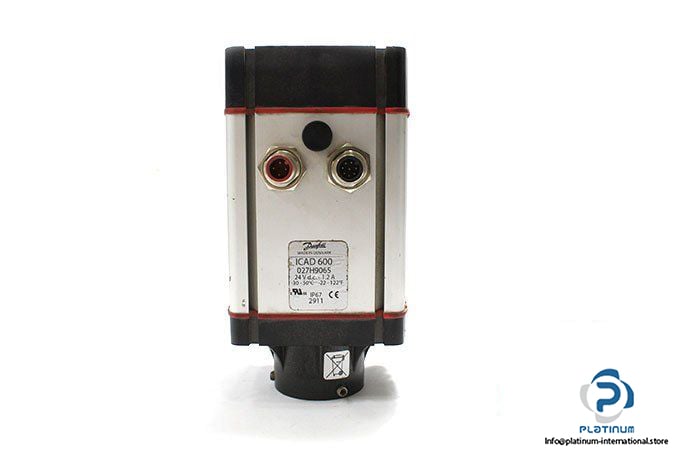

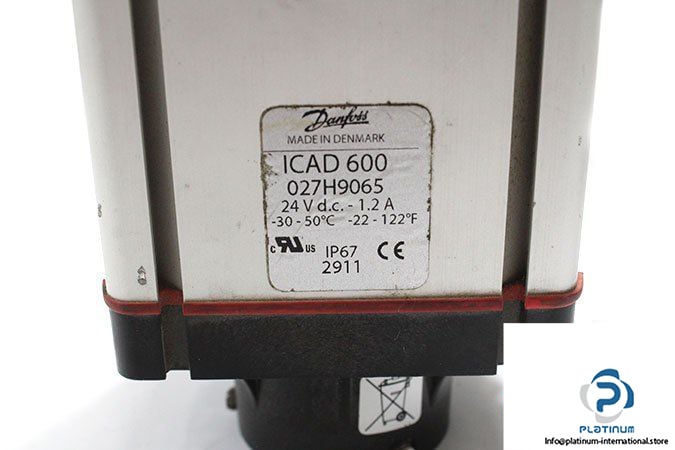

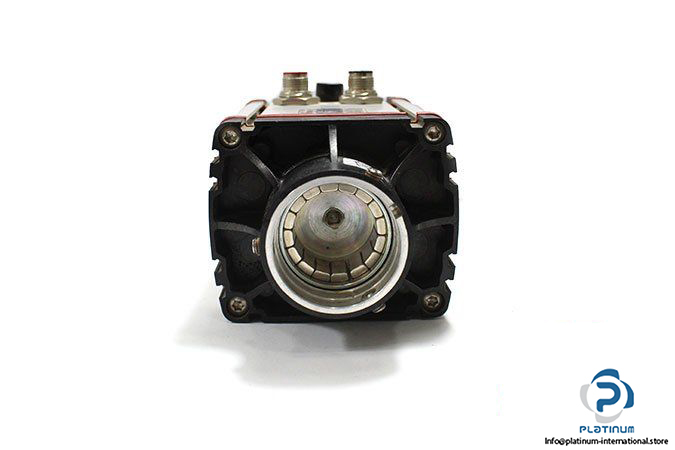

Danfoss Icad 600 Actuator

Manufacturer: DANFOSS

Type: ACTUATOR

Model: ICAD 600

Can Be Used Together With Following Danfoss Valves: ICM 20, ICM 25, ICM 32

Supply voltage: 24 V DC Only

Supply voltage load: 1.2 A

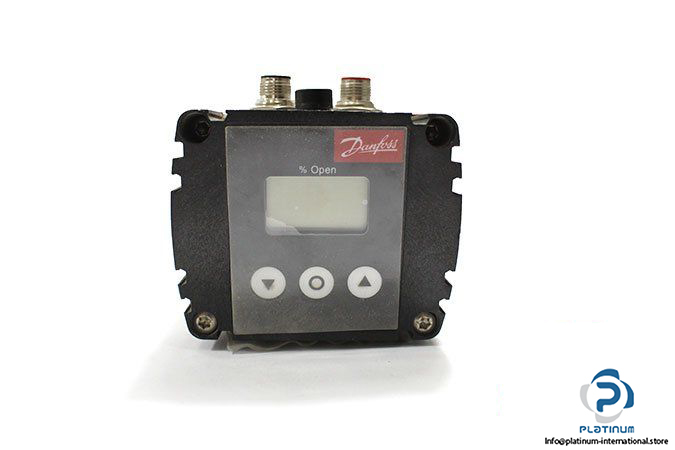

Display type: LCD

Power supply: 4 poled M12 male connector

Housing Material: Aluminium

Top part of ICAD Material: PBT thermo plastic

Analog Output Current Range: 0 – 20 mA

Analog Output Voltage Range: 0 – 10 V DC

Digital Output-Ext supply: 5 – 24 V

Digital Output-Max Load: 50 mA

Protection Class: IP 67

Temperature: -30 … -50 °C
