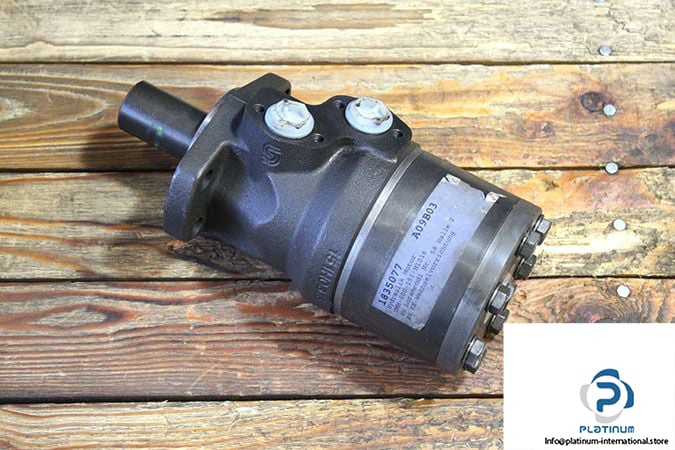

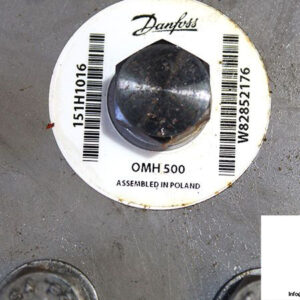

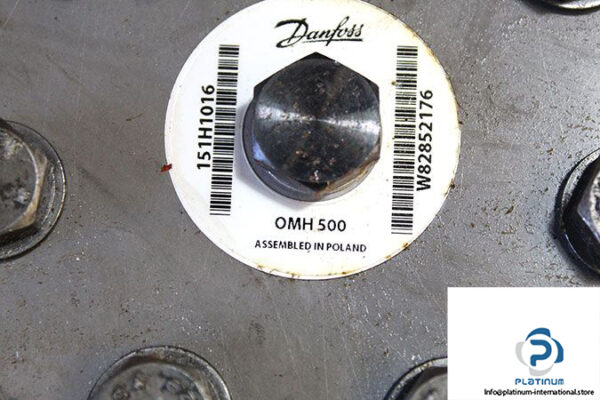

Danfoss OMH 500 Orbital Motor

Manufacturer: Danfoss

Type: Hydraulic Motor Drive

Model: OMH500

Size: 500

Displacement: 470.6 cm³

Max. oil flow: 75 l/min

Max. Pressure: 85 bar

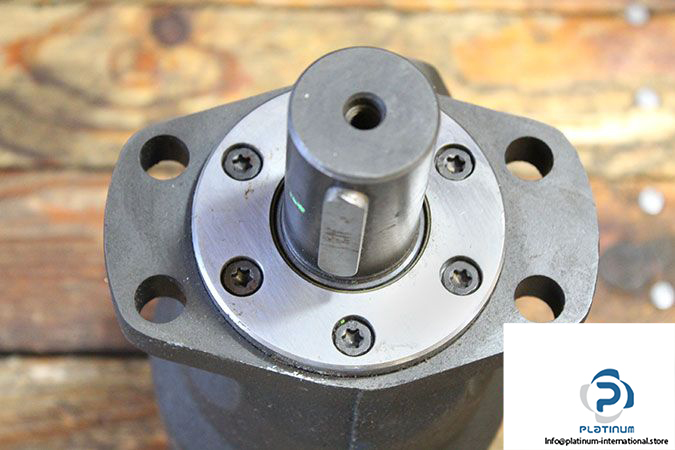

Shaft Diameter: 35 mm

Max. torque: 820 Nm

Max Speed: 155 min^-1

Max. output: 11 KW

Viscosity Range: 10 …. 35 mm²/s

Weight: 13.2 Kg
