Data Logic DPS9000-14D Decoder With Serial Interface Module

Name: DATA LOGIC DPS9000-14D DECODER WITH SERIAL INTERFACE MODULE
SKU: 1074708
Availability: LimitedAvailability

data-logic-dps9000-14d-decoder-with-serial-interface-module(used)

Used

In stock1 unitReady to ship

DECODER WITH SERIAL INTERFACE MODULE

DATA LOGIC DPS9000-14D from the DATAPLUS 9000 family supports optic pens, badge readers, handheld CCD and laser scanners with primary RS232/RS422/RS485 and auxiliary TTL“RS232 interfaces, 110“19,200 baud, and a 2Ã—16 LCD display.

Manufacturer

DATA LOGIC

SKU

1074708

Category

Sensors

Condition

Used

1“10 100 19200 2x16 5 9000 AND Badge Baud Beeper CTS Data Dataplus Decoder Display DLS2000 DPS9000-14D DTR F30 Handhe Interface LCD LED Logic mA Module Optic P10 P51 Pen Reader RS232 RS422 RS485 Serial to TTL VDC With Xoff XON

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

DATA LOGIC DPS9000-14D DECODER WITH SERIAL INTERFACE MODULE

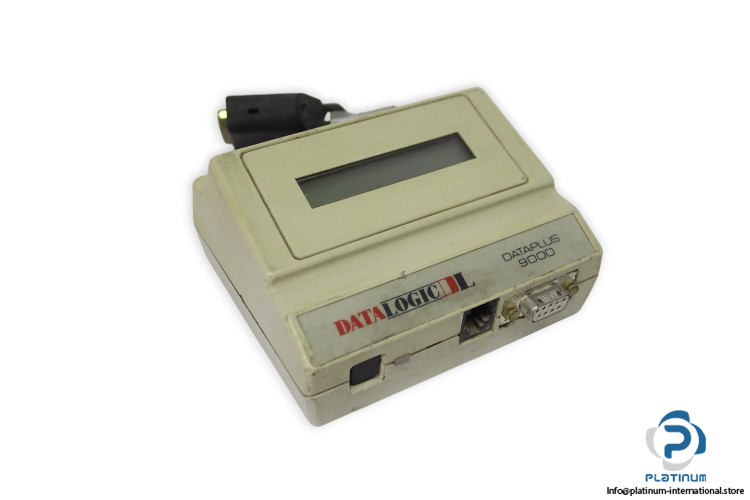

The DATA LOGIC DATAPLUS 9000 DPS9000-14D is a versatile decoder module designed to connect a wide range of readers”optic pens, badge readers, handheld CCD and laser scanners”via robust serial interfaces for dependable data capture in industrial and logistics environments.

Manufacturer: DATA LOGIC

Type: Decoder with serial interface module

Family: DATAPLUS 9000

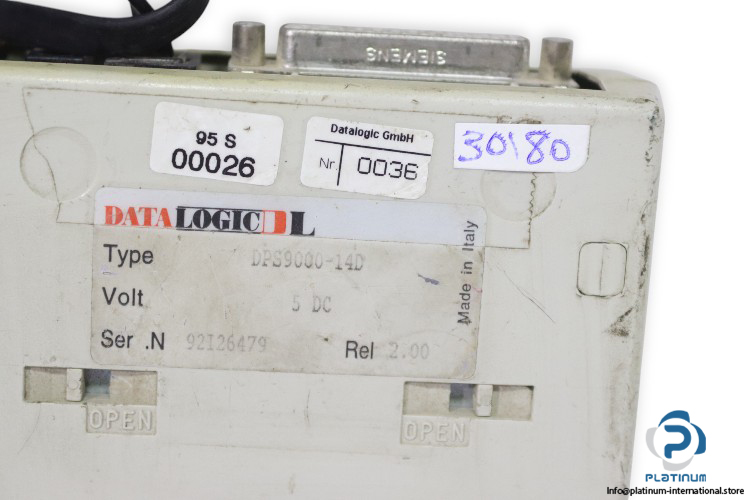

MRN: DPS9000-14D

MANUFACTURER NO; 0036 / 00026

SN: 92126479

Power Supply	+5 Vdc
Power Consumption	100 mA (without readers)
Supported Readers	Optic Pens P10, P51; Badge readers F30, DLS2000; Hand held œCCD readers: DL65/DL80, DLC60XX-M, DLC7070-M; Hand held laser scanners: DL910, DL910LR, DLL501X-M, DLL601X-M; Readers with pen emulation output; Magnetic readers (standard track 1/2/3 ISO 3554 75 bpi)
Interfaces	Primary EIA RS232 / EIA RS422 / EIA RS485; Auxiliary TTL “ EIA RS232
Baud Rate	110 to 19,200 bauds
Transmission Protocol	Hardware (CTS/DTR); Software (XON/XOFF)
Indicators	LED and beeper with variable tone and volume
Display	2 lines by 16 characters LCD (DPS9000-14D)
