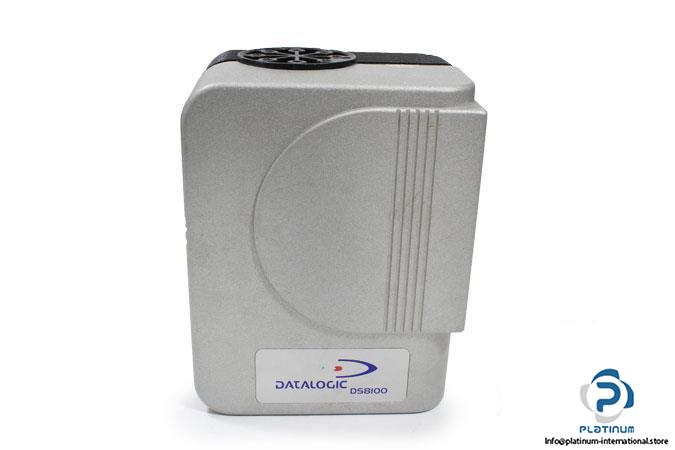

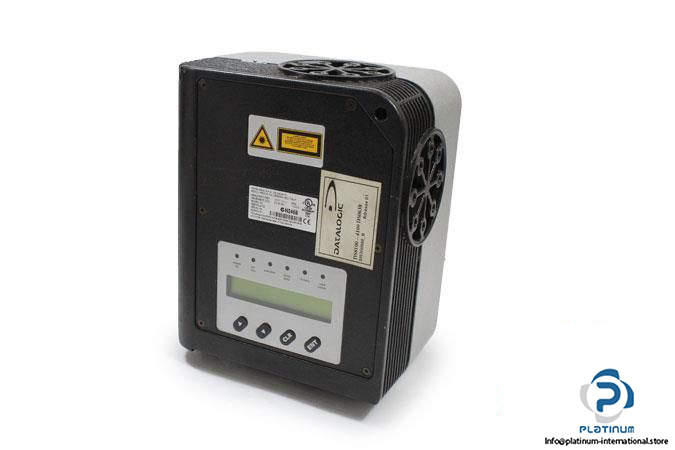

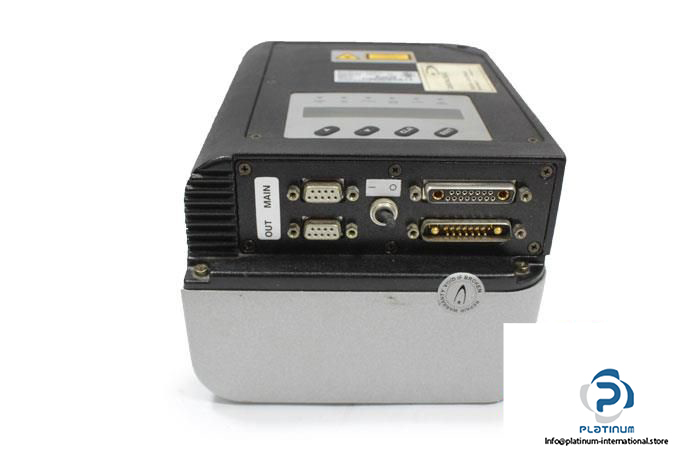

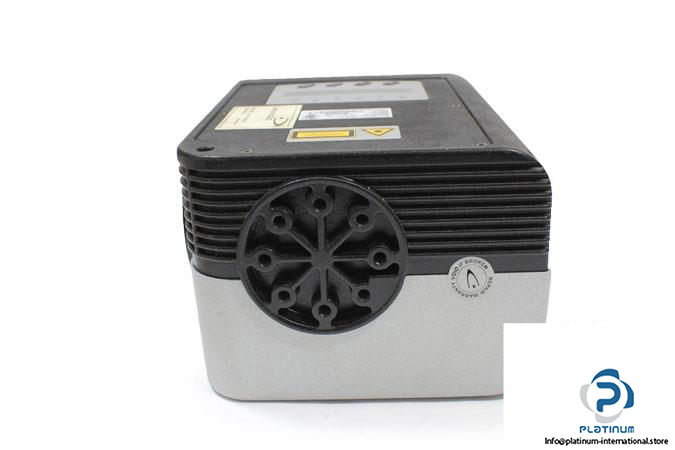

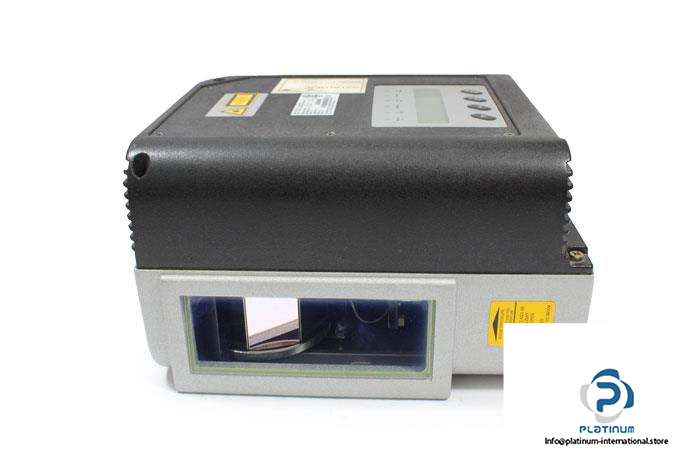

Datalogic DS8100-4100 Laser Scanner

Manufacturer: DATALOGIC

Type: LASER SCANNER

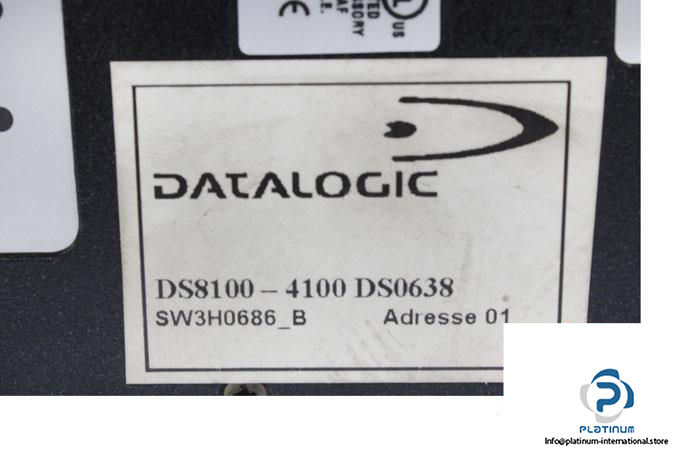

Model: DS8100-4100 DS0638

MRN: SW3H0686_B

Power Supply: 20 … 30 V DC

Operating Current: 1.3 … 0.9 A

Power Consumption: 30 W

Operating Temperature: 0° … +50 °C

Baud Rates: 1200 … 57600

Wave Length: 630 to 680 nm

Vibration Resistance: 1.5 mm; 10 to 55 Hz

Shock Resistance: 30 G; 11 ms

Protection Class: IP 64

Mechanical Dimensions: 215.5 X 170.5 X 126.5 mm

Communication Type: Serial Interface Version

Weight: 5 Kg
