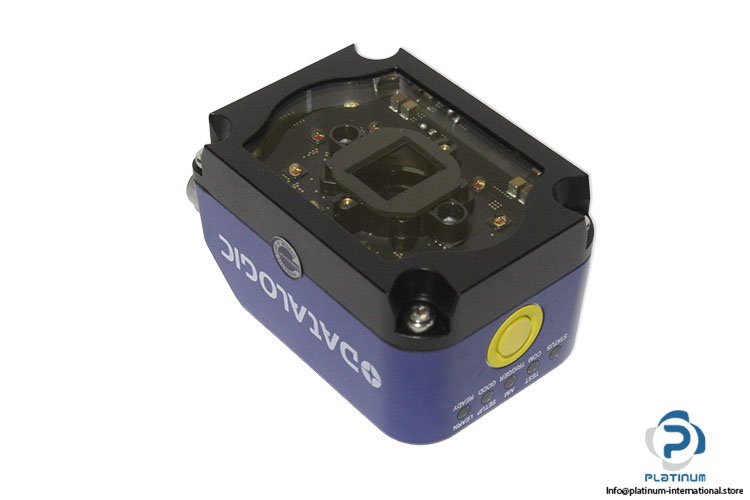

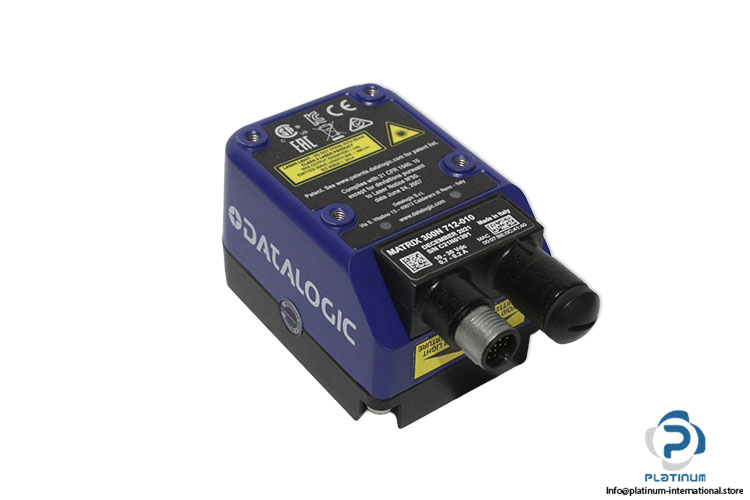

Datalogic Matrix 300N 712-010 Barcode Scanner
New
In stock1 unitReady to ship
Barcode Scanner The Datalogic MATRIX 300N 712-010 2MP is an ultra-compact image-based barcode scanner featuring 2 MP resolution, high-speed reading, industrial Ethernet connectivity, and IP67 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

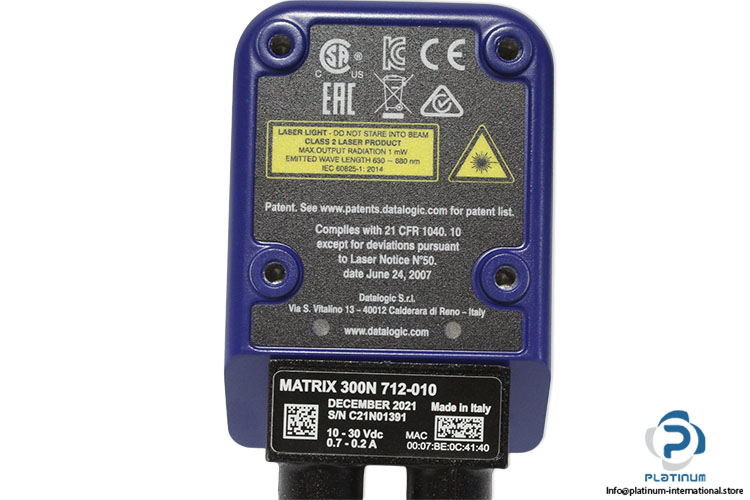

| MNR | Matrix 300N 712-010 2MP LQL-9 R-WD STD |
| series | MATRIX 300N |
| Part No. | 937600167 |
| Serial Number | 021N01391 |
| MAC | 00:07:BE:0C:41:40 |
| Case Material | Aluminium case and plastic protective window cover |
| Operating Temperature Manual Focusing models | 0° to + 50 °C |
| Protection Class | IP67 |
| Power Supply Standard | 10 VDC to 30 VDC / Power over Ethernet: 48 Vdc |
| Power Consumption | 8 W max; 5W typical |
| Sensor Image Resolution | 1280 x 1024 |
| Frame Rate | 60 frames/s |
| Optical Focus Control | Electronic for liquid lens model (LQL-9MM) - Manual for fixed lens model (LNS-6mm, LNS-9mm, LNS-12mm, LNS-16mm) |
| Optical models/viewing angles | 66° (6mm) . 40° (9mm) . 32°(12mm) . 24° (16mm) |
| Aiming System | Dual laser pointer (CDRH/IEC Class II) |
| Com. Interfaces | Ethernet 10/100: Ethernet IP, TCP/IP, UDP, FTP, MODBUS TCP Serial RS232/RS422/RS485 up to 115.2 Kbit/s + Aux RS232 On-board PROFINET-IO |
| Reader Networking | Datalogic ID-NET™ |
| Connectivity Modes | Pass Through, Master/Slave, Ethernet point to point |
| Digital Inputs | 2 opto-isolated. Polarity insensitive and SW Programmable. |
| Digital Outputs | 3 SW programmable PNP/NPN ( short circuit protection ). OUT3 programmable as input - Output current 100 mA max, Saturation voltage < 3 V @ 100 mA |
| Programming Method | Windows™ based SW (DL.CODE™) via Ethernet |

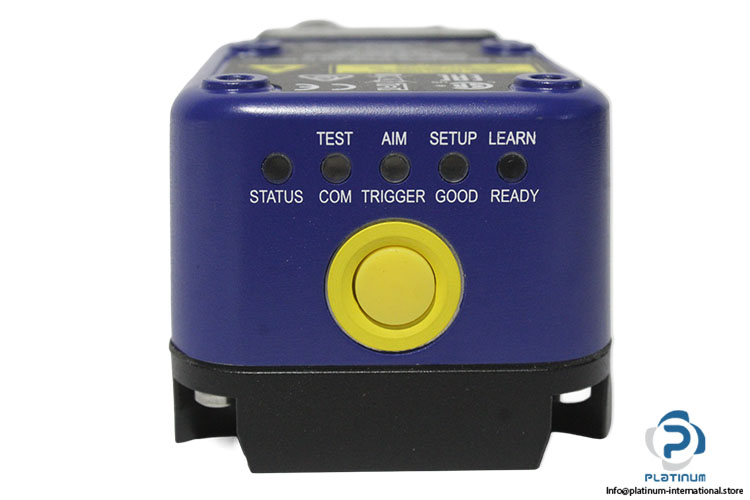

| User Interface | X-PRESS™, Embedded Human Machine Interface - Beeper, Push Button, 7 LEDs (Status, Comm. , Trigger, Good Read, Ready, Power on, Network) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101004 |
| Weight | 0,53 |
