Datalogic S5-5-C35-32 Photoelectric Sensor
New
In stock3 unitsReady to ship
Photoelectric Sensor
Industrial Datalogic S5 series photoelectric sensor with infrared LED detection, 1“35 cm diffuse sensing range, configurable NPN/PNP output, and IP67 protection for reliable automation sensing applications.880nmAutomationConnectorDatalogicDiffuseIndustrialinfraredIP67M12M18NPNPhotoelectricPNPProximityS5SensorSeriesTubular
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

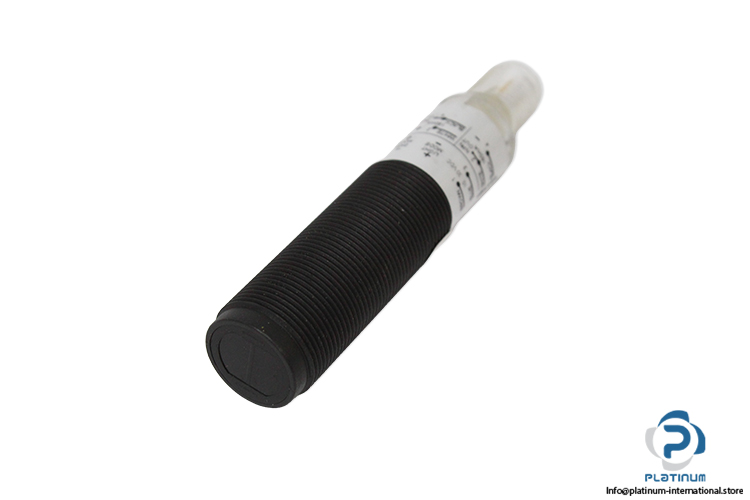

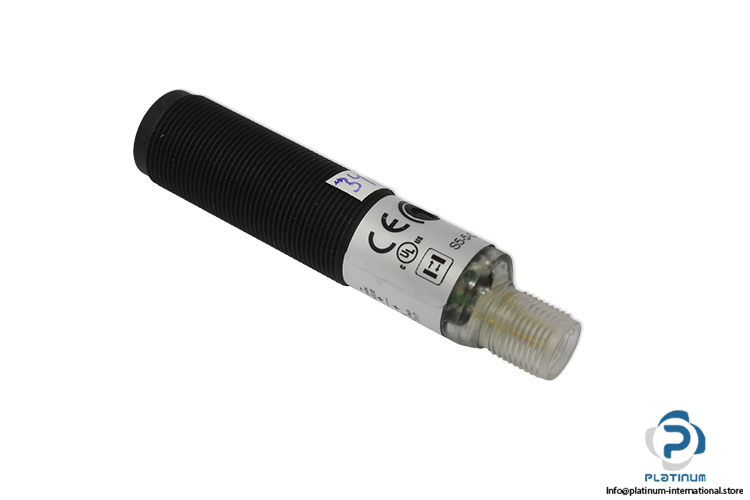

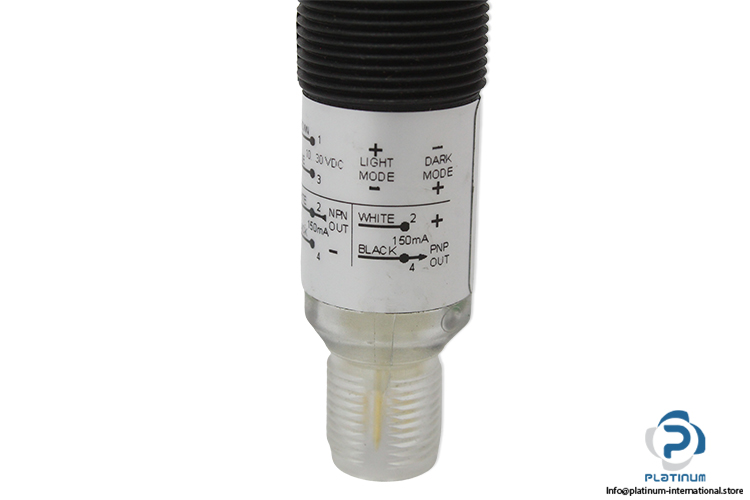

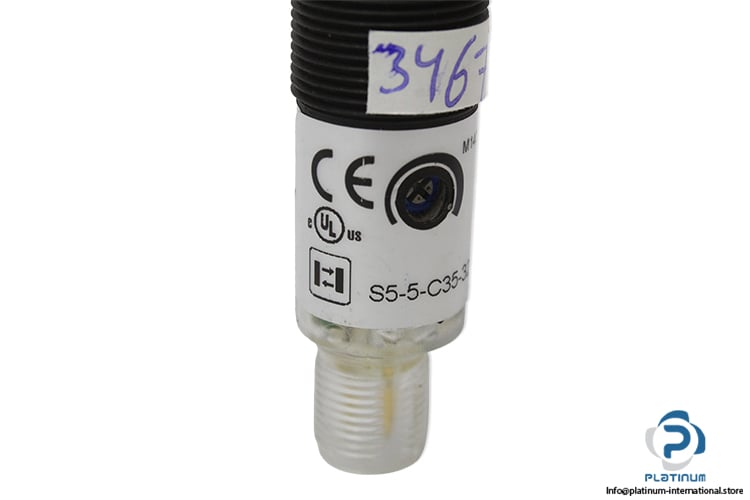

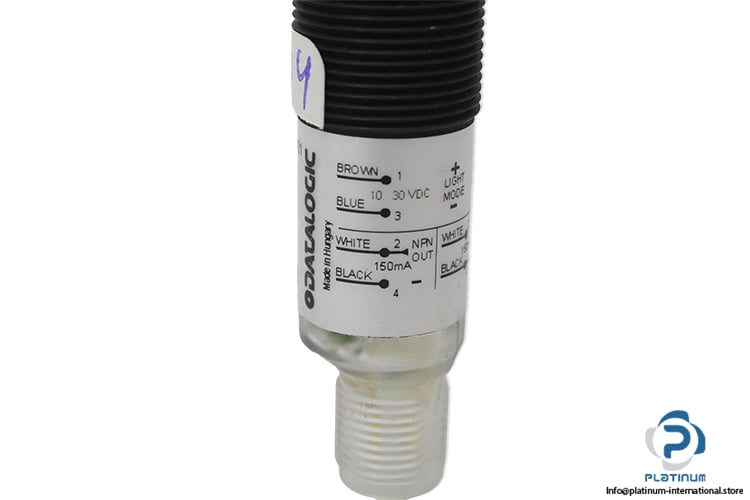

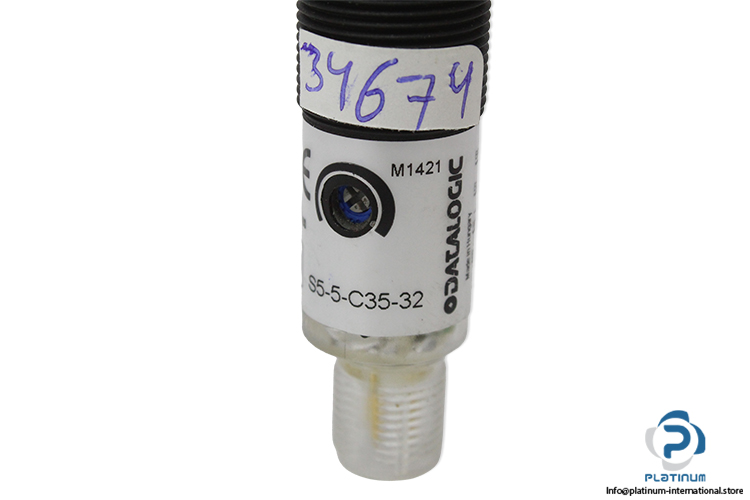

Datalogic S5-5-C35-32 Photoelectric Sensor
The Datalogic S5-5-C35-32 photoelectric sensor from the S5 series is designed for reliable object detection in industrial automation systems. This medium-distance diffuse proximity sensor features infrared LED emission and configurable NPN or PNP output for flexible integration into control systems.
Manufacturer: DATALOGIC
Type: Photoelectric Sensor
Model: S5-5-C35-32
Series: S5
Code: M1421
| Power Supply | 10 ... 30 VDC |
| Consumption | 30 mA Max. |
| Light Emission | Infrared LED 880 nm |
| Diffuse Proximity Operating Distance | 1 ... 35 cm |
| Indicators | Green Stability LED |
| Output Type | NPN Or PNP Configurable |
| Operating Mode | Dark/Light Selectable |
| Saturation Voltage | 2.5 V Max. |
| Output Current | 150 mA Max. |
| Electrical Protection | Class 2 (D.C. Vers.) |
| Mechanical Protection | IP67 |
| Housing Material | ABS |
| Lens Material | PMMA Plastic |
| Operating Temperature | -25 ... +55°C |
| Sensor Type | Medium Distance Diffuse Proximity |
| Housing Design | M18 Plastic Tubular Housing |

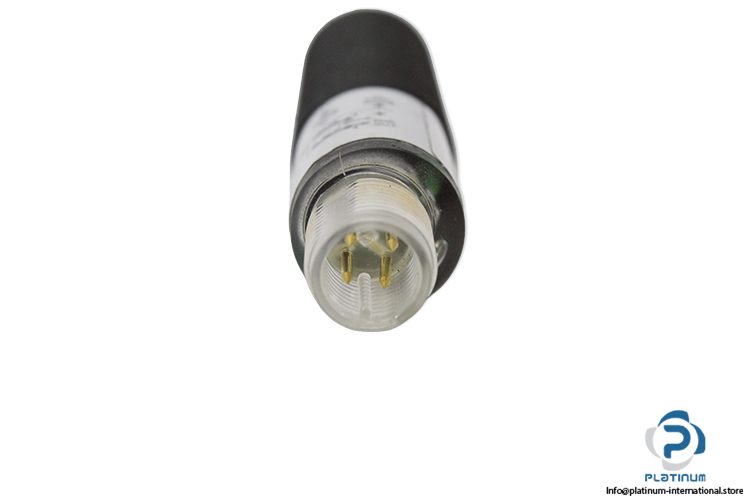

| Connector Type | M12, 4-PIN |
