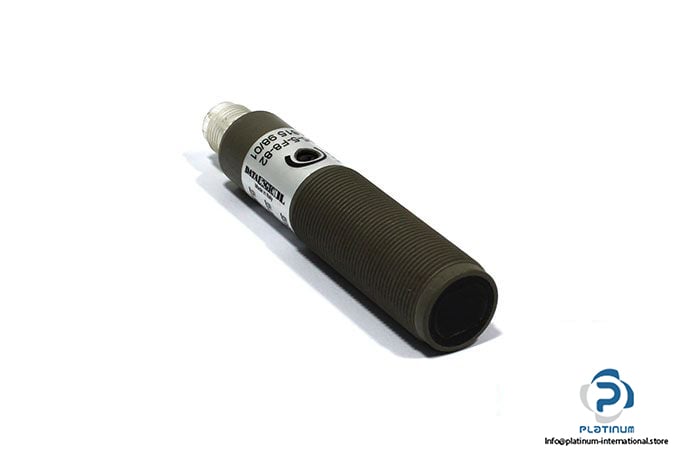

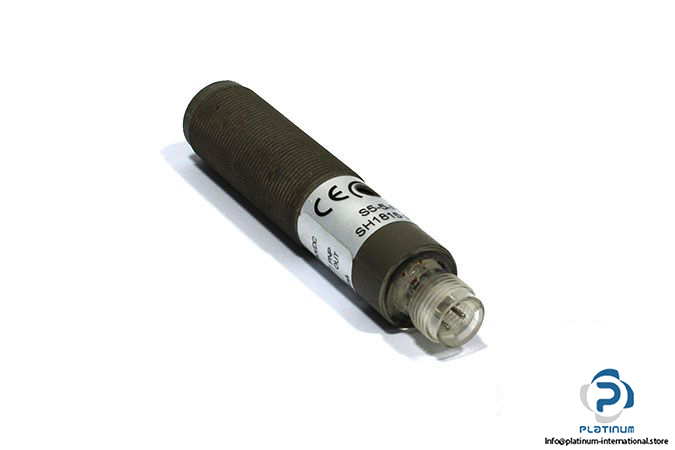

Datalogic S5-5-F8-82 Photoelectric Sensor – Receiver

Manufacturer: DATASENSOR DATALOGIC

Type: PHOTOELECTRIC SENSOR-RECEIVER

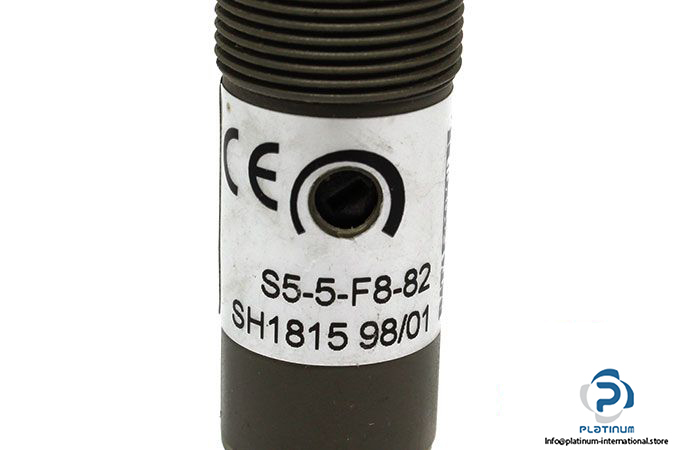

Model: S5-5-F8-82

Part No.: SH1815 98/01

Predecessor: DATASENSOR S5-5-F8-82

Operating distance: 0 … 8 m

Response time: 2 ms

Switching frequency: 250 Hz

Operating Voltage: 10 … 30 V DC

Current Consumption: 30 mA

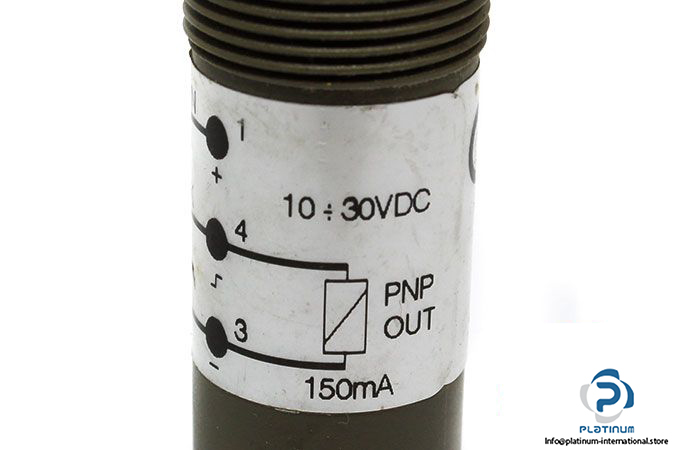

Electrical design: PNP

Adjustment: Potentiometer

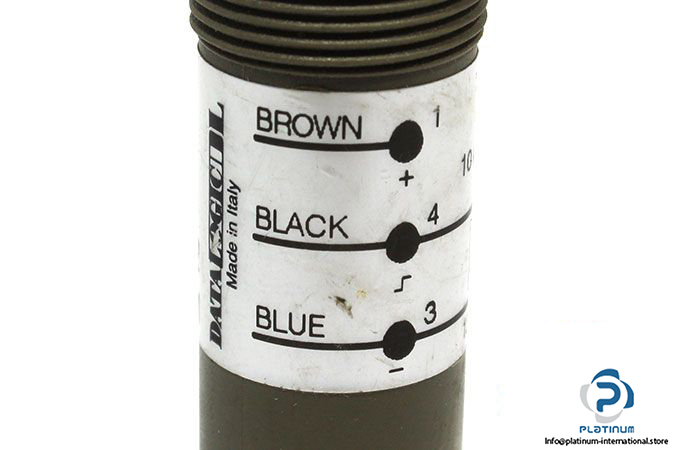

Connector type: M12 Connector, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -15 … 55°C

Dimensions: 18, 89 mm

Housing: Threaded type
