Davies M50 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The DAVIES M50 ISO Cylinder is a high-performance pneumatic actuator with a 50 x 50 mm bore and stroke, double operation mode, and a compact square design for industrial air systems.1/42050ActuatorAirAutomationboreCompressedconnectionCylinderDaviesdiameterDoubleEndframeGIndustrialISOM50malemmOneOperationPneumaticRODsideSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

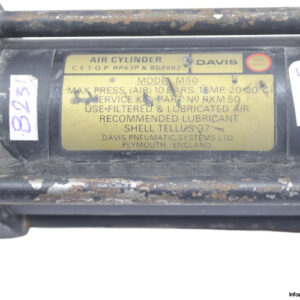

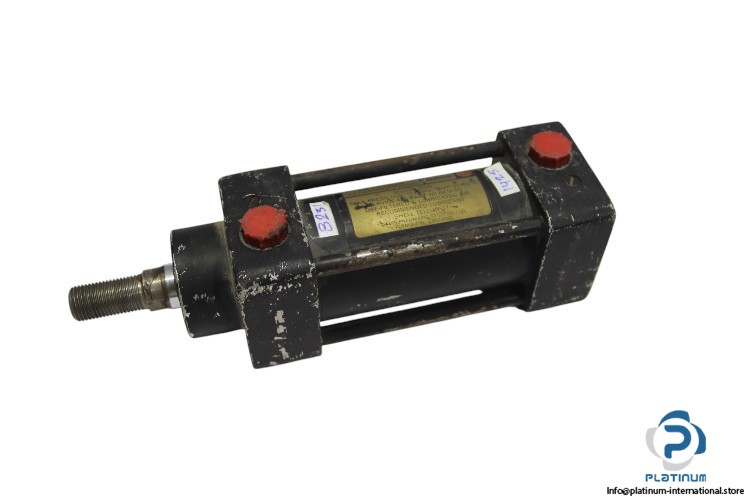

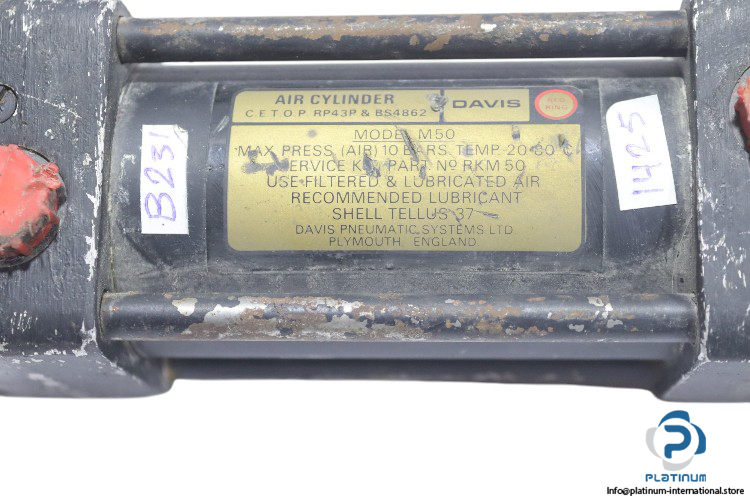

DAVIES M50 ISO Cylinder
The DAVIES M50 ISO Cylinder is a robust pneumatic actuator built for industrial automation applications. Designed to operate with compressed air, it features a square shape, double operation mode, and high-performance construction with a 50 mm bore and stroke.
Manufacturer: DAVIES
Type: ISO Cylinder
Model: M50
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke Length | 50 mm |
| Bore x Stroke | 50 x 50 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 185 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
