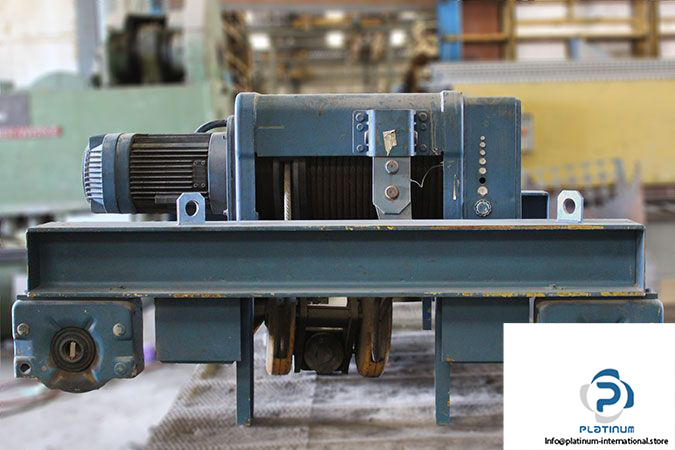

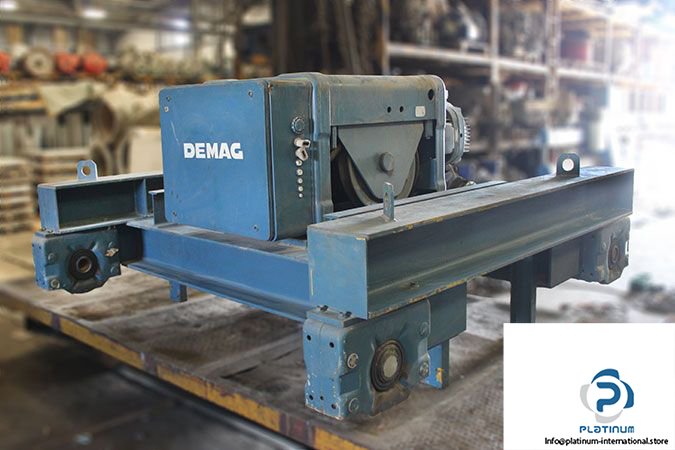

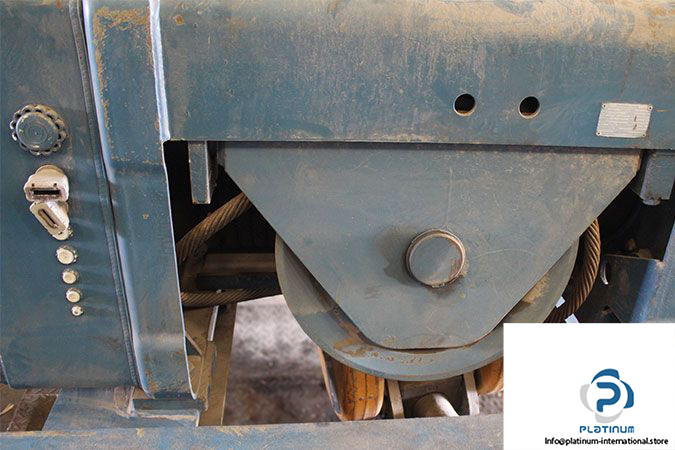

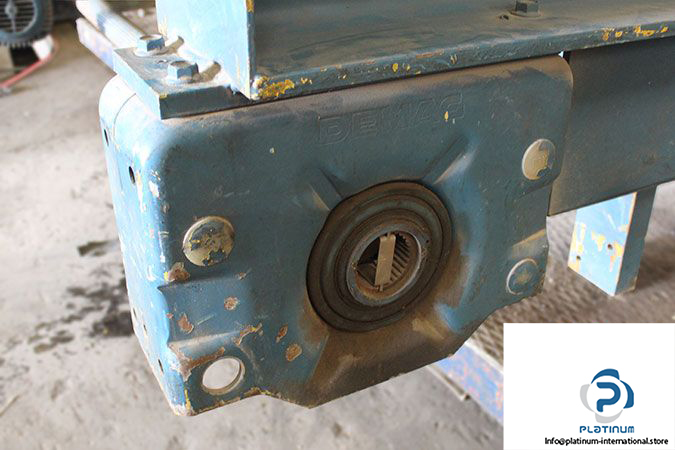

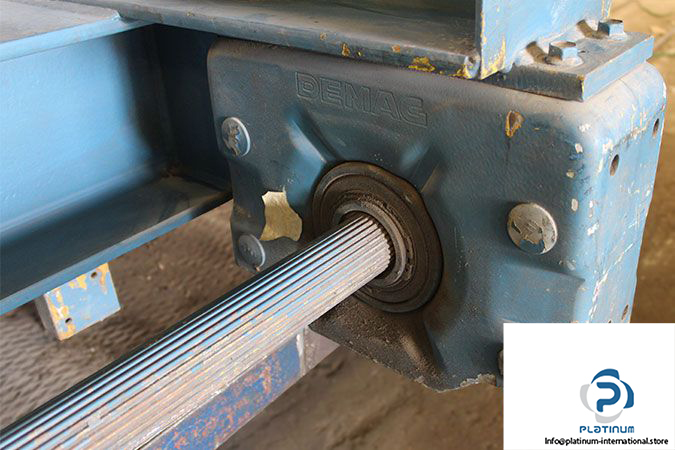

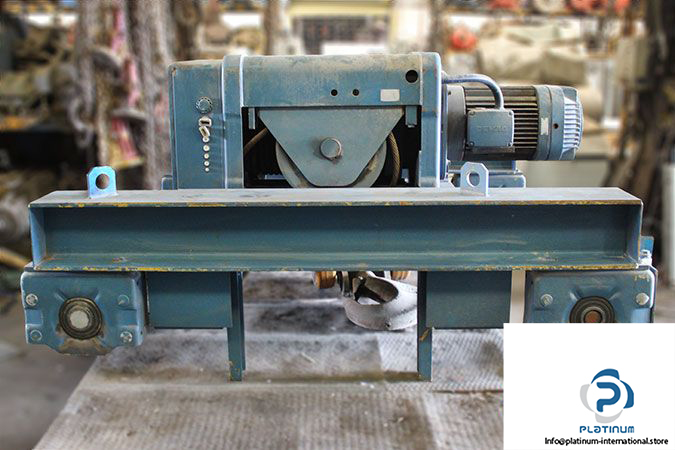

Demag DH2100 H16 Wire Rope Hoist
Manufacturer: Demag Cranes
Type: Wire Rope Hoist
Model: DH 2100 H16

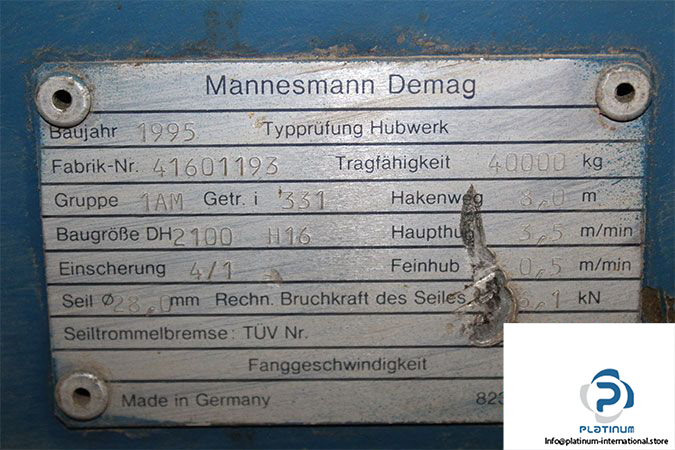

Serial No.: 41601193

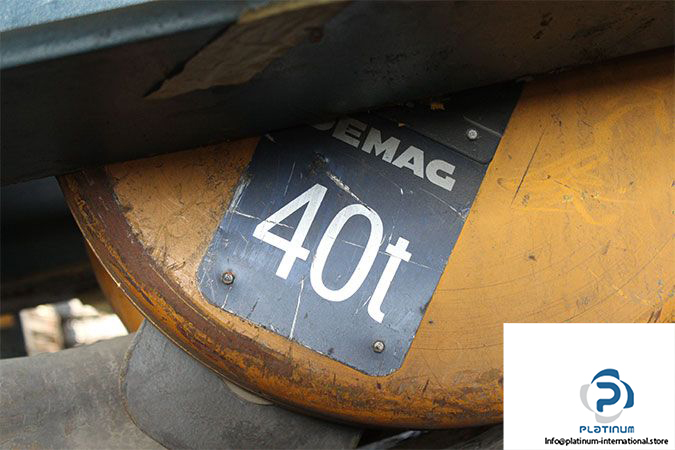

Load Capacity: 40000 kg (40 t)
Lifting Speed
- Main Hub: 5 m/min
- Fine Stroke: 5 m/min
Hook Path: 8.0 m

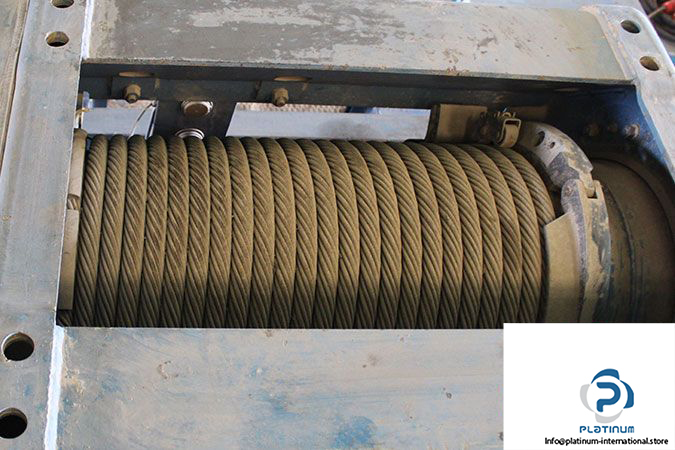

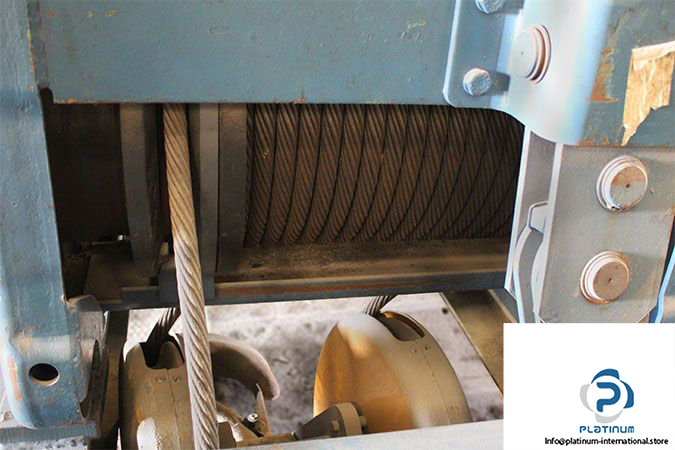

Rope Ø: 28.0 mm
Breaking Strength of The Rope: 6.1 kN

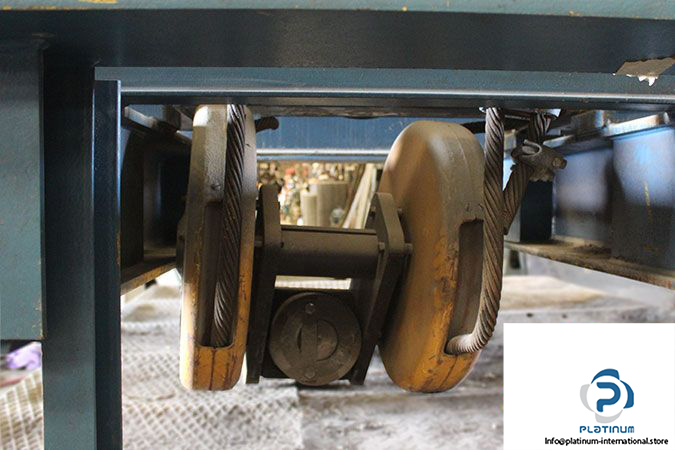

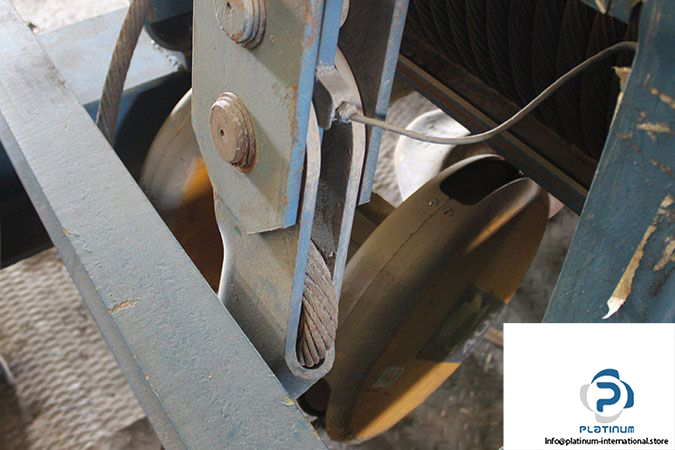

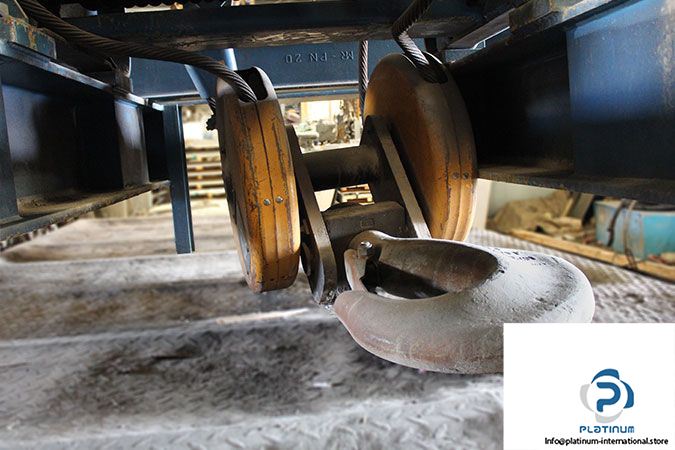

Reeving: 4/1
Engine Group: 1AM

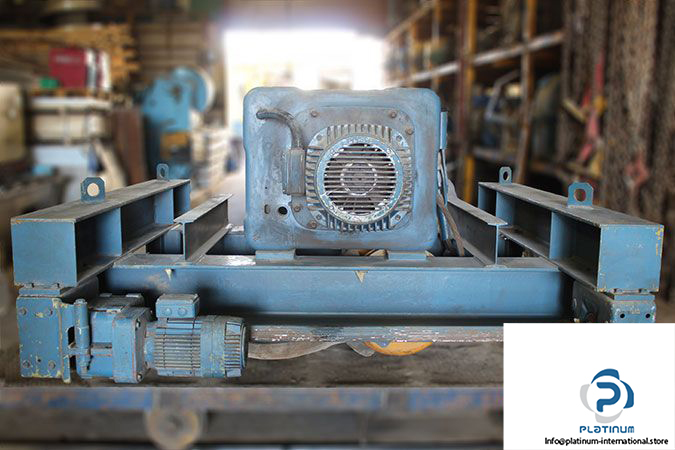

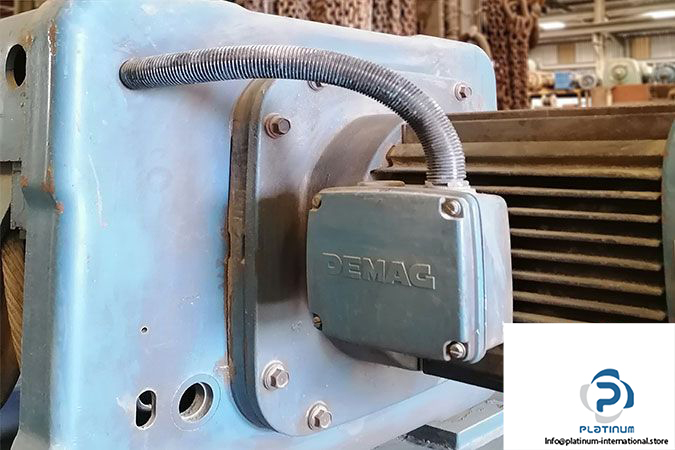

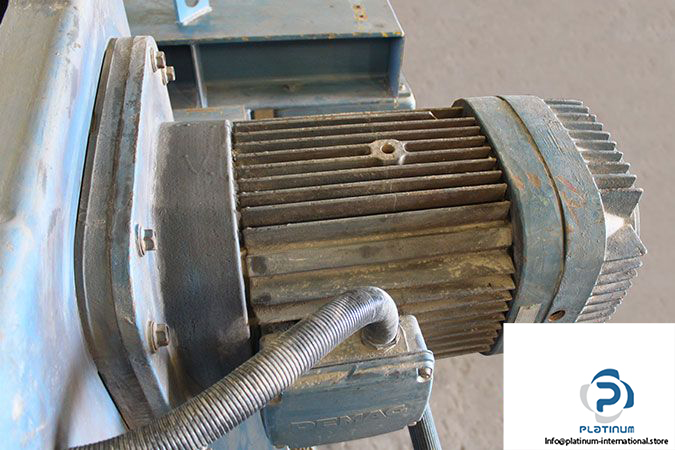

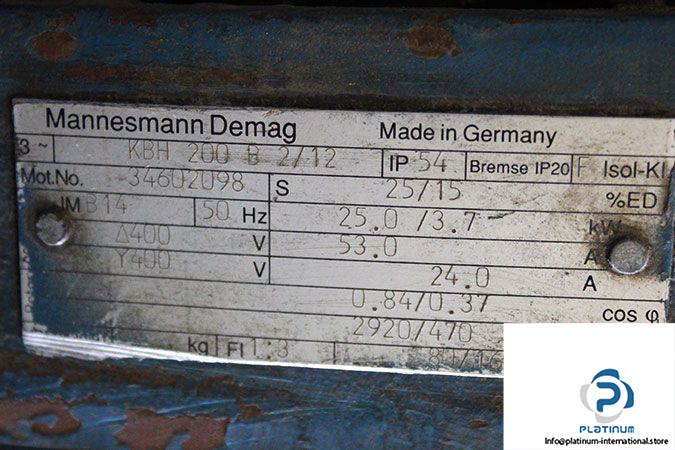

Attachments: DEMAG KBH 200 B2/12 MAIN HOIST MOTOR
Manufacturer: Demag Cranes
Type: Main Hoist Motor
Model: KBH 200 B2/12
Part No: 34602098
Voltage (star): 400 V
Voltage (delta): 400 V
Current (star): 24.0 A
Current (delta): 53.0 A
Frequency: 50 Hz
Speed (star): 470 1/min
Speed (delta): 2920 1/min
Power (star): 3.7 kW
Power (delta): 25.0 kW
Power Factor (star): 0.37 cos φ
Power Factor (delta): 0.84 cos φ
Protection Class: IP54
Insulation Class: F

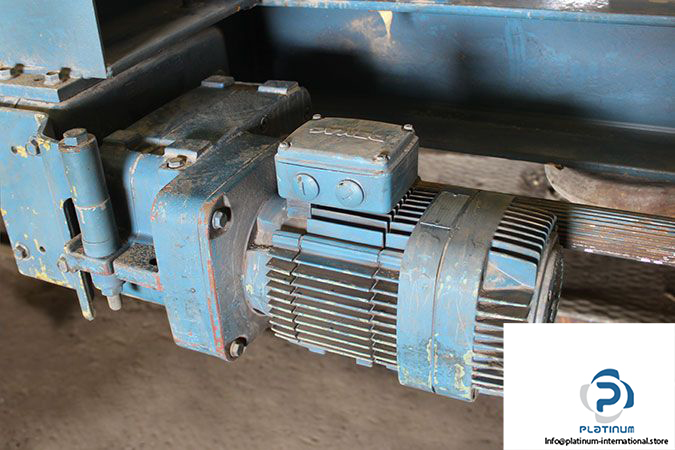

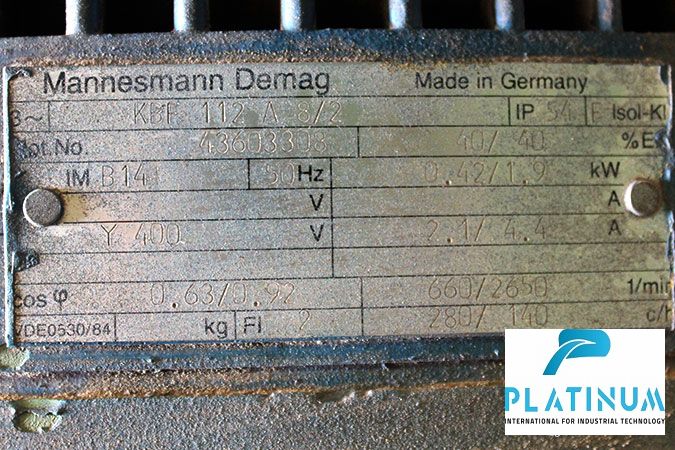

DEMAG KBF 112 A8/2 ELECTRIC MOTOR
Manufacturer: Demag Cranes
Type: Electric Motor
Model: KBF 112 A8/2
Part No: 43603308
Voltage (star): 400 V
Current: 2.1 / 4.4 A
Speed: 660 / 2650 1/min
Power: 0.42 / 1.9 kW
Frequency: 50 Hz
Power Factor: 0.63 / 0.92 cos φ
Protection Class: IP54
Insulation Class: F
