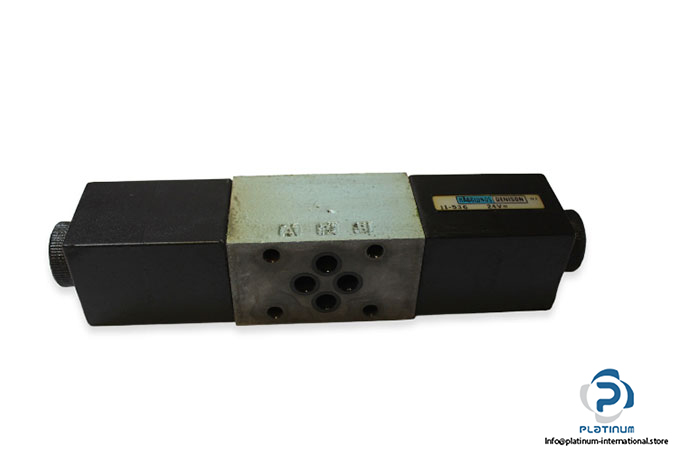

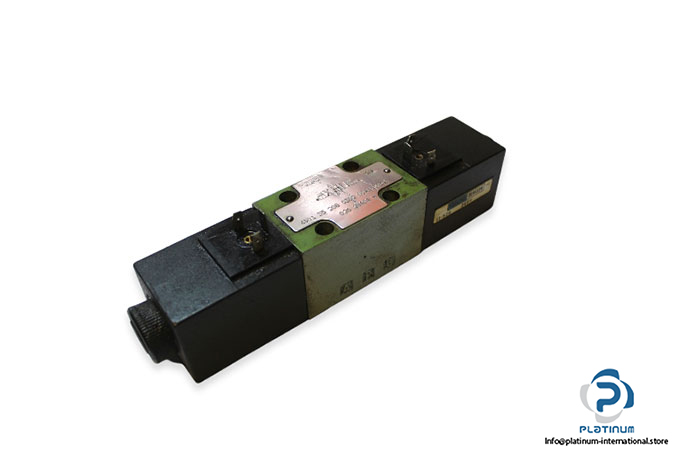

Denison 4D01 3203 0302 B1G0Q Directional Control Valve

Manufacturer: DENISON

Type: Directional Control Valve

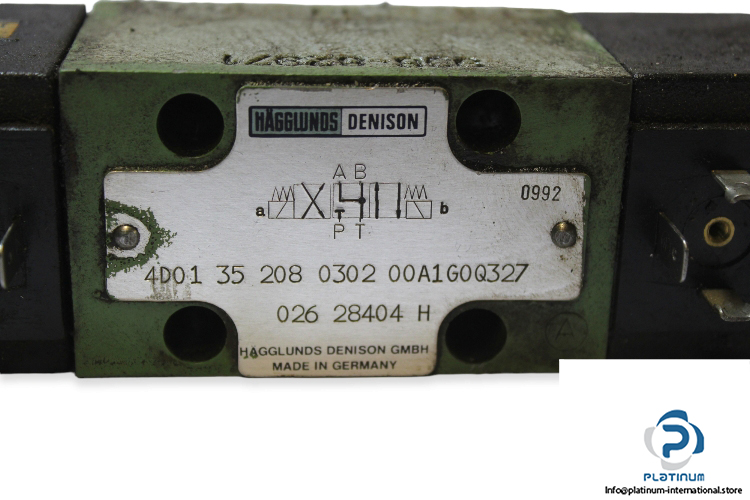

Model: 4D0135208030200A1G0Q327

Part. No: 02628404H

Nominal Size: NG 06

Ambient Temperature Range: -25 …. +50 °C

Max. Operating Pressure at Ports P, A, B: 350 bar

Max. Operating Pressure at Port T: 210 (DC), 140 (AC) bar

Maximum Flow: 80 L/min

Fluid Temperature Range: -25 …. +80 °C

Viscosity Range:10…650 mm²/s

Hydraulic Connection: Sub-plate

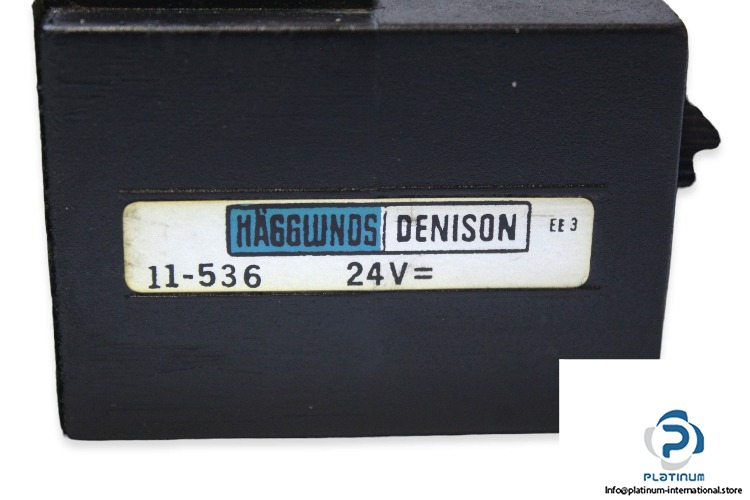

Attachment: DENISON 11-536 SOLENOID COIL

Manufacturer: DENISON

Type: Solenoid Coil

Model: 11-536

Voltage: 24 V DC
