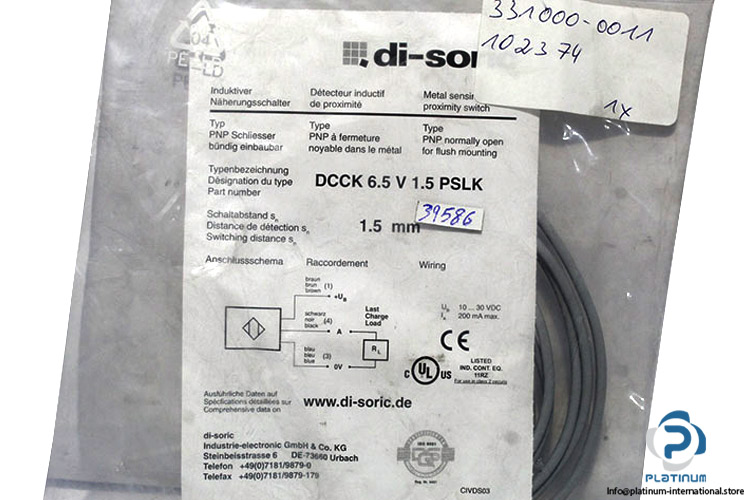

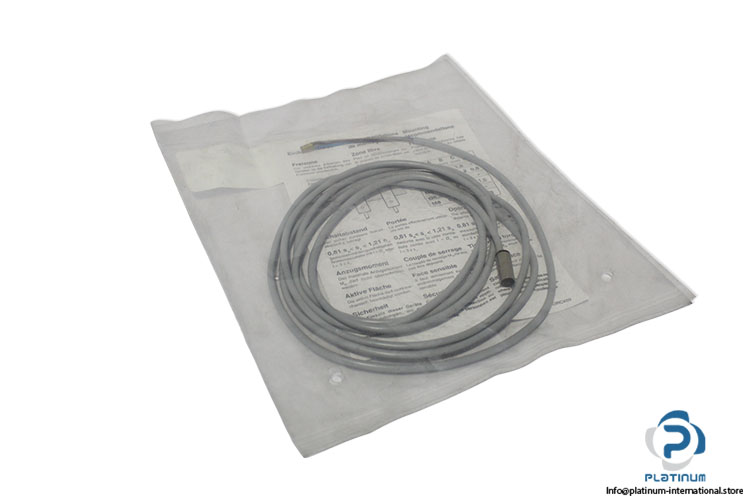

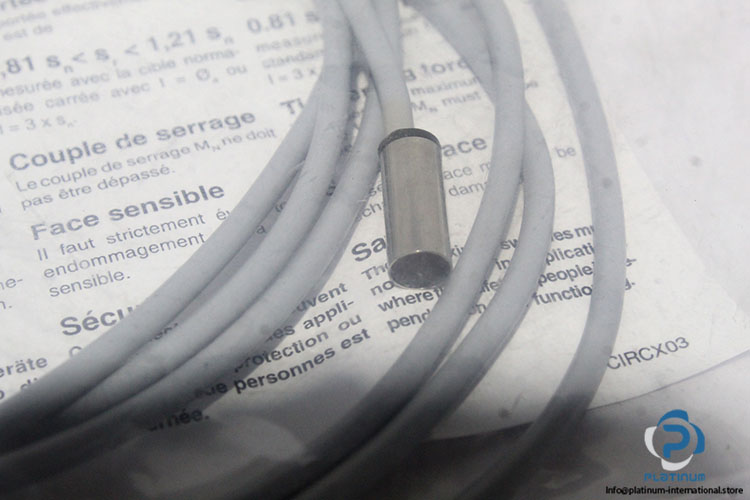

DI-Soric Dcck 6.5 V 1.5 Pslk Inductive Proximity Sensor
New
In stock1 unitReady to ship
Inductive Proximity Sensor The DI-SORIC DCCK 6.5 V 1.5 PSLK is a compact inductive proximity sensor with PNP NO output, 1.5 mm sensing distance, and IP67 protection for reliable industrial detection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 207817 |
| Service voltage | 10 … 30 V DC |
| Internal power consumption | 10 mA |
| Insulation voltage endurance | 500 V |
| Installation type | Flush |
| Diameter | Ø 6.5 mm (Diameter) |
| Housing length | 16 mm |
| Housing material | Stainless steel |
| Material of cable | PVC |
| Protection class | III, operation on protective low voltage |
| Operating principle | inductive |
| Evaluation | digital |
| Design | Cylinder |
| series | INE Industrial |
| Switching output | pnp, 200 mA, NO |
| Voltage drop (max.) | 2.4 V |
| Switching distance (SN) | 1.5 mm |
| Standardized measuring plate | 6.5 x 6.5 x 1 mm |
| Switching hysteresis (max.) | < 15 % |
| Switching frequency | 3000 Hz |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, 2.0 m (flying leads) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101003 |
| Weight | 0,04 |
