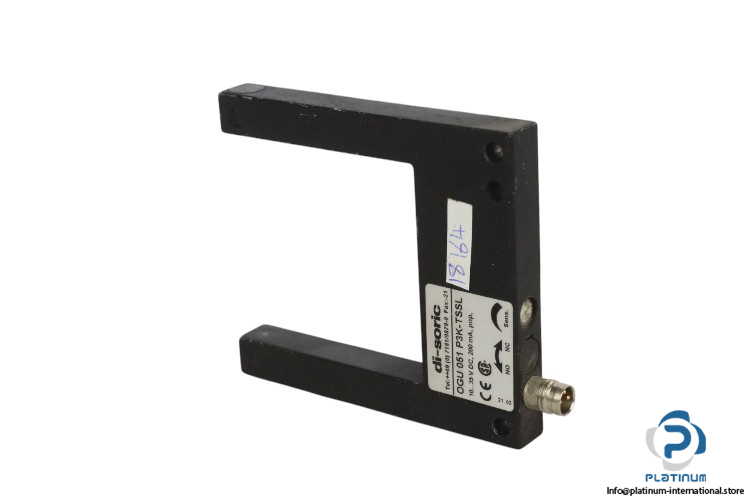

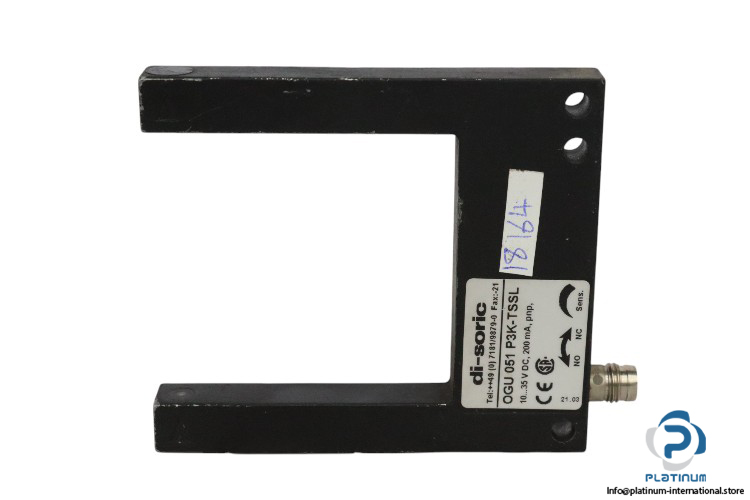

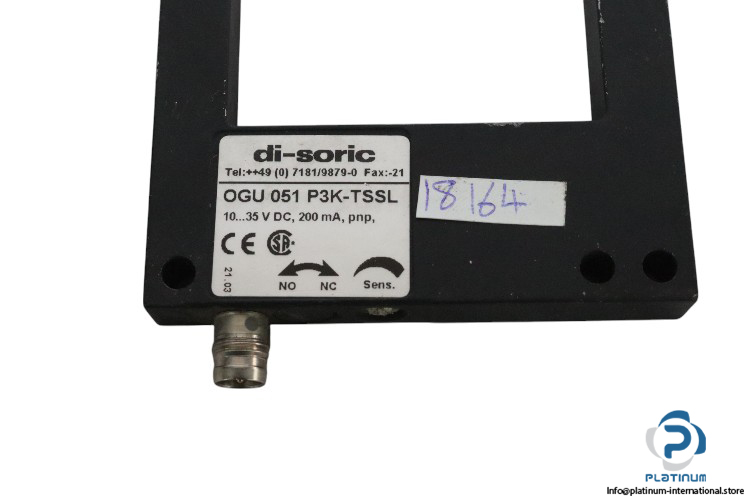

DI-SORIC OGU 051 P3K-TSSL Fork Light Barrier
The DI-SORIC OGU 051 P3K-TSSL Fork Light Barrier is a high-precision optical sensor designed for industrial applications requiring accurate object detection. With an adjustable sensitivity, integrated electronic module, and IP67 protection, this light barrier ensures reliable operation even in demanding environments.
Manufacturer: DI-SORIC
Type: Fork Light Barrier
Model: OGU 051 P3K-TSSL
Features:
Metal casing
Integrated electronic module
Adjustable sensitivity
High operating frequency
Light / dark switching
Bright ring LED
High protection class
| Evaluation | Digital |
| Supply Voltage | 10 - 35 V DC |
| Insulation Voltage Endurance | 500 V |
| Emitted Light | Red, Clocked |
| Fork Opening | 50 mm |
| Rated Current | 30 mA |
| Switching Output | PNP Normally Open (NO) / Normally Closed (NC) |
| Output Current | 200 mA |
| Connector Type | M8 Connector, 3-Pin |
| Resolution | 0.5 mm |
| Sensitivity Adjustment | Potentiometer |
| Material | Die-Cast Zinc, Black Lacquered Finish |
| Protection Class | IP67 |
| Ambient Temperature | -10 to +60°C |
| Dimensions (H x W x D) | 70 x 80 x 10 mm |
