DI-Soric OGU 021 P3K-TSSL Fork Light Barrier
Used
In stock1 unitReady to ship
Fork Light Barrier
The DI-SORIC OGU 021 P3K-TSSL is a high-performance fork light barrier sensor with a 20 mm opening, IP67 protection, and selectable PNP NO/NC output. Designed for precision detection in automated systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

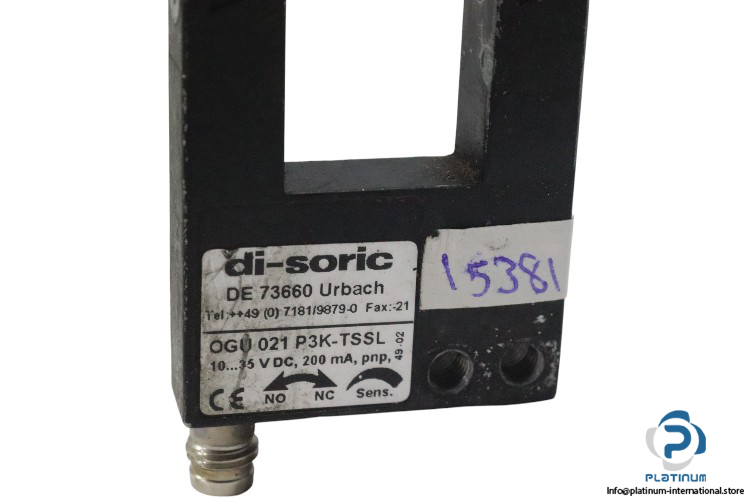

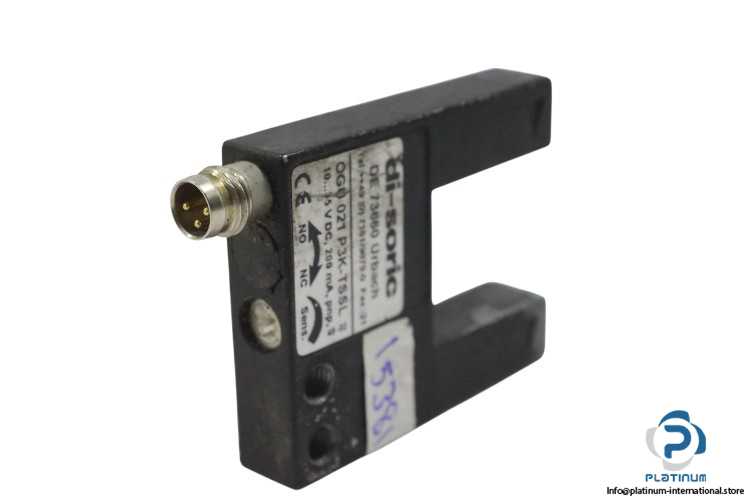

DI-SORIC OGU 021 P3K-TSSL Fork Light Barrier
The DI-SORIC OGU 021 P3K-TSSL is a compact and highly reliable fork light barrier sensor, ideal for precision object detection in automation and packaging systems. It offers easy installation, high protection rating, and flexible output configurations for demanding industrial environments.
Manufacturer: DI-SORIC
Type: Fork Light Barrier
Model: OGU 021 P3K-TSSL
Technical Data:
- Fork Opening: 20 mm
- Supply Voltage: 10 / 35 V DC
- Switching Output: PNP, Normally Open (NO) / Normally Closed (NC)
- Output Current: 200 mA
- Sensitivity Adjustment: Potentiometer
- Connector Type: M8 Connector, 3-Pin
- Protection Class: IP67
- Ambient Temperature: -10 / 60 °C
- Dimensions: 40 x 50 x 10 mm
