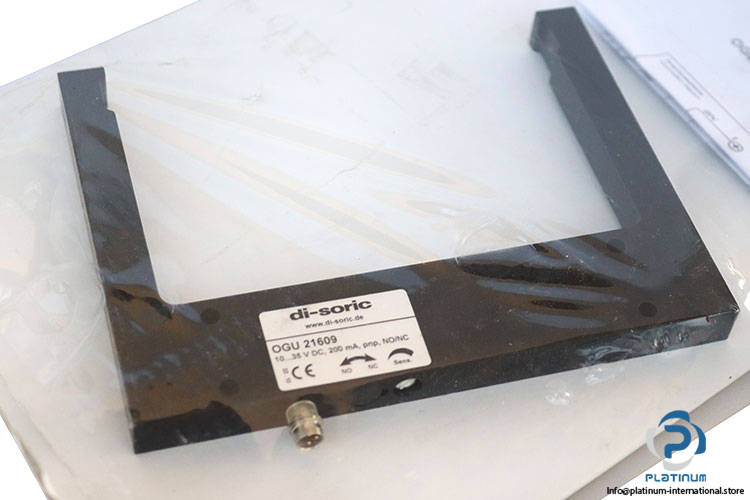

DI-Soric OGU 21609 Fork Light Barrier

Manufacturer: DI-SORIC
Type: Fork Light Barrier
Model: OGU 21609

Fork Opening: 120 mm
Supply Voltage: 10 … 35 V DC
No-Load Current Max.: 30 mA
Switching Output: Push-Pull Normally Open (NO) / Normally Closed (NC)
Output Current: 200 mA
Operation Modes: Standard, High Resolution, Power, Speed
Interface: IO-Link (V1.1, COM2 38.4 KBd, Smart Sensor Profile)
Connector Type: M8 Connector, 3-Pin
Material: Die-Cast Zinc (Black, Powder-Coated)
Protection Class: IP67
Ambient Temperature: -25 … 60 °C
Dimensions: 90 x 144 x 12 mm
