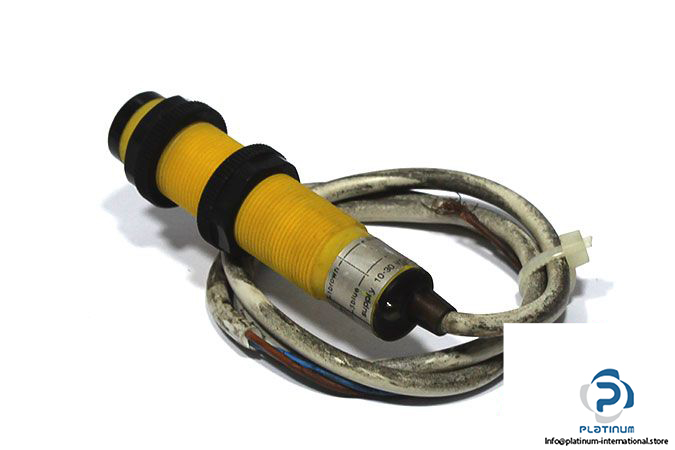

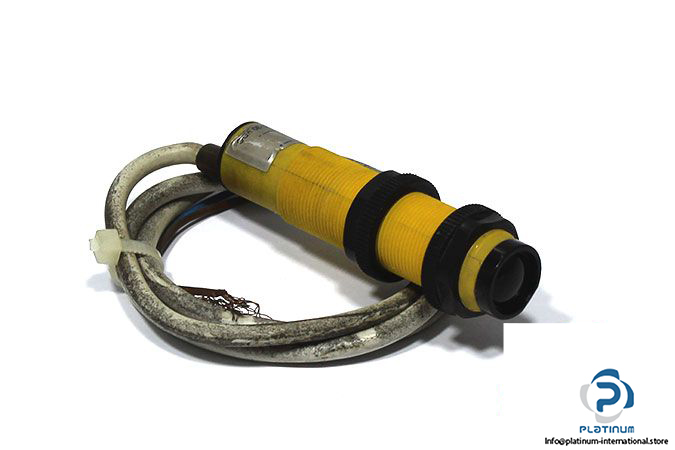

Diell MSE/00-4A Photoelectric Sensor

Manufacturer: Micro Detectors MD / Diell

Type: Photoelectric Sensor

Model: MSE/00-4A

Optic: Axial

Nominal Sensing Distance: 5 m with Reflector RL 110

Differential Travel: ≤ 10 %

Ripple: ≤ 10 %

Switching Frequency: 30 Hz

Power-on Delay: 200 ms

Operating Voltage: 10…30 VDC

Supply Current: 15 mA

load Current: 100 mA

Power Supply Protections: Transient

Output Protection: Short Circuit

Protection Class: IP67

LEDs: Red

Emission: Infrared (880 nm)

Operating Temperature: -25…70°C

Function: Through Beam

Cable: Axial Cable Output

Housing: Plastic

Mounting: M18

Length: 80 mm

Weight: 45 g
