Dietz Orst 100 PSK-ST3 Frame Light Barrier
The DIETZ ORST 100 PSK-ST3 Frame Light Barrier features 18 / 30 V DC supply voltage, PNP output, 5 kHz max frequency, and IP67 protection, providing reliable detection for industrial automation applications.

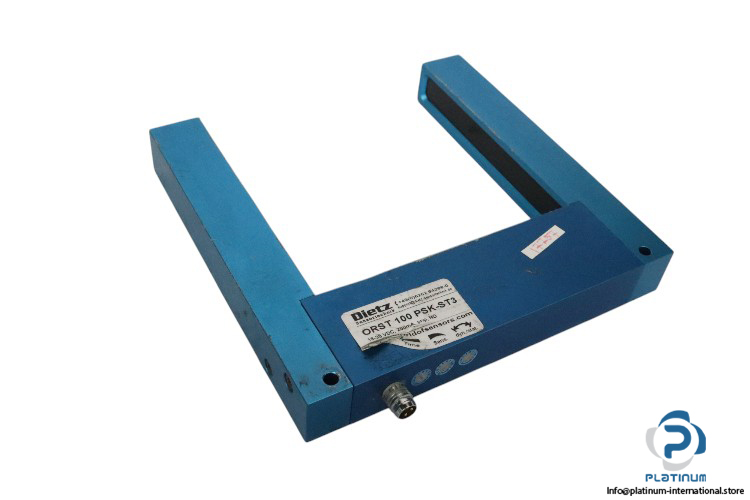

DIETZ ORST 100 PSK-ST3 Frame Light Barrier
The DIETZ ORST 100 PSK-ST3 Frame Light Barrier is a high-performance optical sensor designed for precise detection in industrial applications. With its dynamic and static switchable principles, it provides excellent versatility and reliability in monitoring and controlling systems. Its robust design ensures reliable operation in harsh environments.
- Manufacturer: DIETZ
- Type: Frame Light Barrier

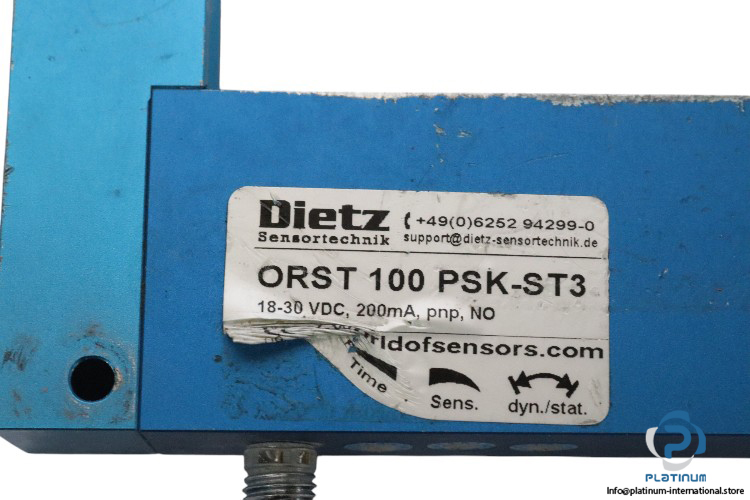

- Model: ORST 100 PSK-ST3
Technical Specifications:
- Supply Voltage: 18 / 30 V DC
- Current: 200 mA
- Switching Output: NO (Normally open)
- Electrical Design: PNP

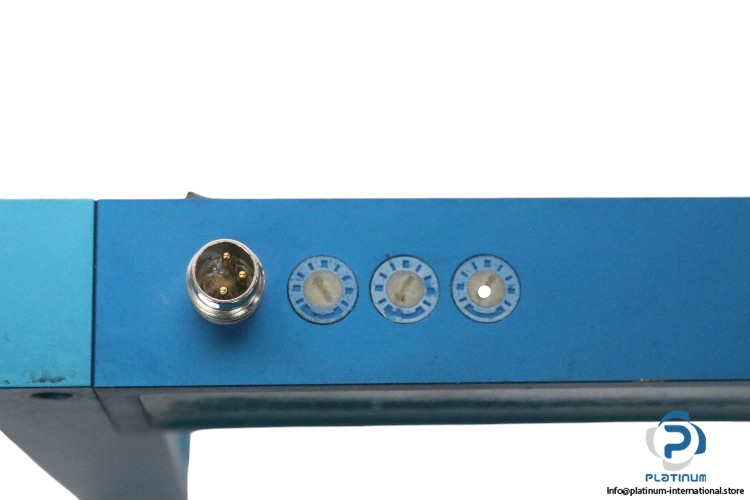

- Connection: Plug M8
- Fork Opening: 100 mm
- Output: Dynamic and static principle switchable
- Max. Operating Frequency: 5 kHz
- Resolution: 2 mm
- Protection Class: IP 67
- Casing Material: Aluminium / Black anodized
- Ambient Temperature: -10 / 60°C
With its compact, durable aluminium housing and IP67 protection class, the DIETZ ORST 100 PSK-ST3 Frame Light Barrier is ideal for use in environments where precise and reliable detection is essential, making it perfect for industrial automation, process control, and material handling applications.
