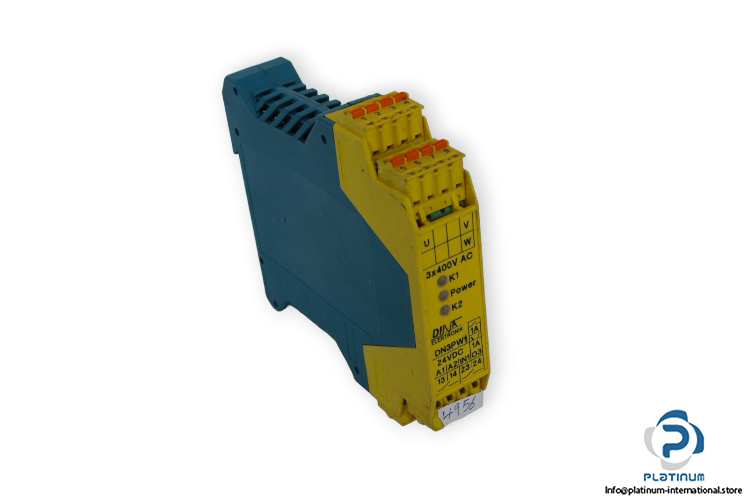

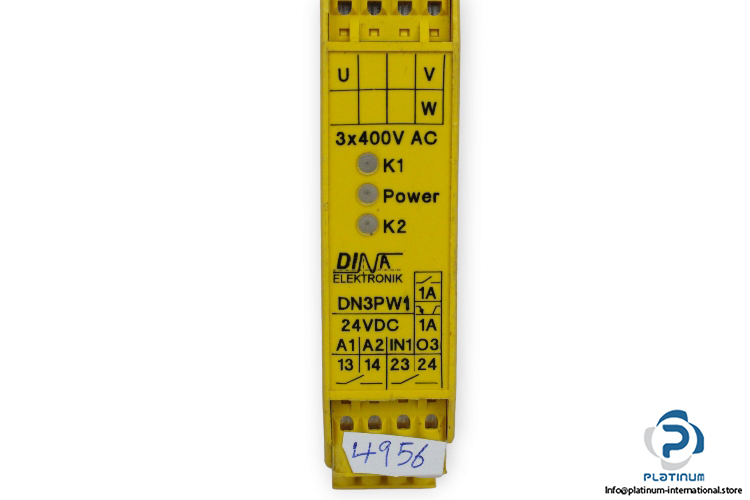

Dina DN3PW1 Phase Monitor
Manufacture: Dina
Type: Phase Monitor
Model: DN3PW1
Operational Voltage: 24 V DC
Nominal voltage: 400 V AC/3-phase
Current consumption at 24 V: 50 mA
Power consumption at A1/A2: 1,2 W
Output: 2 NO contact
Contact material: Ag alloy
Minimum switching current: 10 mA
Switching capacity DC13: 1A/30V DC
Terminals: Push-in, pluggable
Operating Temperature: -10 … +55°C
Type of protection: IP 20
Dimensions: 22,5 x 114 x 111 mm
