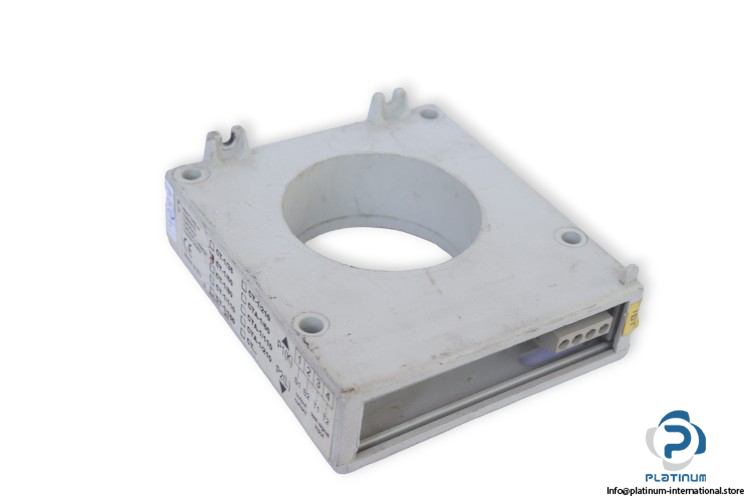

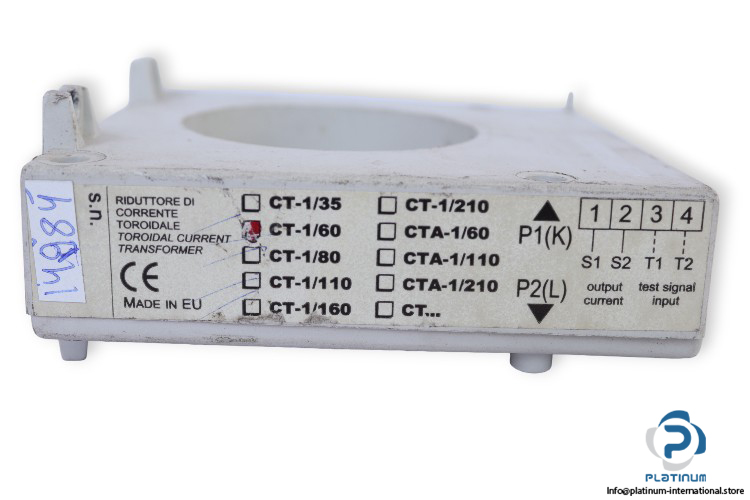

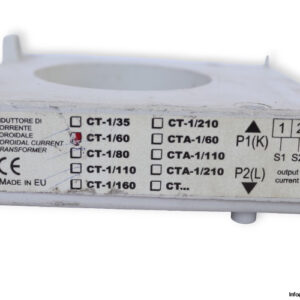

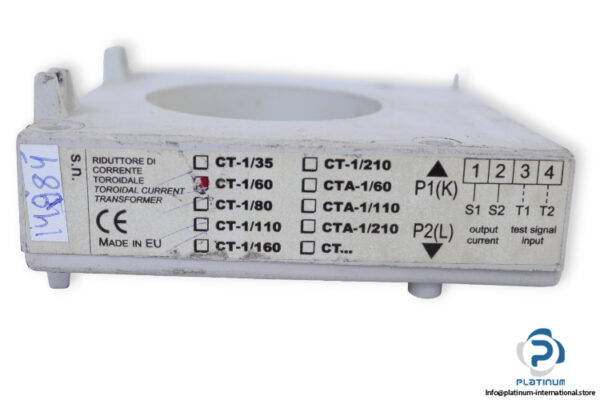

DLY Electronic CT-1/60 Toroidal Current Transformer

DLY ELECTRONIC Toroidal Current Transformer CT1/60

The DLY ELECTRONIC CT-1/60 Toroidal Current Transformer is engineered for precise measurement and effective connection with Earth Leakage ELR Series. It offers reliable performance with a high transformer ratio, wide operating temperature range, and robust design for various applications.

🔧 Technical Specifications:

• Manufacturer: DLY ELECTRONIC
• Type: Toroidal Current Transformer
• Model: CT-1/60
• Application: Connected with Earth Leakage ELR Series
• Hole Diameter: 60 mm
• Minimum Measured Current: 25 mA
• Transformer Ratio: 500/1
• Protection Class: IP20
• Temperature Range: -10 to 70 °C
• Dimensions: 110 x 100 x 50 mm

Designed with precision and durability, the DLY ELECTRONIC CT-1/60 ensures optimal performance and safety in current measurement and leakage detection applications.
