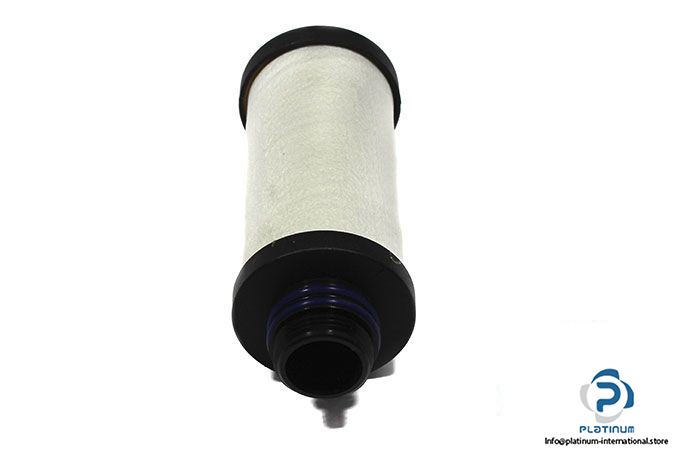

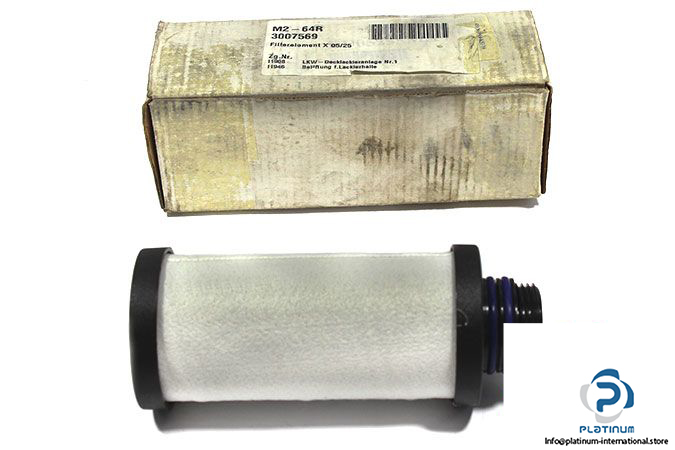

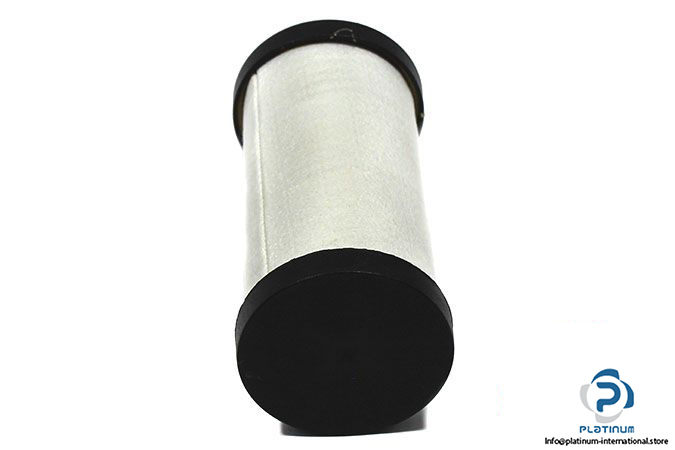

Donaldson Ultrafilter EU 0525 SMA Replacement Filter Element

Manufacturer: Donaldson Ultrafilter

Type: Replacement Filter Element

Model: EU0525SMA

Length: 153 mm

Inside Diameter: 25 mm

Out Side Diameter: 62 mm

Type of Fluid: Air

Micron Ratting: 0.01 µm

Pressure Drop (Clean and Dry): 0.1 bar

Pressure Loss (Oily): 0.3 bar

Pressure Loss (Before Element Change): 0.4 bar

Temperature: 1.5…120 °C

Material: Cotton

Flow Direction: From Outside to Inside

Weight: 0.180 kg
