Donghua 28B-1 Single-Strand Roller Chain

Manufacturer: DONGHUA
Type: Single-Strand Roller Chain
Model: 28B-1

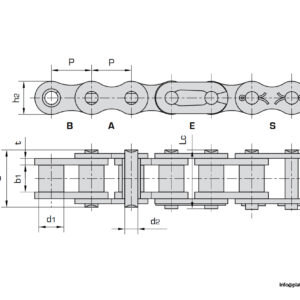

DIN/ISO 606
Chain no. 28B-1
PitchP: 44.45 mm
Roller diameter d1: 27.94 mm
Width between inner plates b1: 30.99 mm
Pin diameter d2 max/L max: 15.90/65.10 mm
Pin length Lc max: 69.5 mm
Plate thickness T: 7.50/6.0mm
Ultimate tensile strength Q min: 200.0/45455 kN/lbf
Average tensile strength Q0: 236.4 kN
Weight per meter q: 8.5 kg/m
