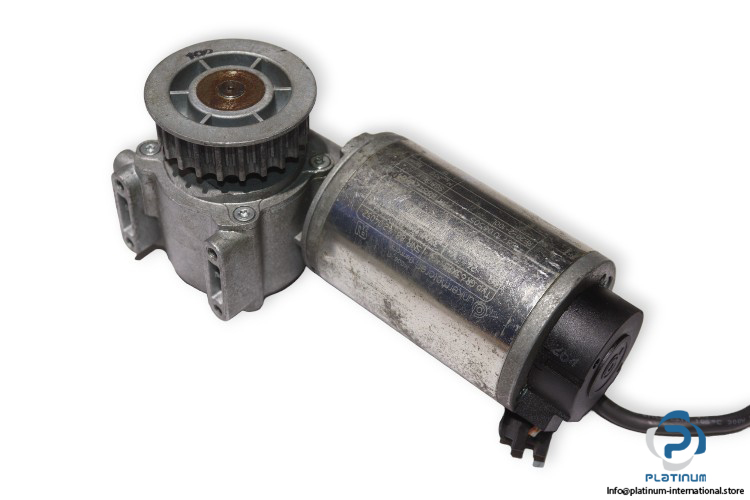

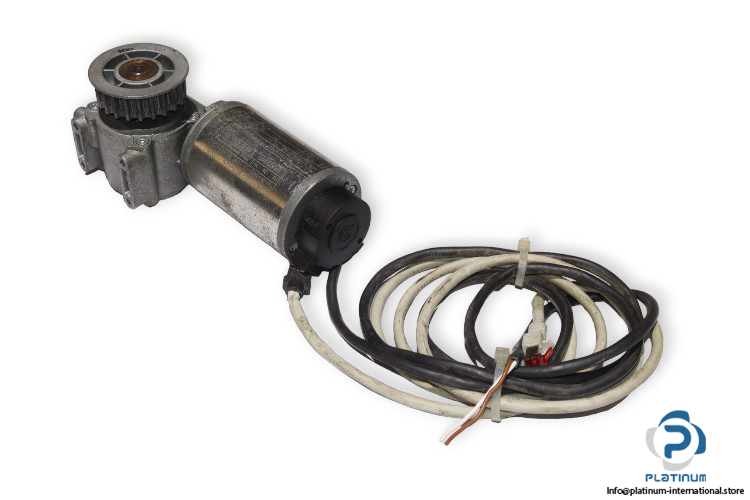

Dunkermotoren GR 63X25 Gear Motor

Manufacturer: Dunkermotoren
Type: Servo motor
Model: GR 63X25

Nominal Voltage: 24 V
Nominal Current: 2.7 A
Nominal torque: 0.14 Nm
Nominal speed: 3300 rpm
No load speed: 3600 rpm
Stall torque: 1.08 Nm
Nominal output power: 48.4 W
Maximum output power: 101.8 W
Starting current: 18 A
No load current: 0.36 A
Demagnetization current: ≥ 24
Rotor inertia: 400 gcm²

ATTACHMENT:

DUNKERMOTOREN SG80K RIGHT ANGULAR GEARBOX

Manufacturer: Dunkermotoren
Type: Right Angular Gearbox
Model: SG80K

Ratio: 15
Torque: 350 Ncm
