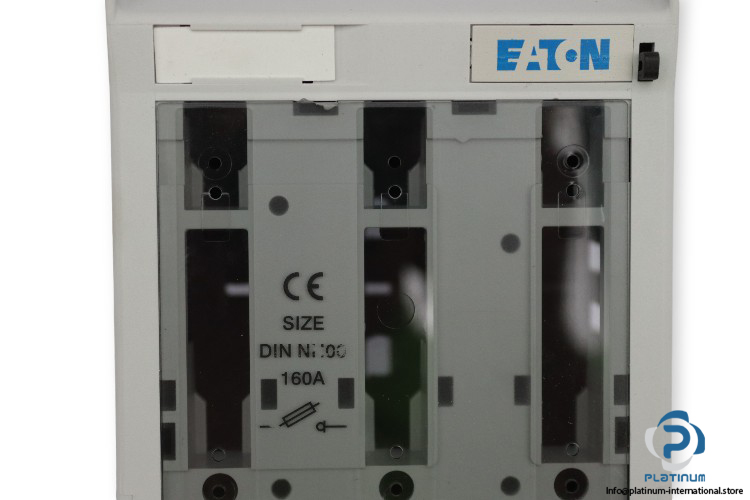

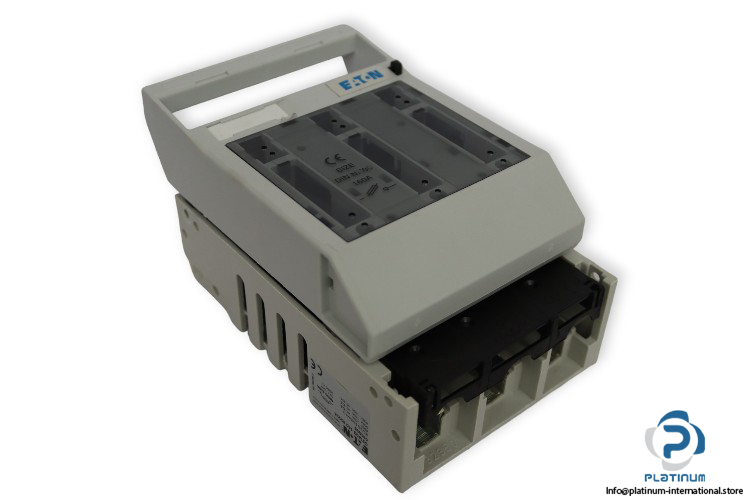

Eaton GSTA00-160 95558 Fuse Switch-Disconnector

Manufacturer: Eaton / Moeller
Type: Fuse Switch-Disconnector
Model: GSTA00160 95558
Part No.: 095558
Coil No.: NH00-160A

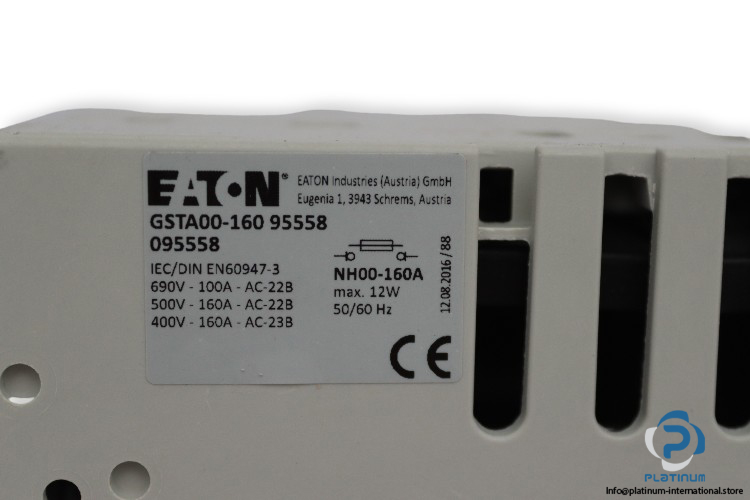

Voltage Rating:
AC-22B: 690 V AC,100 A
AC-22B: 500 V AC,160 A
AC-23B: 400 V AC,160 A
Frame size: NH00
Type of control element: Rocker lever
Position control element: Front side
Rated current Max.: 160 A
Rated operation power at AC-23, 400 V: 64 kW
Max. admissible heat dissipation NH-SE Pv: 12 W
Tightening Torque: 2.6 Nm
Number of poles: 3 Pole
Frequency: 50/60 Hz
Degree of protection: IP20
Type of electrical connection of main circuit: Screw connection
Standard: IEC/DIN EN60947-3
Ambient temperature: -20 … 55 °C
Dimension: 106 X 169 X 87 mm
