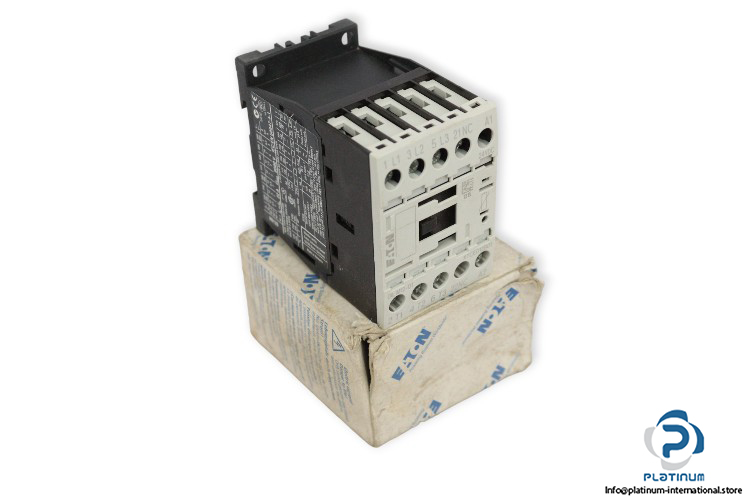

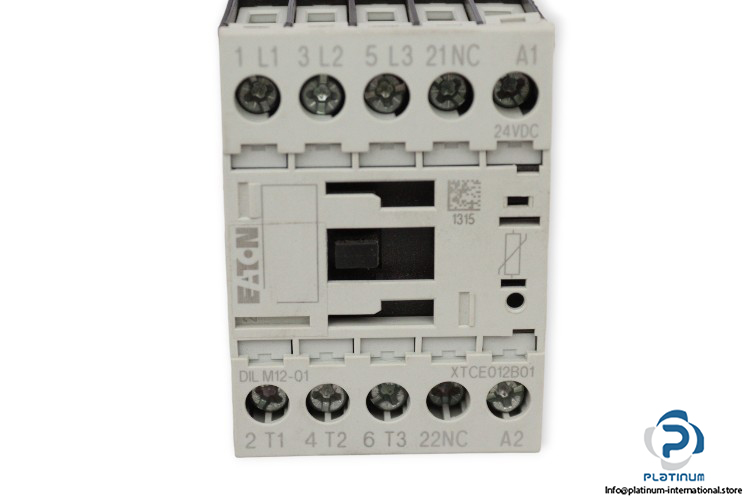

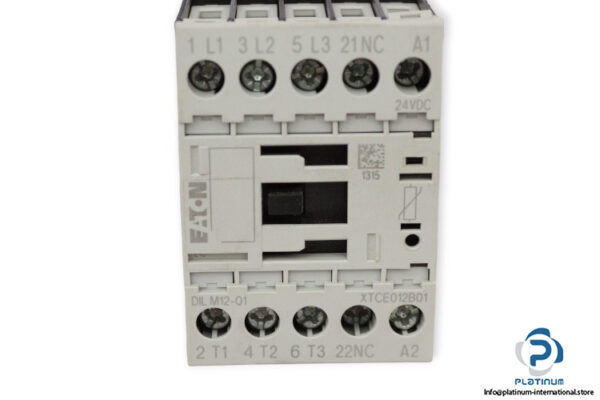

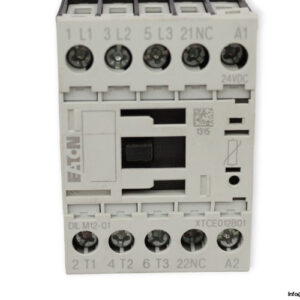

Eaton / Moeller DILM12-01 Contactor

Manufacturer: Eaton / Moeller
Type: Contactor
Model: DILM1201
Cat. No: XTCE012B01TD
Part No.: 276880
EAN: 4015082768805

Coil Voltage: 24 V DC
No. of Poles: 3
Contact Configuration: 1 Normally Close
Power Consumption:
5.5 kW (400 V DC)
3.5 kW (220 … 230 V AC)
4 kW (240 V AC)
5.5 kW (380 … 400 V AC)
7 kW (415 … 500 V AC)
6.5 kW (660 … 690 V AC)
Rated Current: AC-3: 12 … 7 A ( 220 … 690 V AC)/ AC-4: 7 … 5 A (220 … 690 V AC)
Thermal Current: 22 A
Impulse Withstand Voltage: 8000 V
Degree of protection: IP20
Operating Temperature: -25 … 60 °C
Dimension: 75 X 68 X 45 mm
IEC/EN 60947-4-1
MSAA276880 13W15
