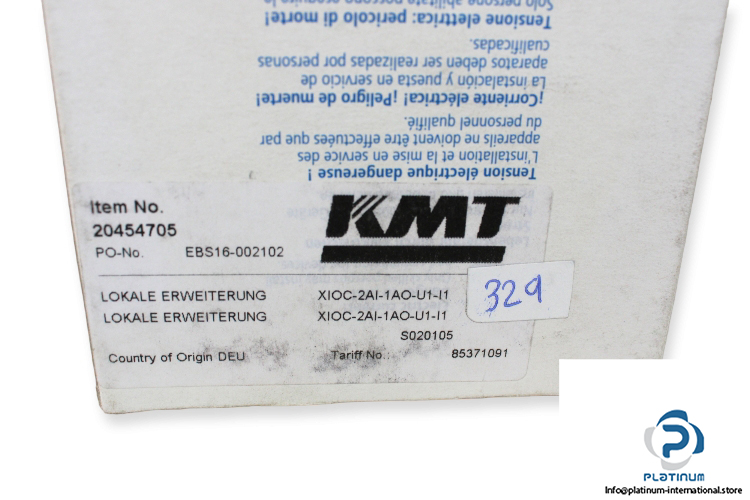

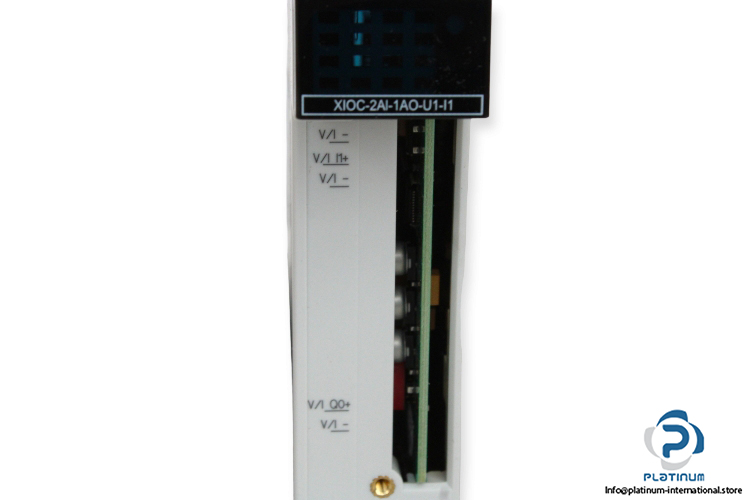

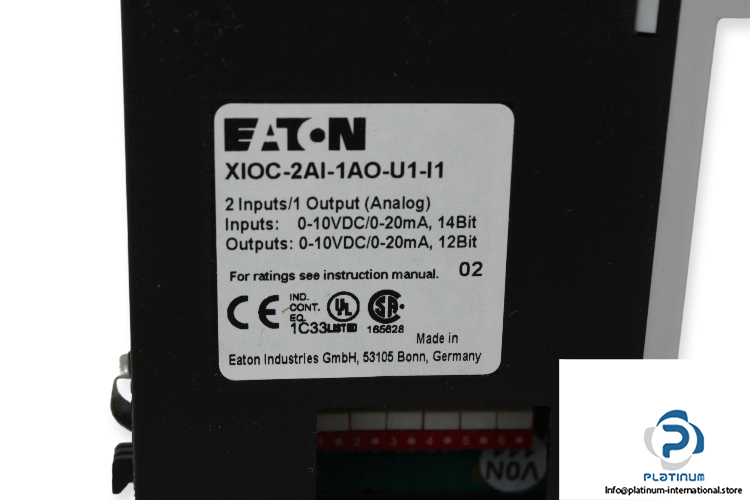

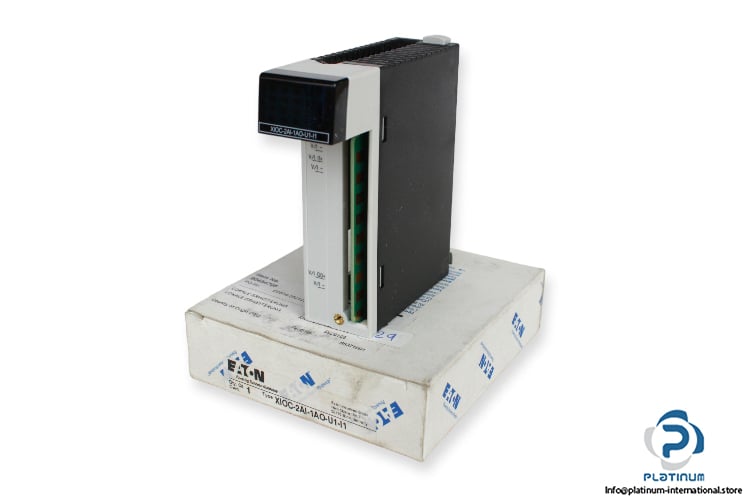

Eaton XIOC-2AI-1AO-U1-I1 Analog I/O Module

Manufacturer: Eaton

Type: Analog I/O Module for XC100/200

Model: XIOC-2AI-1AO-U1-I1

Part No.: 20454705

Rated voltage Ue: 24 V DC (20.4 … 28.8)

Maximum power loss Pv: 1.4 W

Input Voltage: 0 … 10 V DC

Input Current: 0 … 20 mA

Resolution: 14 Bit

Input channels: 2

Terminations: Plug-in terminal block

Output Voltage: 0 … 10 V DC

Output Current: 0 up to 0.020 A

Resolution: 12 Bit

Number of analog inputs (AI): 2

Number of analog outputs (AO): 1

Type of electric connection: Screw-/spring clamp connection

Pollution degree: 2

Degree of Protection: IP20

Ambient temperature: 0 … 55°C

Dimensions: 30 x 95 x 100 mm
