Ebmpapst ECI 42.40 DC Gearmotor
Brushless DC Gearmotor

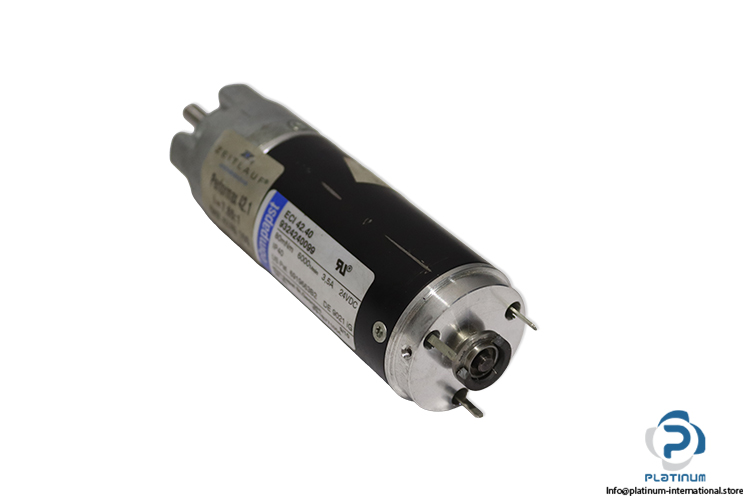

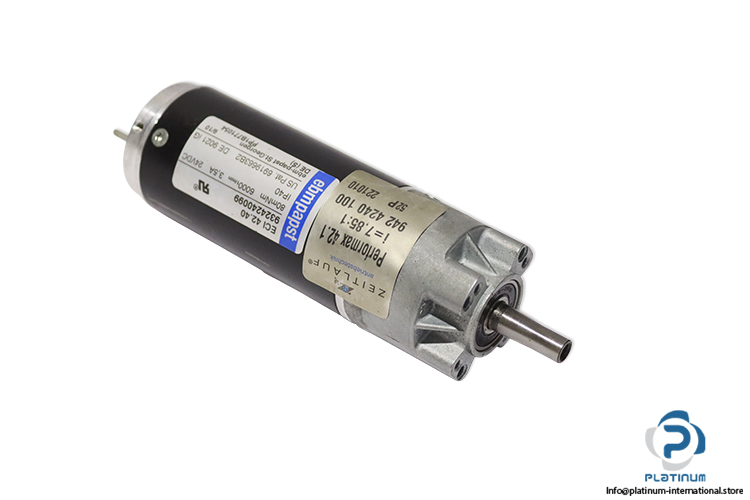

Ebm-Papst ECI42.40 24 V DC brushless motor with ZEITLAUF Performax 42.1 planetary gearbox, 80 mNm torque, 6000 rpm rated speed, and 764 rpm output after 7.85:1 reduction. Engineered for precision automation, robotics, and controlled motion systems.Ebm-Papst ECI42.40 Brushless DC Gearmotor with ZEITLAUF Performax 42.1 Gearbox
The Ebm-Papst ECI42.40 is a high-performance brushless DC gearmotor designed for precision motion control and reliable continuous operation. Combined with a ZEITLAUF Performax 42.1 inline planetary gearbox, this compact drive unit delivers optimized torque transmission and controlled output speed for demanding industrial applications.

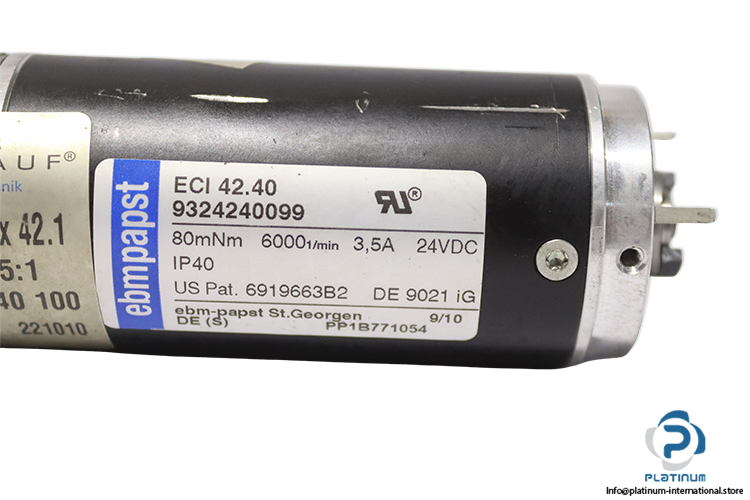

Manufacturer: Ebm-Papst
Type: Brushless DC Gearmotor
Model: ECI42.40
Motor Series: ECI
Part Number: 9324240099
Certifications Marking:
UR Recognized (UL)
Compact, efficient, and ideal for automation systems, robotics, precision equipment, and controlled motion applications requiring stable torque and regulated output speed.
| Rated Torque | 80 mNm |
| Rated Speed | 6000 rpm (6000 1/min) |
| Rated Current | 3.5 A |
| Rated Voltage | 24 V DC |
| Protection Class | IP40 |
| Shaft Type | Solid Cylindrical Shaft |
| Output Speed After Gear Reduction | 6000 rpm / 7.85 = 764 rpm |
| US Patent | 6919663B2 |
| DE | 9021 iG |

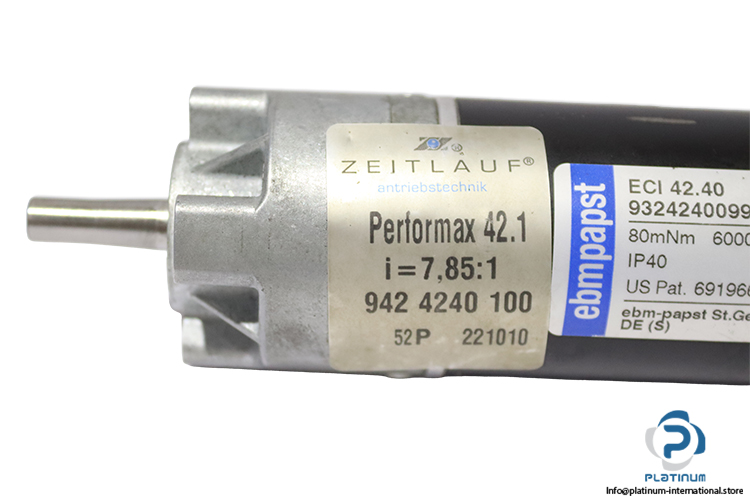

| Attachment | ZEITLAUF PERFORMAX 42.1 GEARBOX |
| Gearbox Manufacturer | ZEITLAUF antriebstechnik |
| Series | Performax 42.1 |
| Part No. | 942 4240 100 |
| Code | 52P 221010 |
| Ratio | i = 7.85 : 1 |
| Gearbox Type | Inline Planetary Gearbox |
| Mounting | Flange-Mounted Gearbox |
