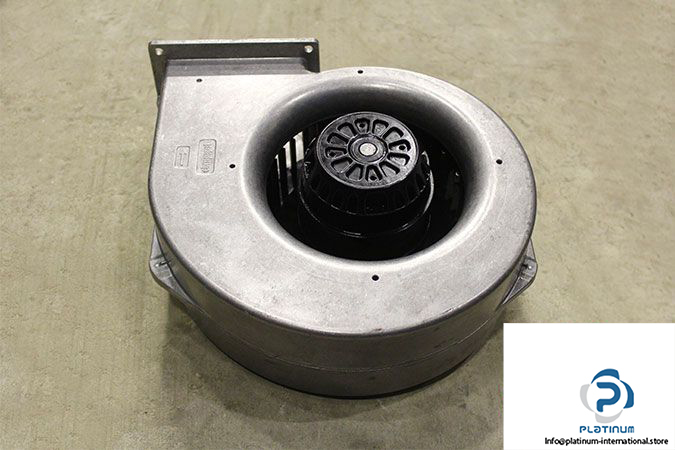

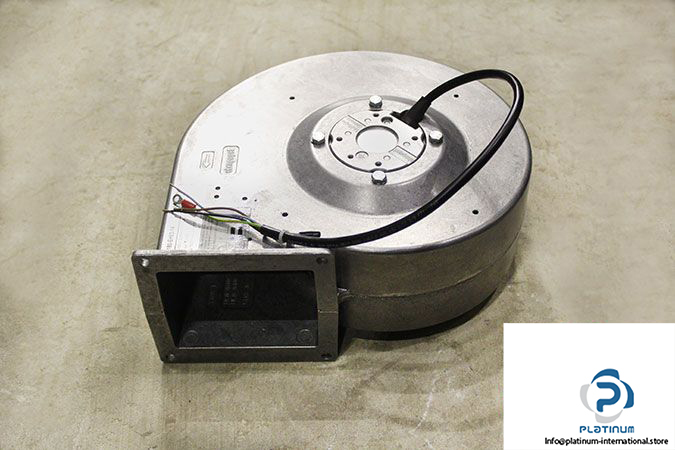

Ebmpapst G2E180-EH03-14 AC Centrifugal FAN

Manufacturer: Ebm-papst

Type: AC Centrifugal fans

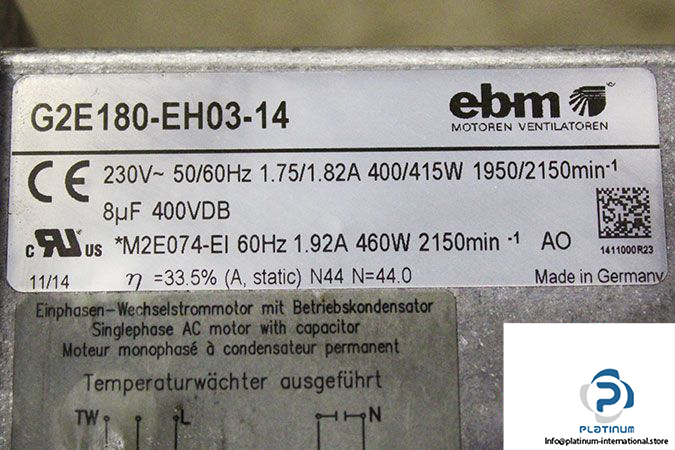

Model: G2E180-EH03-14

Air Flow [m³/h]: 400

Nominal Voltage [V]: 230

Rated Current [A]: 1.75/1.82

Starting Current [A]: 2.2/2

Speed [rpm]: 1950/2150

Power Input [W]: 400/415

Frequency [Hz]: 50/60

Motor Type: M2E074-EI

Frequency [Hz]: 60

Motor Current [A]: 1.92

Motor Power [W]: 460

Motor Speed [rpm]: 2150

Efficiency [%]: 33.5

Motor Capacitor [µF]: 8

Capacitor Voltage [VDB]: 400

Ambient Temperature [°C]: -25…30

Dimensions (Cut Out) [mm]: 110×88

Duty: S1

Insulation Class: B

Weight [kg]: 5.35
