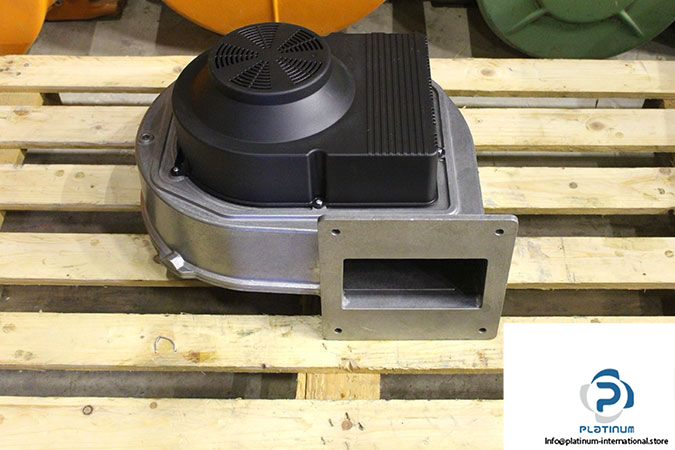

Ebmpapst G3G250-GN04-30 Centrifugal FAN

Manufacturer: Ebm-Papst

Type: Centrifugal Fans

Model: G3G250-GN04-30

Motor: M3G084-FA

Phase: 1~

Impeller Material: Sheet Steel, Galvanized

Body Material: Die-Cast Aluminum

Nominal Voltage Range [V]: 208-240

Power Input [W]: 820

Frequency [Hz]: 50/60

Speed [min^-1]: 4900

Efficiency [η]: 63.0%

Current Draw [A]: 4.8 @ 208 V

Min. Ambient Temperature [°C]: -20

Max. Ambient Temperature [°C]: 60

Protection Class [IP]: 20

Insulation Class: B

Duty: S1

Weight [kg]: 13.2
