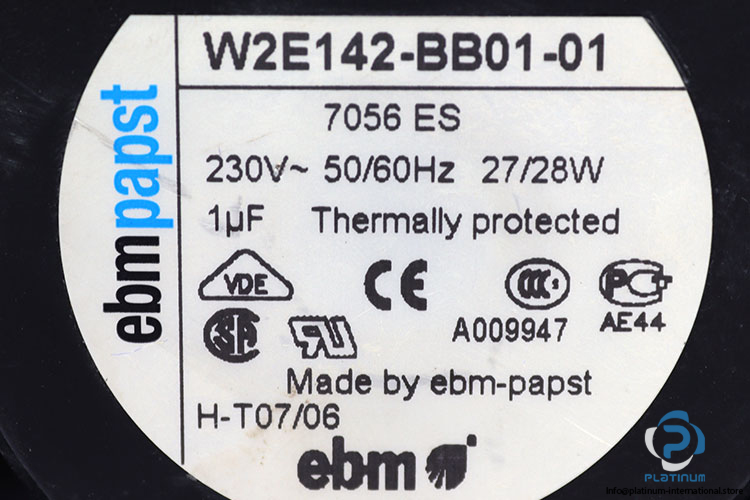

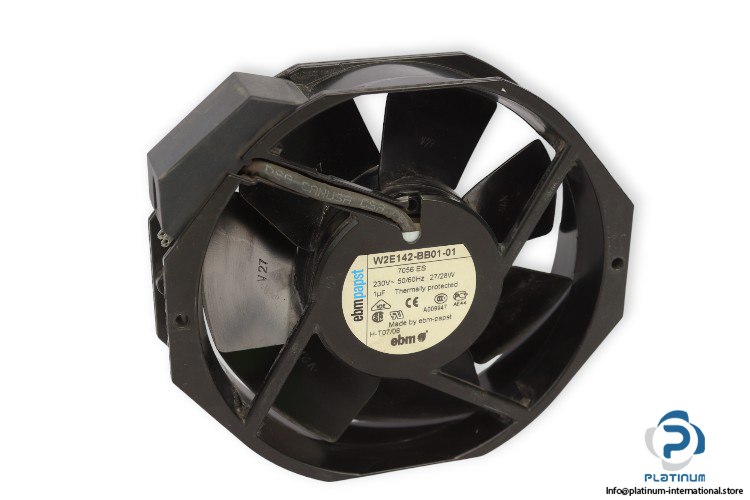

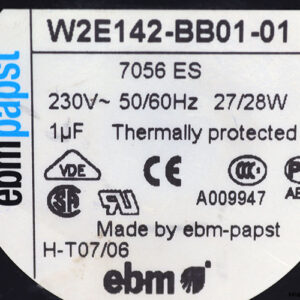

Ebmpapst W2E142-BB01-01 27/28W Axial Compact FAN

Manufacturer: Ebmpapst
Type: Axial compact fan
Model: W2E142BB0101
Part No.: 7056 ES

Nominal Voltages: 230 V AC
Power consumption: 27/28 W
Speed rpm: 2800 … 3350 min^-1
Current draw: 0.12/0.13 A
Frequency: 50/60 Hz
No. of Blades: 7
Size: 142 mm
Motor size: 52
No. of wires: 2
Direction of rotation: Counterclockwise, viewed toward rotor
Motor Bearing: Ball Bearing
Capacitor: 1 µF
Capacitor voltage: 400 VDB
Electrical hookup: Plug
Motor protection: Thermal overload protector (TOP) internally connected
Rotor surface: Painted black
Impeller material: Sheet steel, painted black
Fan housing material: Die-cast aluminum, painted black
Ambient Temperature: -25 … 65°C
Degree of protection: IP22
Dimensions: 172 x 150 x 38 mm
