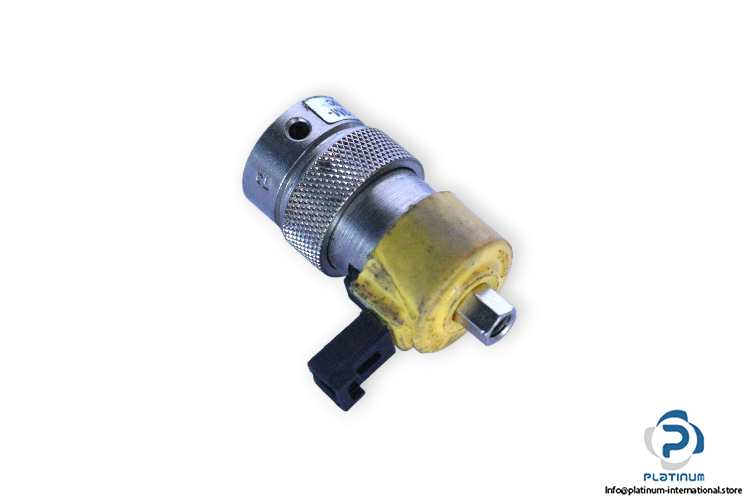

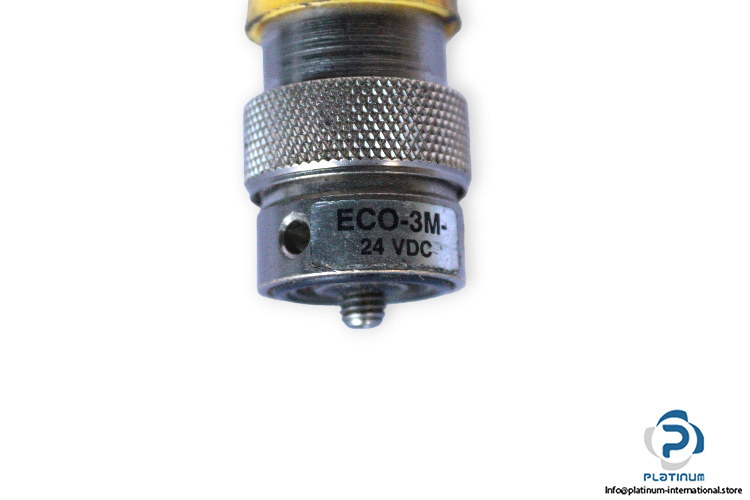

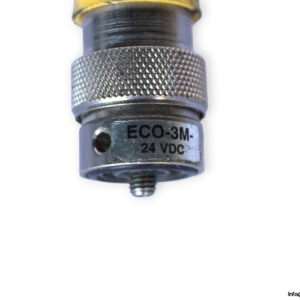

ECO-3M-24VDC Solenoid Valve

Type: Solenoid Valve
Model: ECO-3M-24VDC

Filtration: 40 micron Filter
Manifolds: Single-Station, Multi-Valve
Material, Body: Nickel Plated Brass Body & Core
Connection: Terminal Pin, 0.025″
Operating Temperature Range: 32 to 180°F (0 to 82°C)
Poppet Travel: 0.007″
Response Time: 5 to 10 ms
Operating Pressure: 105 psig (25 l/min @ 100 psig)
Voltage: 24 VDC
Function: 3-Way Fully-Ported
Port Size: 5 mm
