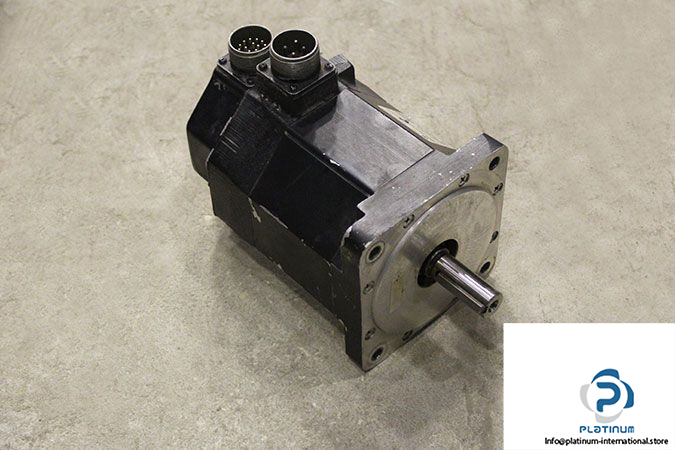

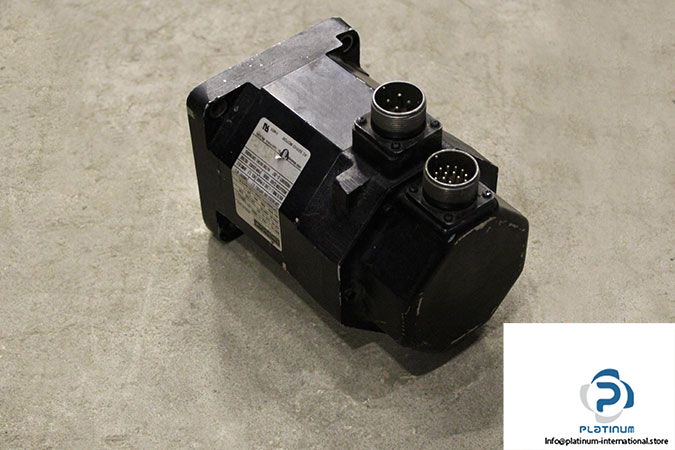

Electro-Craft F-4030-Q-H00AA Brushless Servo Motor

Manufacturer: Electro Craft

Type: Brushless Servo Motors

Model: F-4030-Q-H00AA

Part No.: 2142-01-802

Rated Voltage [V]: 240

Rated Power [kW]: 1.4

Max Speed [rpm]: 4000

Cont. Stall Torque [Nm]: 3.5

Continuous RMS Current [A]: 5.7

Rotor Moment of Inertia [kg-m²]: 0.001

Friction Torque [Nm]: 0.063

Ambient Temperature [°C]: 40

Thermal Class: B

Weight [kg]: 8.875
