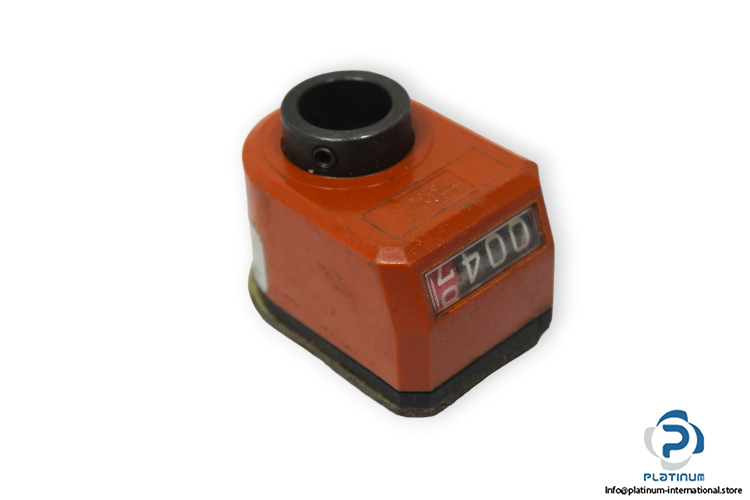

Elesa DD51-AN-001.2/5-D-AR Mechanical Position Indicators Counter

Manufacture: Elesa
Type: Mechanical Position Indicators Counter

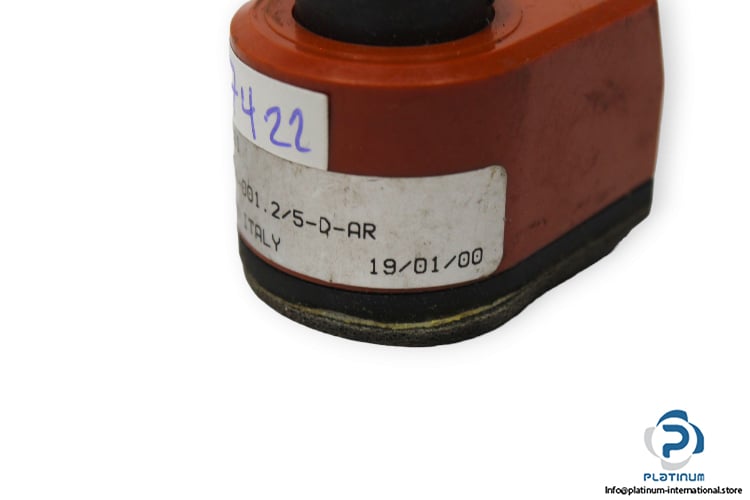

Model: DD51-AN-001.2/5-D-AR

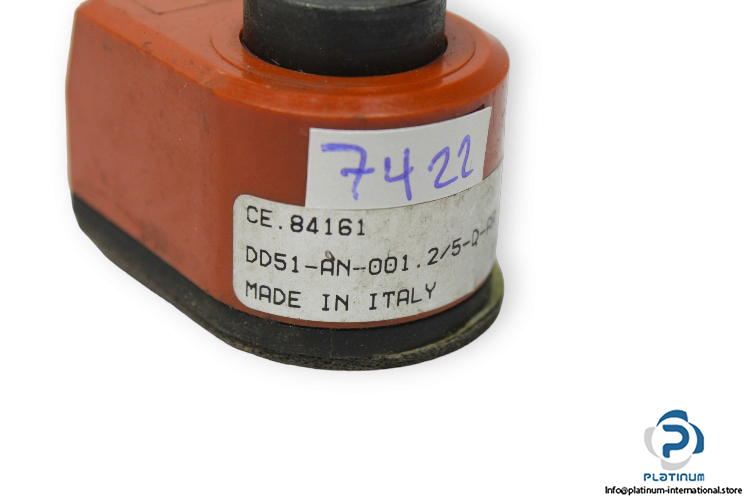

Part No.: CE.84161
Series: DD51

Features and Applications: can be assembled on passing through spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications
Count digits: 4 digits
Display Position: AN
Reading of the counter after one revolution: 001.2(5)
Speed: 1500 rpm
Pitch: 1.25
Direction of Rotation: clockwise. Increasing values with clockwise rotation of the boss
Display: inclined display, counter in upper position
Dimensions: 38.5 x 47 x 33 mm
