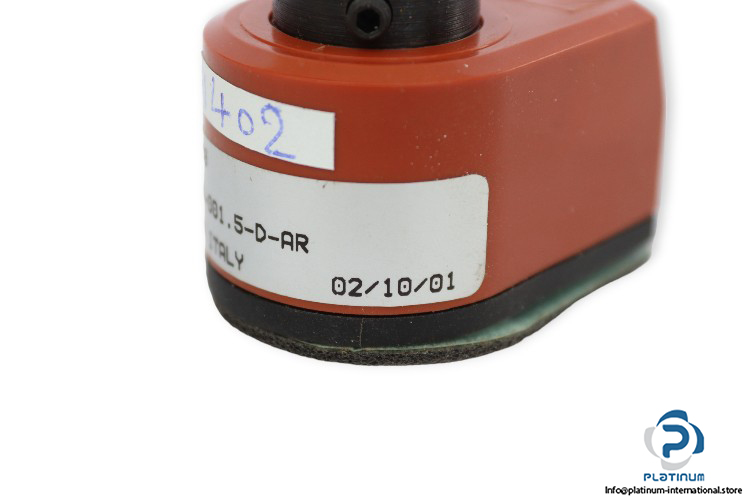

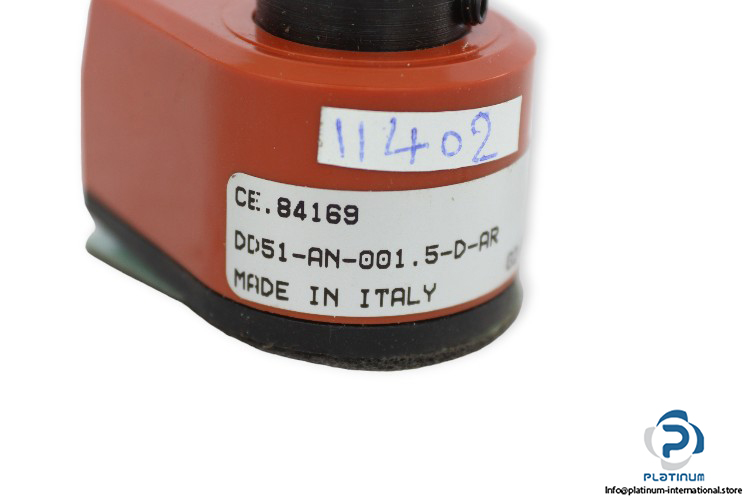

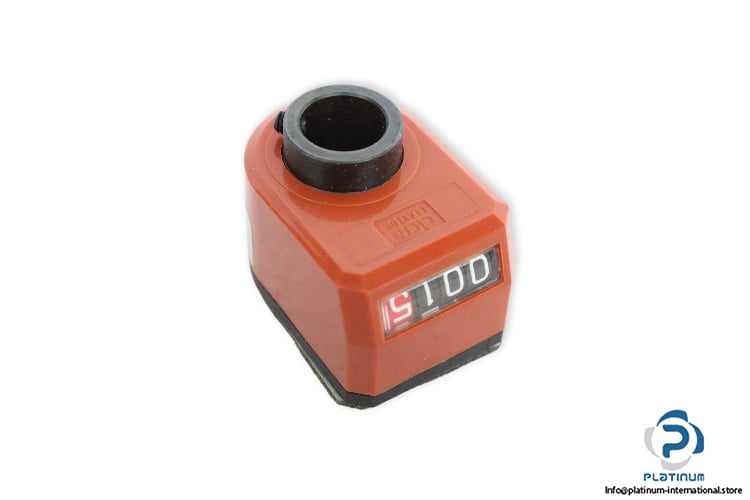

Elesa DD51-AN-001.5-D-AR Mechanical Position Indicators Counter

Manufacture: Elesa
Type: Mechanical Position Indicators Counter
Model: DD51AN001.5DAR
Part No.: CE.84169
Series: DD51

Features and Applications: can be assembled on passing through spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications
Count digits: 4 digits
Display Position: AN
Reading of the counter after one revolution: 001.5
Speed: 1500 rpm
Pitch: 1.5
Direction of Rotation: clockwise. Increasing values with clockwise rotation of the boss
Display: inclined display, counter in upper position
Dimensions: 38.5 x 47 x 33 mm
