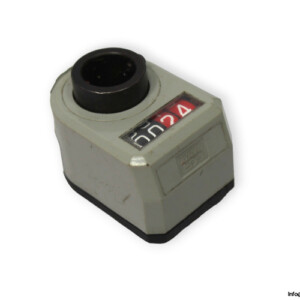

Elesa DD51-FR-00.25-S-GR Mechanical Position Indicators Counter
Manufacture: Elesa Type: Mechanical Position Indicators Counter Model: DD51-FR-00.25-S-GR Part No.: CE.85550 Series: DD51
Manufacture: Elesa
Type: Mechanical Position Indicators Counter
Model: DD51-FR-00.25-S-GR

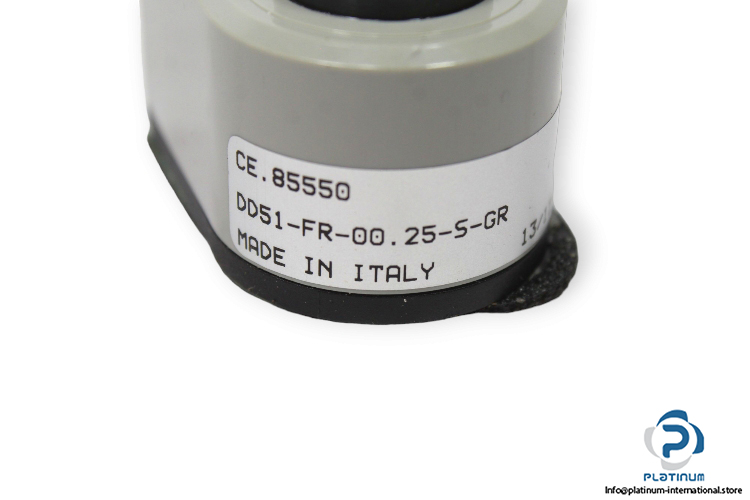

Part No.: CE.85550
Series: DD51
Features and Applications: can be assembled on passing through spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications
Count digits: 4 digits
Display Position: FR
Reading of the counter after one revolution: 00.25
Speed: 1000 rpm
Pitch: 2.5
Direction of Rotation: anti-clockwise. Increasing values with anti-clock wise rotation of the boss

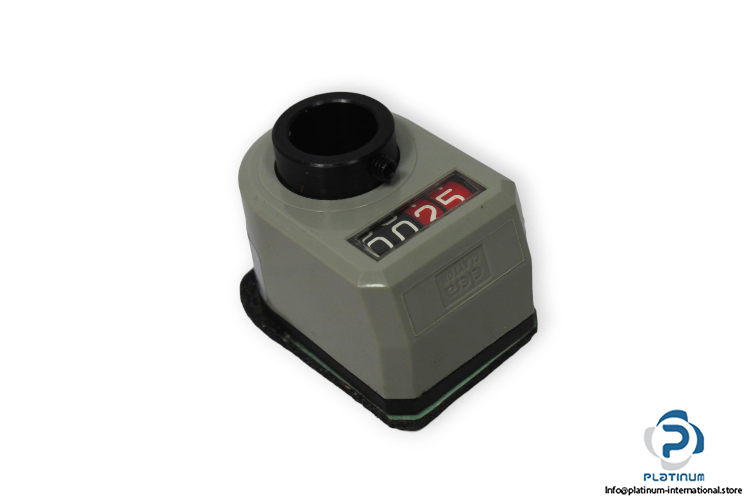

Display: front display, counter in lower position
Dimensions: 38.5 x 47 x 33 mm
