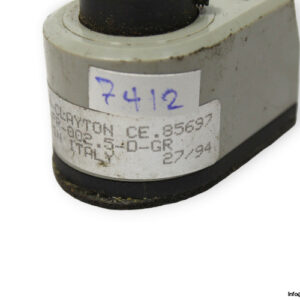

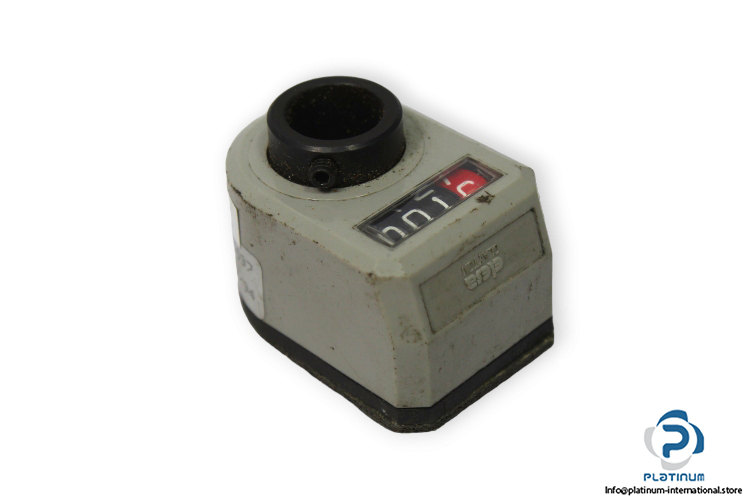

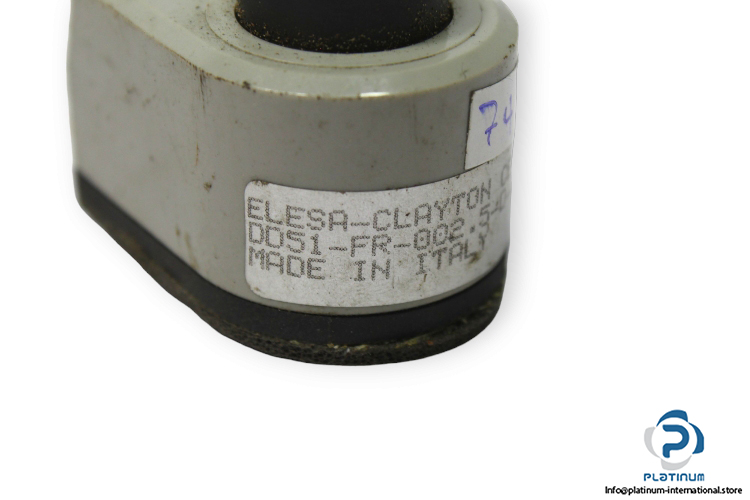

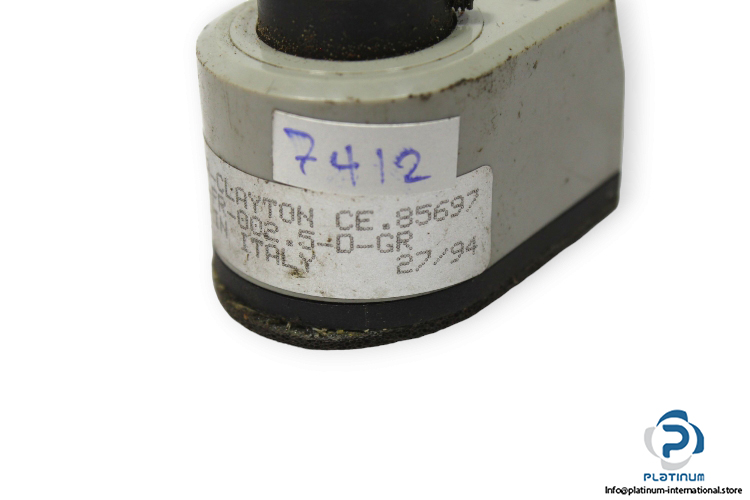

Elesa DD51-FR-002.5-D-GR Mechanical Position Indicators Counter
Manufacture: Elesa Type: Mechanical Position Indicators Counter Model: DD51-FR-002.5-D-GR Part No.: CE.85697 Series: DD51
Manufacture: Elesa
Type: Mechanical Position Indicators Counter
Model: DD51-FR-002.5-D-GR
Part No.: CE.85697
Series: DD51
Features and Applications: can be assembled on passing through spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications
Count digits: 4 digits
Display Position: FR
Reading of the counter after one revolution: 002.5
Speed: 1000 rpm
Pitch: 2.5
Direction of Rotation: clockwise. Increasing values with clockwise rotation of the boss
Display: front display, counter in lower position
Dimensions: 38.5 x 47 x 33 mm
