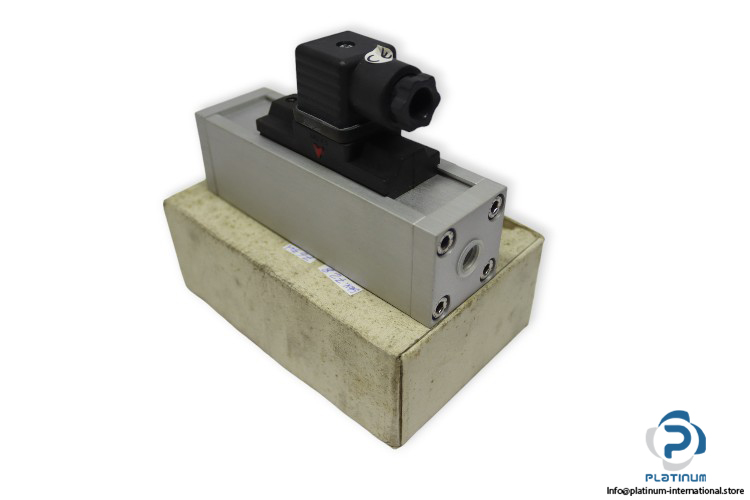

Elettrotec IF3VE6/AM10 Adjustable Electric Flow Switch

Manufacturer: ELETTROTEC
Type: Adjustable electric flow switch

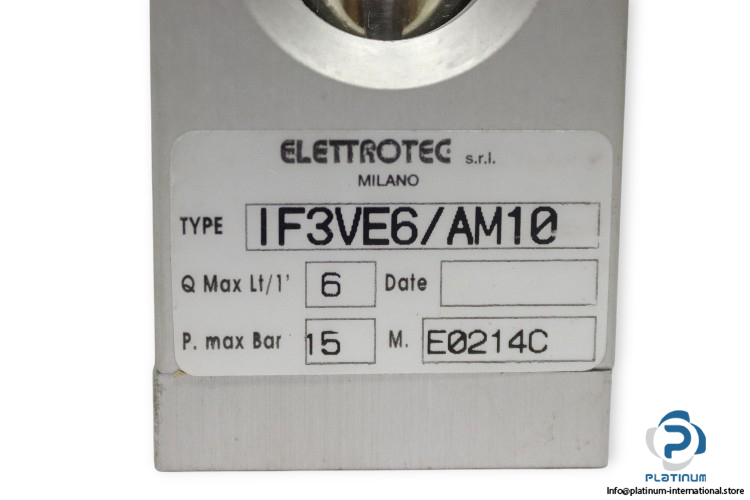

Model: IF3VE6/AM10

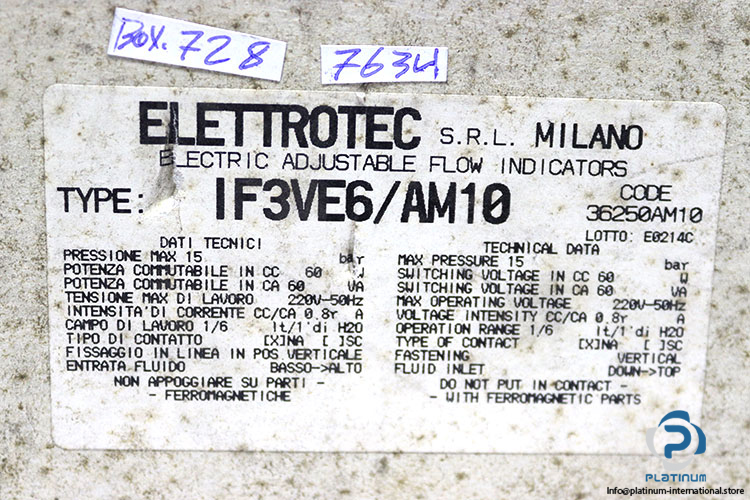

Code no.: 36250AM10

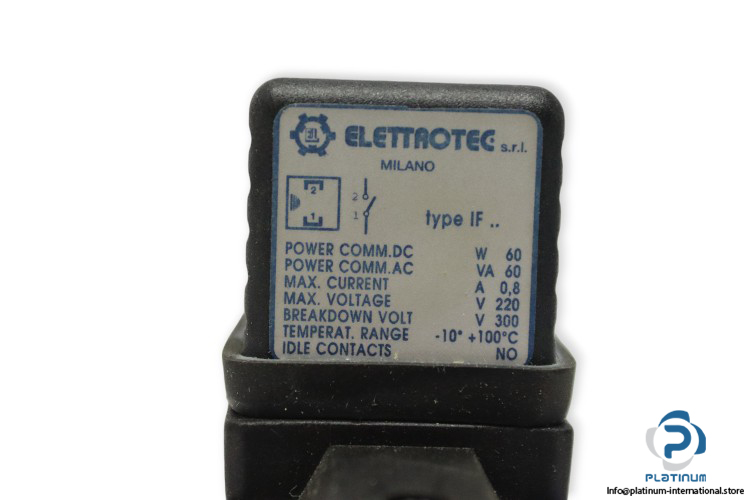

Switching voltage in DC: 60 W
Switching voltage in AC: 60 VA
Max. operating voltage: 220 V-50 Hz
Voltage intensity in DC/AC: 0.8
Breakdown voltage: 300 V
Open contact resistance: 4 Pf
Contact (dry condition): NO (normally open)
C/O contacts (“SC” model): SPDT
Connector: PG09
Electrical protection: IP65
Temperature range: -10°C to +100°C
max flow rate: 6 l/min
Material: Aluminium
Spring: M10
Connection: 1/4″
