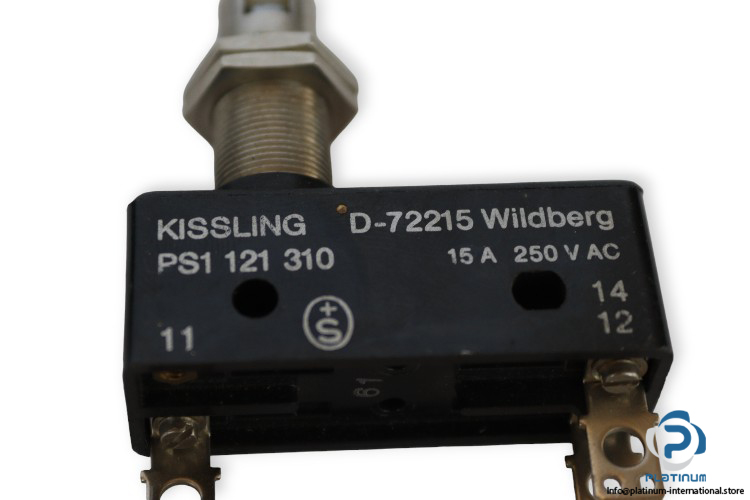

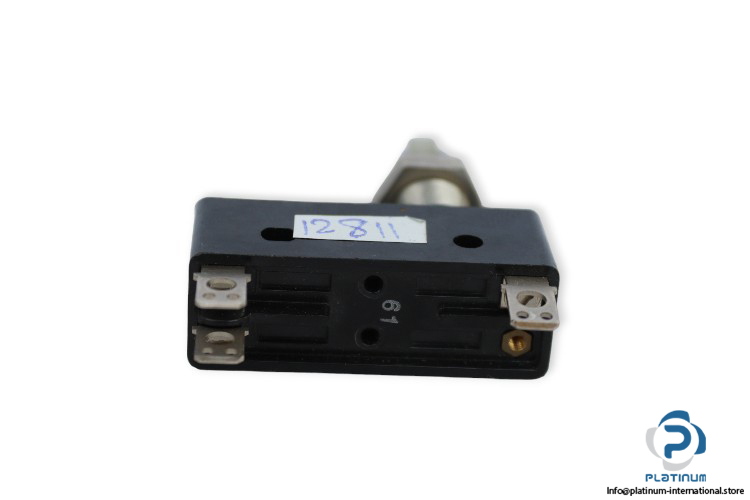

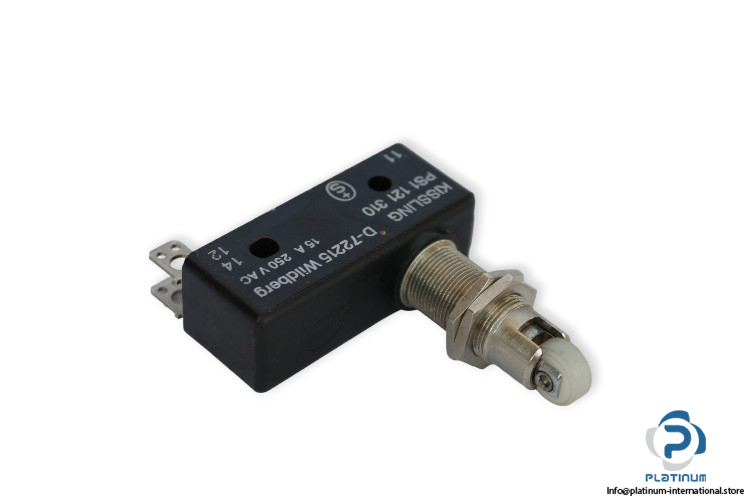

Kissling PS1 121 310 Micro Switch

Manufacturer: KISSLING
Type: Micro Switch
Model: PS1121310

Series: PS1
Applications:
• Automotive Equipment
• General Mechanical Engineering
• Appliance and Industrial Engineering
• Medical Equipment
• Commercial Vehicles
Rated Nominal Voltage: 250 V AC
Rated Continuous Current: 15 A
Frequency: 50 … 60 Hz
Contact: SPDT 1 Changeover (CO)
Nominal Switching Capacity: 12 V DC, 6 mA
Actuator Type: Roller Lever
Material: Thermo Plastic GF
Protection Class: IP40
Temperature: -10 … 85 °C
Dimensions: 19.3 x 49 x 17.5 mm
