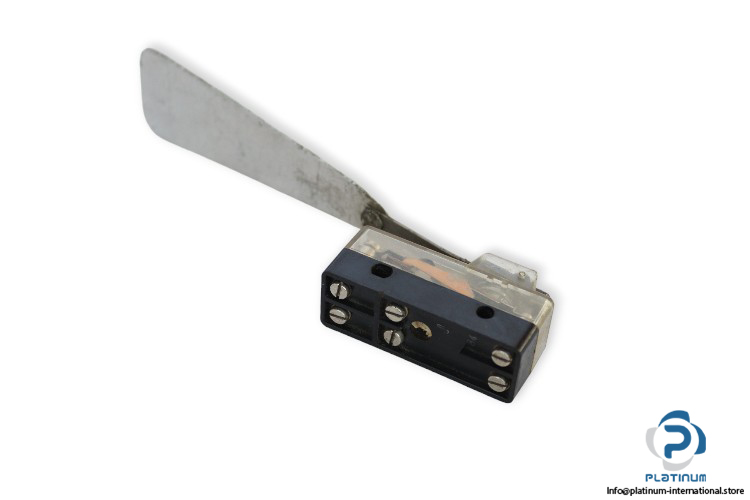

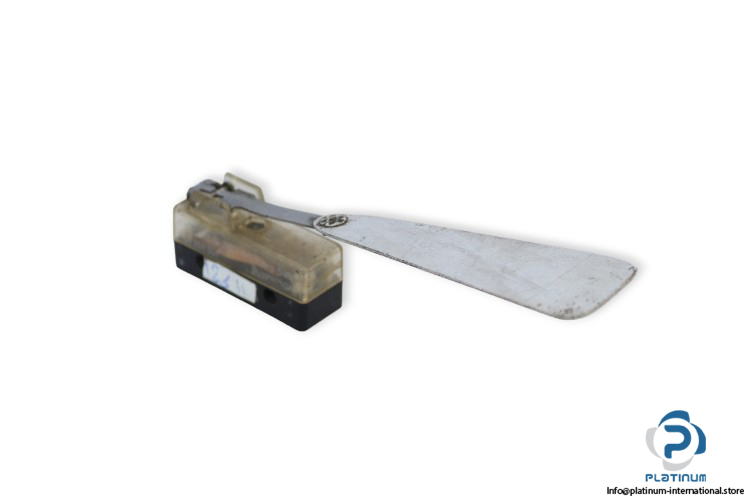

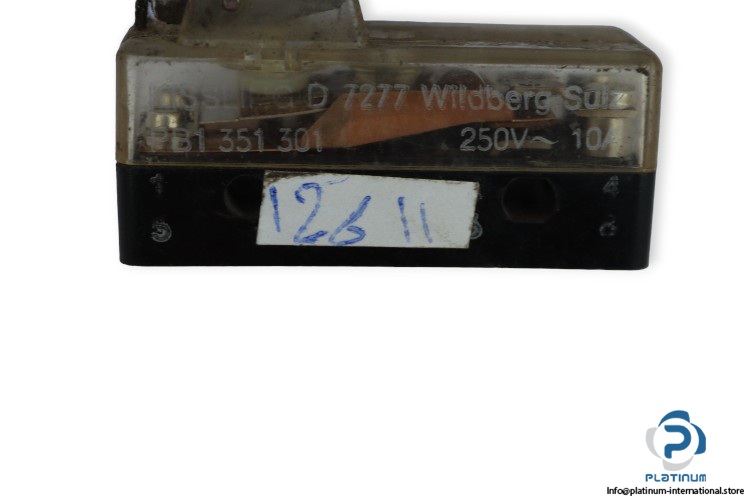

Kissling PB1 351 301 Micro Switch
Manufacture: Kissling
Type: Micro Switch
Model: PB1351301
Series: PB1
Applications:
• Automotive equipment
• General mechanical engineering
• Appliance and industrial engineering
• Medical equipment
• Commercial vehicles
Actuator Type: Lever
Voltage: 250 V AC
Current: 10 A
Contact: 1 Change over contact
Release force: > 2N
Max operating force: < 10N
Current carrying parts: CuZn-alloy
Contact material: Silver alloy or gold plated contacts
Mechanical life: 10mio – 40mio cycles
Frequency: PS 300/min / PB 200/min
Operating speed in direction of plunger: max. 0.5m/sec
Housing Material: Thermoplastic GF
Interior protection: IP40 IEC 60529
Protection terminals: IP00 IEC 60529
Temperature range: -10 … +85°C
Dimensions: 17.5 x 19.3 x 49 mm
