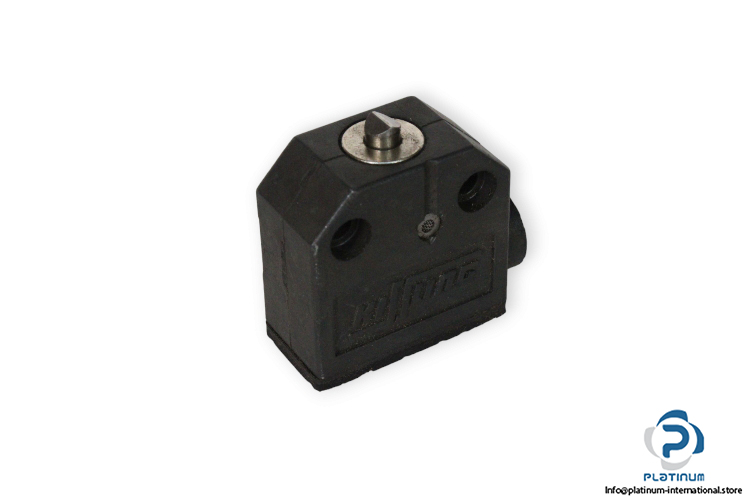

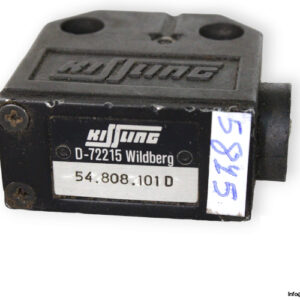

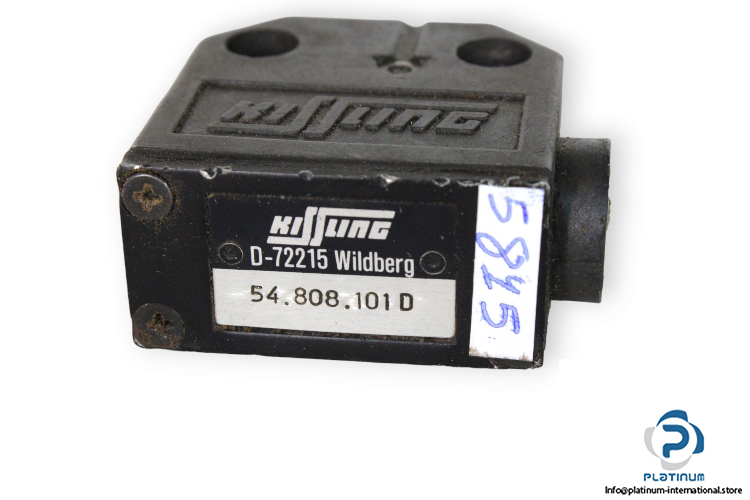

Kissling 54.808.101.D Limit Switch

Manufacturer: KISSLING
Type: Limit Switch
Model: 54.808.101.D

Housing material: aluminium alloy, corrosion resistant
Plunger material: stainless steel, tempered
Ground terminal: M 3
Temperature range: 0°C to + 80°C
Mounting position: optional
Max. actuating speed with approach angle from cam at 30°,
D-chisel and K-ball: 20 m/min
Max. actuating speed with approach angle from cam at 30°, R-roller: 30 m/min
Repeatability of actuating point from cycle to cycle: ± 0.02 mm
Switching rate max.: 200/min
Operating force: < 10 N
Pre-travel: < 0.6 mm
Movement differential: 0.05 to 0.2 mm
Nominal voltage: 250 VAC
Continuous current: 6 A
Function: Snap-action switch, change-over
