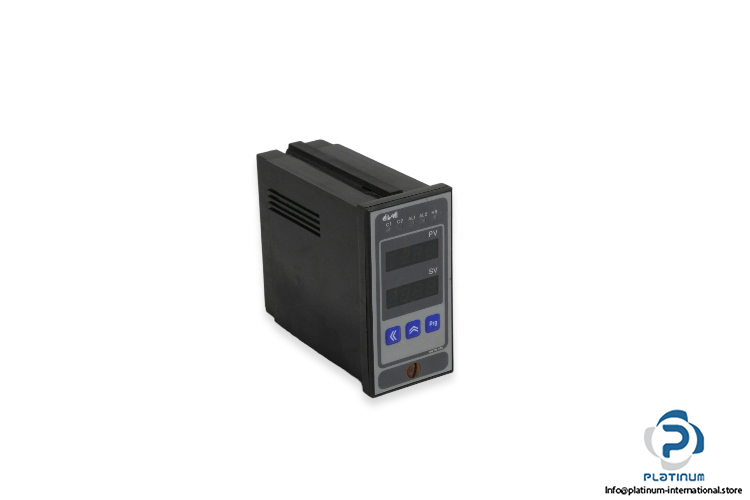

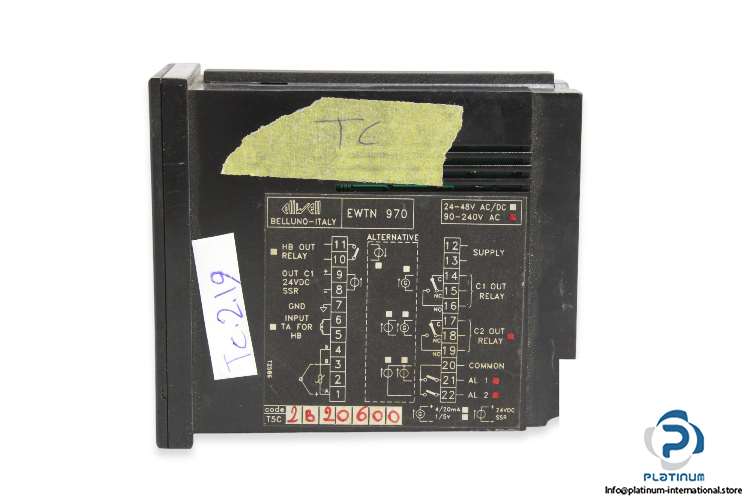

Eliwell Ewtn 970 Programmable Digital Controller

Manufacturer: Eliwell

Type: Programmable Digital Controller

Model: EWTN 970

Part No.: T5C2B20600

Power Supply Voltage: 90 … 240 V AC / 24 … 48 V AC/DC

Input

Voltage: 0/1 … 5 V

Current: 0 /4 … 20 mA

Output

Main output C1: 1 SPDT relay rated 6(2)A 250 VA or static (SSR) relay rated 24 V DC/ 25 mA

Secondary output C2 (optional): 1 SPDT relay rated 6(2)A 250VA or static (SSR) relay rated 0/24 V DC /25 mA

Heater breaker output (optional): 1 (N.O) relay output rated 6(2)A 250 VAC or static (SSR) relay 0/24 V DC/25 mA

Alarms (optional): 2 (N.O) relay outputs rated 6(2)A 250 V AC or static relays (SSR) rated 0/24 Vcc/25 mA

Ambient Temperature: 0 … 50 ºC

Dimensions: 48 x 96 x 100 mm
