Eltra EC34A1000Z5L00P2 Incremental Encoder
Used
In stock9 unitsReady to ship
Incremental Encoder
ELTRA EC34A.1000Z5L00P2 incremental encoder with 1000 PPR resolution, RS-422 line driver interface, 5 V DC supply, and IP64 protection for industrial motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

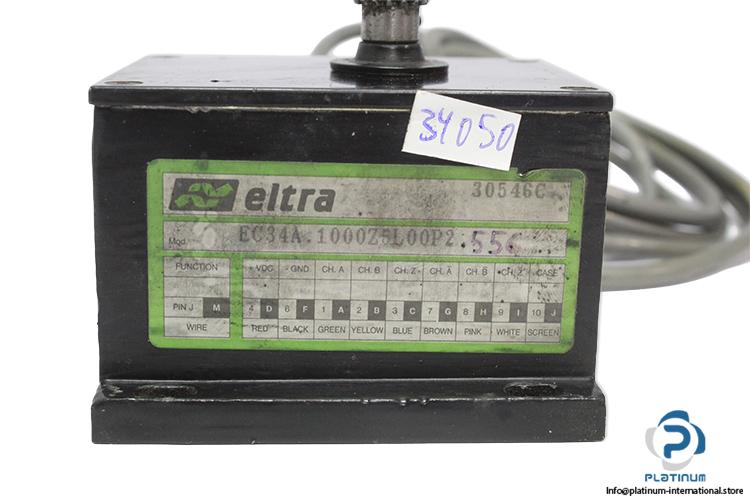

ELTRA EC34A.1000Z5L00P2 Incremental Encoder
The ELTRA EC34A.1000Z5L00P2 is a high-precision incremental encoder from the EC series, designed for accurate position and speed feedback in industrial automation systems. It features a robust construction, reliable RS-422 line driver interface, and stable signal output for motion control applications.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EC34A.1000Z5L00P2
Series: EC
Part No.: 30546C
| Power Supply | 5 V DC |
| Electronic Interface | Line Driver RS-422 |
| Resolution | 1000 PPR |
| Shaft Diameter | 10 mm |
| Max Output Frequency | 220 kHz |
| Enclosure Rating | IP 64 (IEC 60529) |
| Max Rotation Speed | 3000 rpm |
| Max Shaft Load | 200 N |

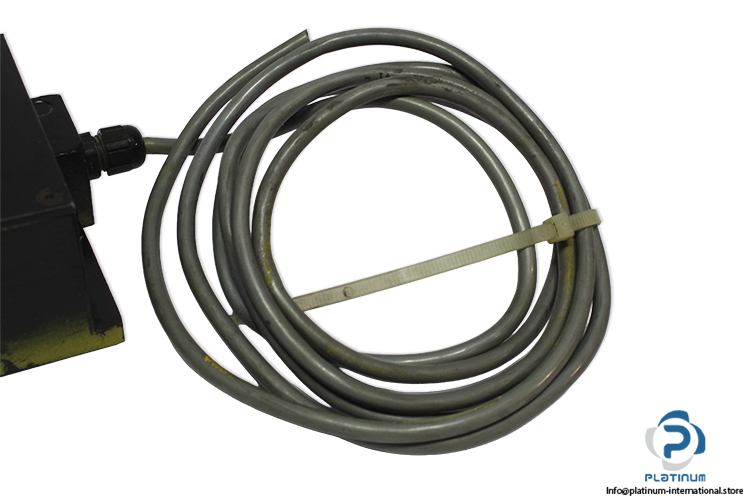

| Output Type | Cable (Standard Length 1.5 m) |
| Operating Temperature | -20 / +70 °C |
