Eltra EH63D1000S5L9X6MA.272 Incremental Encoder
INCREMENTAL ENCODER “ EH63D SERIES

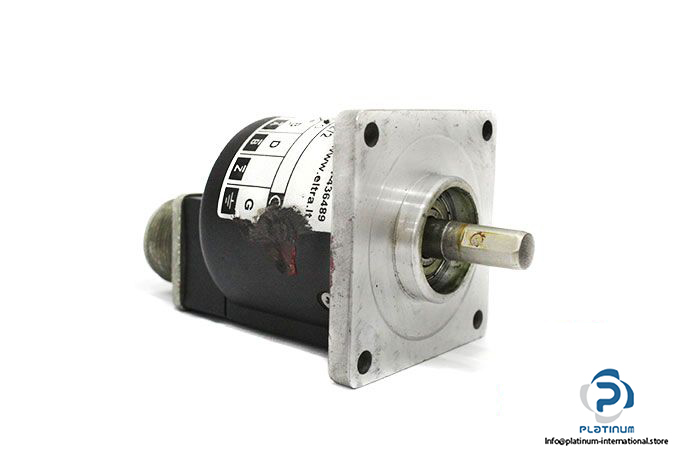

ELTRA EH63D.1000S5L9X6MA.272 is a 1000 ppr incremental encoder with stainless steel shaft, IP54 enclosure, and 6000 rpm max speed, ideal for precision automation.ELTRA EH63D INCREMENTAL ENCODER “ MODEL EH63D.1000S5L9X6MA.272
The ELTRA EH63D series incremental encoder is engineered for high precision, speed, and durability in industrial automation systems. With robust materials, IP54 protection, and excellent signal accuracy, this encoder ensures optimal performance in demanding environments.
Manufacturer: ELTRA
Type: Incremental Encoder
Series: EH63D

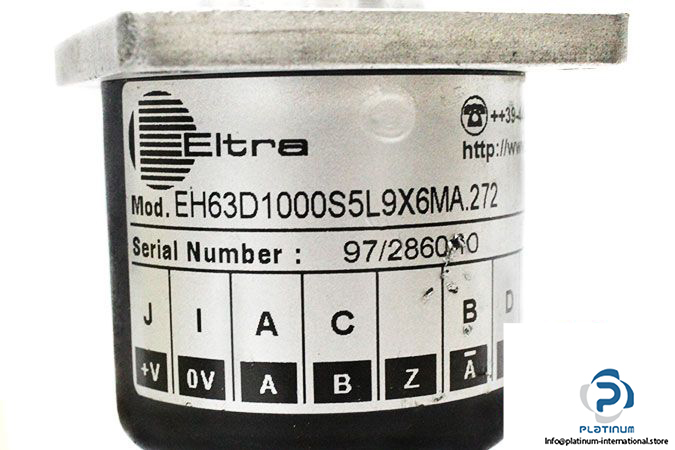

Model: EH63D.1000S5L9X6MA.272
Part No.: 97/2860/10
| Body Dimension | 63 mm |
| Power Supply | 5Vdc / 8 ÷ 24 Vdc |
| Resolution | 1000 ppr |
| Zero Pulse | With |
| Speed | 6000 rpm |
| Shaft Diameter | 9.52 mm (3/8) |

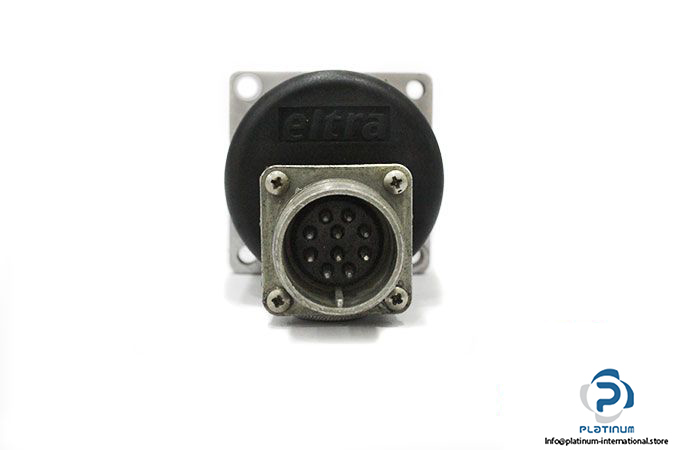

| Connector | MS3106E 16S-1S or 18-1S |
| Shaft Material | Stainless Steel AISI303 |
| Body Material | Aluminum UNI 5076 |
| Housing Material | PA 66 reinforced with fiberglass |
| Enclosure | IP54 |
