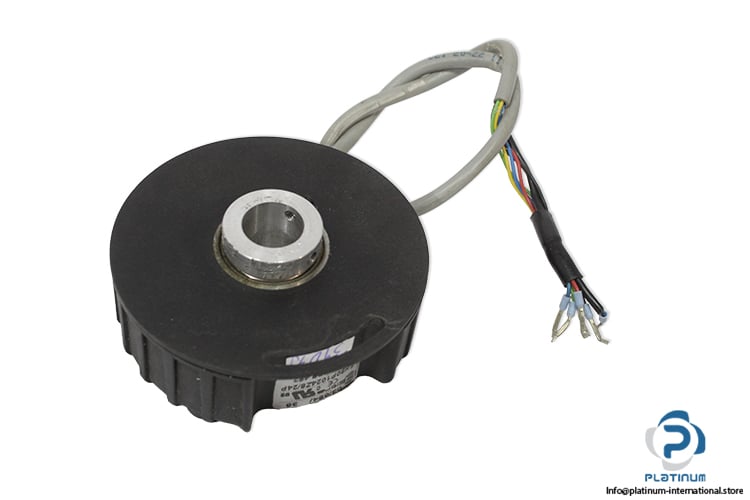

Eltra EH80P1024Z8/24P B15X3PR.482 Incremental Encoder
Used
In stock2 unitsReady to ship
311,11$
Incremental Encoder
ELTRA EH80 series incremental encoder with 1024 pulses, push-pull output, and 15 mm through hollow shaft. Designed for precise feedback control in AC servo motor systems and industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
ELTRA EH80P1024Z8/24PB15X3PR.482 Incremental Encoder
The ELTRA EH80P1024Z8/24PB15X3PR.482 is a high-precision incremental encoder designed for feedback control systems of AC servo motors and industrial automation applications. Built with a through hollow shaft configuration, this encoder ensures accurate position and speed measurement in demanding industrial environments.
Manufacturer: ELTRA
Type: Incremental Encoder

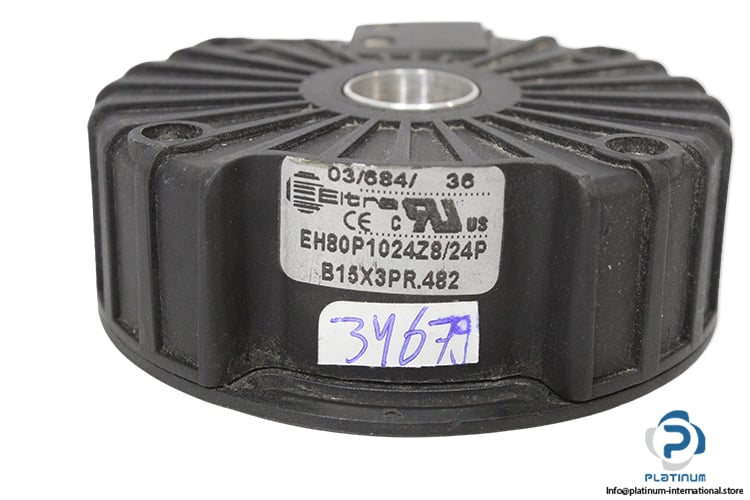

Model: EH80P1024Z8/24PB15X3PR.482
Code: 03/684/36
Series: EH80
| Pulse | 1024 |
| Input Voltage | 30V DC max |
| Shaft Size | 15 mm Hollow Shaft |
| Protection Class | IP 54 |
| Max Rotation Speed | 3000 rpm |
| Max Output Frequency | 105 kHz |
| Power Draw Without Load | 800 mW max |
| Max Load Current | 20 mA / Channel |
| Output Type | Radial |
| Operating Temperature | -20° ... +85 °C (-4° ... +185°F) -20° ... +100°C (-4° ... +212°F) on demand |
| Encoder Type | Push Pull (Complementary Transistor) |
| Application | Encoder for Feedback Control Systems of AC Servo Motors |
| Shaft Design | Through Hollow Shaft |
| Shaft Material | Stainless Steel |
| Housing Material | Glass Fiber |
