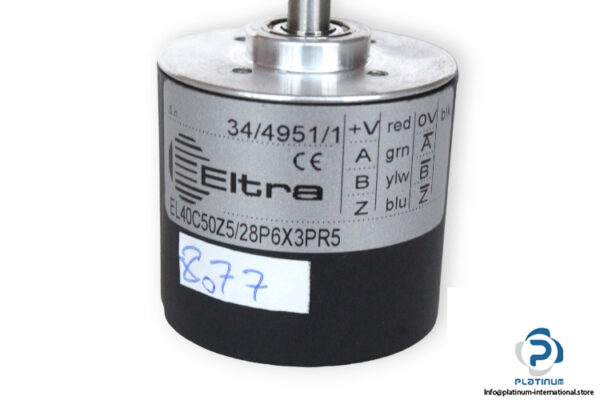

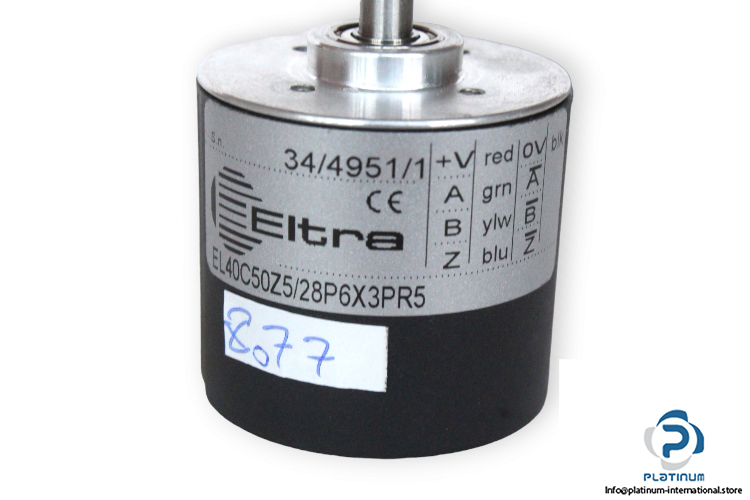

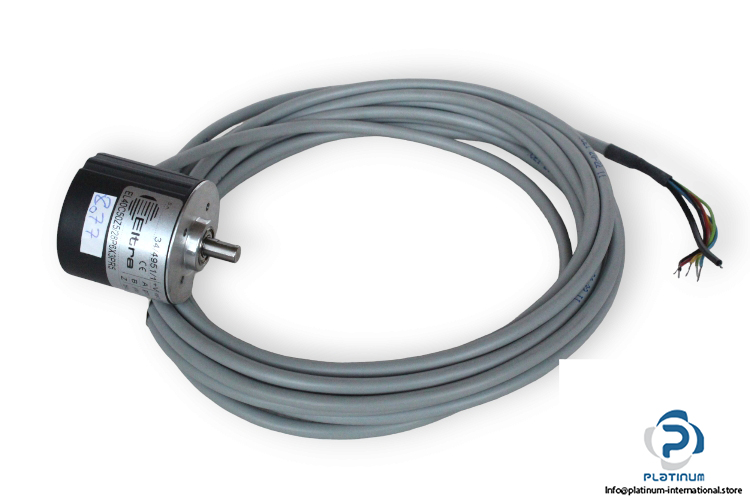

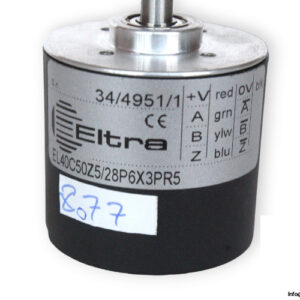

Eltra EL40C50Z5/28P6X3PR5 Incremental Encoder

Manufacture: Eltra
Type: Incremental encoder
Model: EL40C50Z528P6X3PR5
Part No.: 34/4951/1

Power supply: 5 … 28 V DC
Principle of operational: Incremental
Shaft type: solid shaft
Mounting type: clamping flange
Electronic interface: push pull
Special features: miniaturized
Resolution: 50 ppr
Shaft diameter: 6 mm
Enclosure rating: IP54
Max Rotation speed: 3000 rpm
Output type: cable
Direction type: radial
Construction size (diam): 42 mm
Max output frequency: 150 kHz
Operating temperature: -10 … +60°C
Cable length: 5m
Measurement type: rotary
Type of sensor: optical
